FLOWER HP

32 W 4 in 1 RGBW Highpower LED Effect

Item no.: CLFLOWERHP

Guarantee: 24 months

EAN: 4049521176555

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:LIGHT FX

Item highlights:

  • 1 x 32 Watt RGBW 4 in 1 High Power LED
  • Low power consumption
  • Power in/out for daisy chaining
  • Operated via DMX, in master/slave mode or standalone mode
  • Integrated microphone for sound control
  • Simple to operate using the four buttons and LED display
  • Rugged metal housing
  • Universal mounting bracket included

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type
LED Lighting Effects
Type
LED Effect Lights
Colour spectrum
RGBW
Number of LEDs
1
LED type
32 W 4 in 1
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
2-channel, 5-channel
DMX Functions
Strobing fast & slow, Counter clockwise fast & slow, No rotation, Dimmer, Clockwise fast & slow, Colour selection
Standalone modes
sound control, Auto run
Controls
Value Up, Value Down, Enter, Mode
Indicators
LED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
40 W
Power supply connector
IEC power connector male, IEC power connector female
Housing material
Metal
Cabinet colour
Black
Cooling
Convection
Width
250 mm
Height
240 mm
Depth
177 mm
Weight
3,3 kg

Description

FLOWER HP

The Cameo MOONFLOWER HP produces over 150 sharp, closely focused light beams for a stunning and space-filling lighting effect. A particularly powerful and durable 32 Watt Quad LED provides natural RGBW colours with high intensity. The convection- cooled device works almost noiselessly, and the usage time is virtually unlimited thanks to extremely low heat generation.

The MOONFLOWER HP can be operated in 2 or 5-channel DMX mode with features such as dimmer, strobe and rotation effects or as master, slave and standalone. To this end, automated programs and a microphone for sound control are integrated; the operation is simple and convenient via four buttons and a bright LED display.

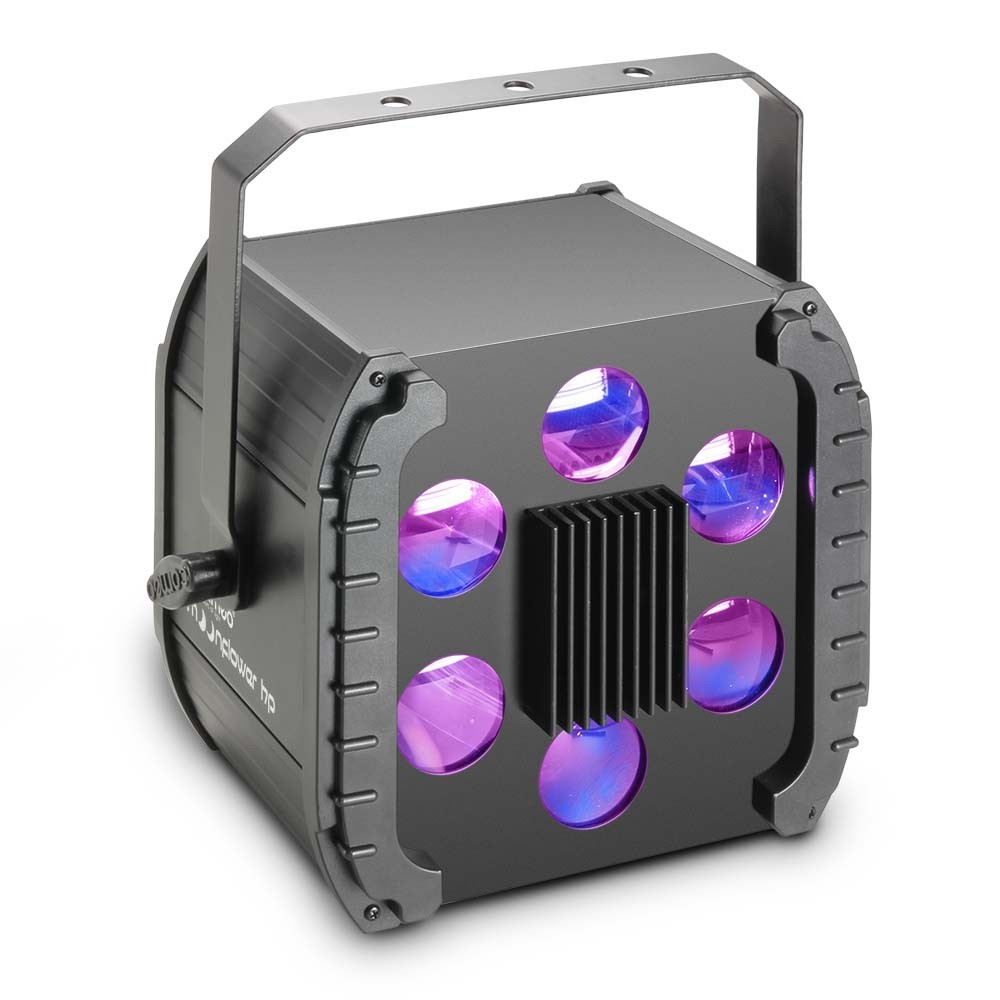

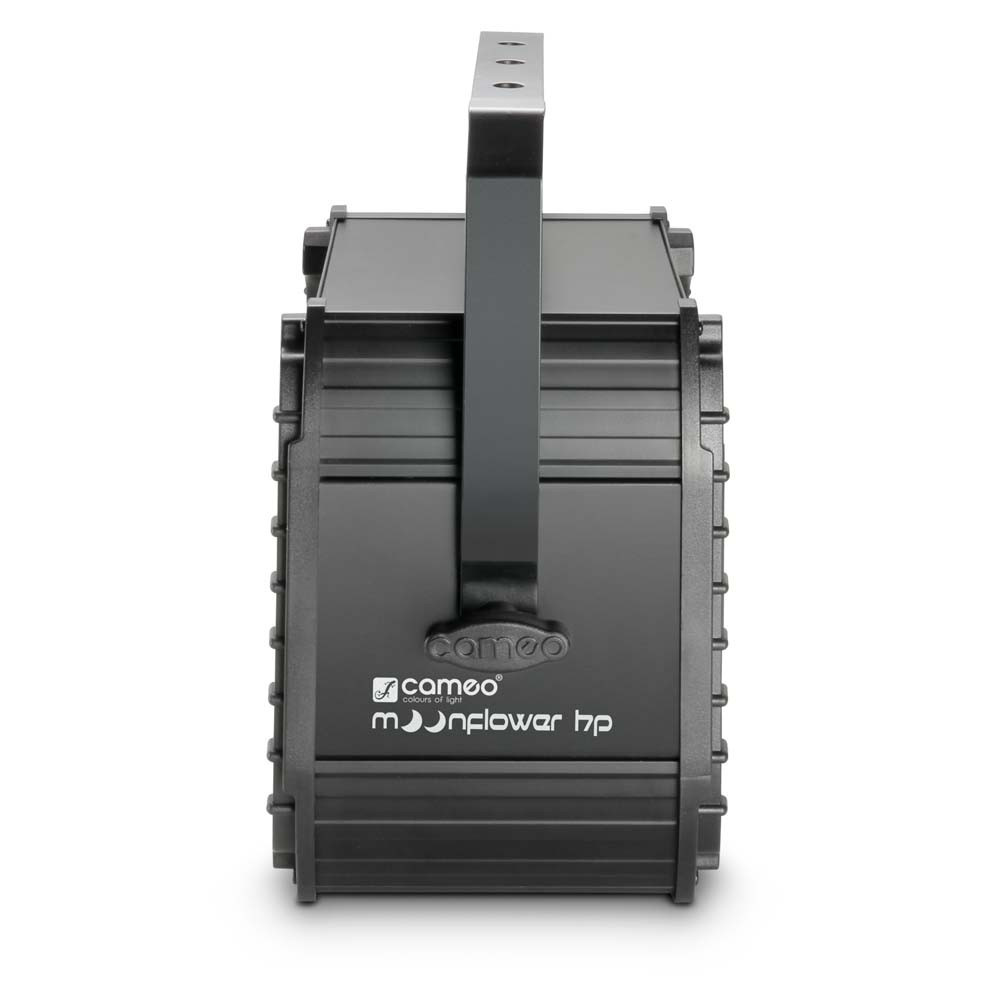

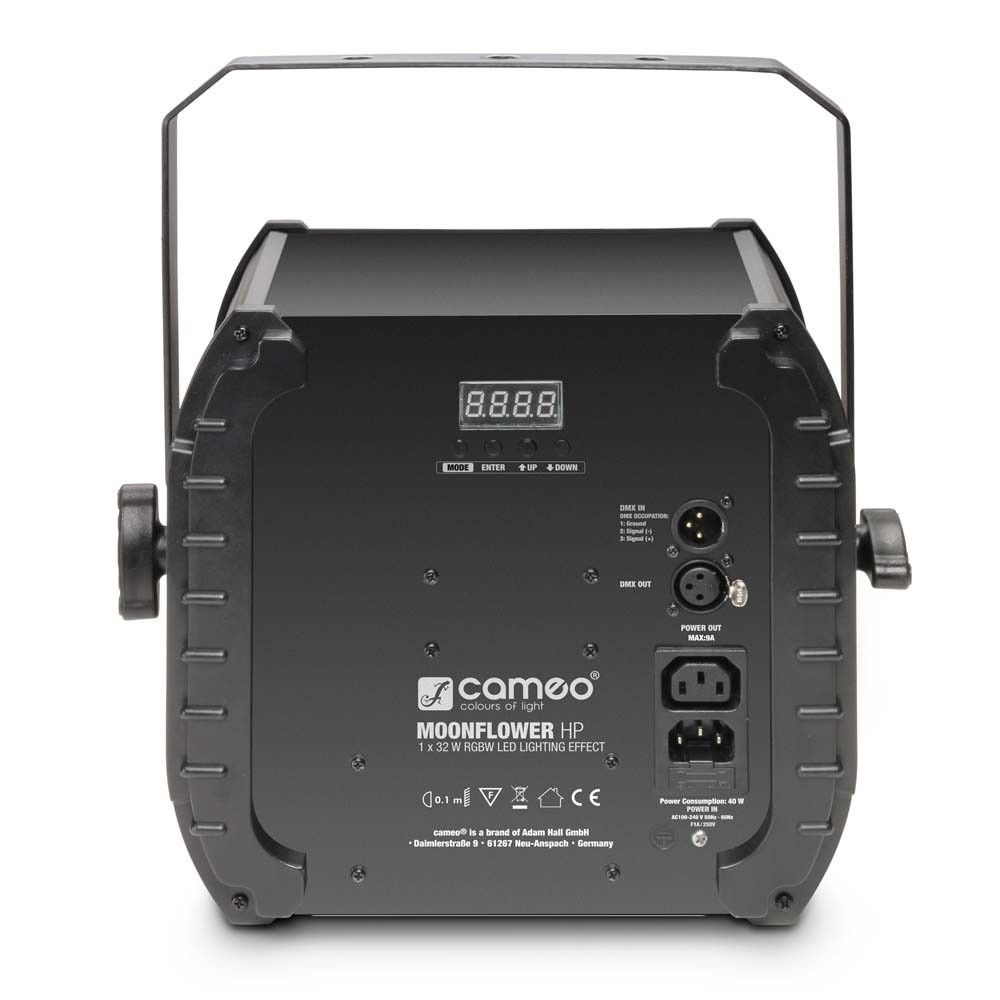

The sturdy black metal housing with an adjustable universal mounting bracket is equipped with 3-pin XLR connectors for input and looping of the DMX signal; IEC input and output sockets allow for parallel power supply of daisy chained devices. The Cameo MOONFLOWER HP is characterised not least by a low power consumption and works with all mains voltages from 100 to 240 volts.

Videos for this item

Downloads

Manuals
Data Sheets & Specifications
Presets, Libraries & Settings
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Certificates & Declarations
Display all
Name
Type
Format
File size
CLFLOWERHP User Manual User Manual.pdf1.04 MB
CLFLOWERHP Quick Start Guide CAMEO GearbagtableQuick Start Guide.pdf53.74 KB
CLFLOWERHP Ecolabel Ecolabel.pdf1.99 MB
Cameo REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
Cameo RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
CLFLOWERHP DMX Control Table DMX Control Table.pdf35.81 KB
CLFLOWERHP Fixture Library Daslight Fixture Library Daslight.zip9.34 KB
CLFLOWERHP 2D Drawing 2D Drawing.DWG783.14 KB
CLFLOWERHP 2D Drawing 2D Drawing.PDF352.21 KB
Cameo Catalogue / Brochure CAMEO Brand FlyerCatalogue / Brochure.pdf387.56 KB
Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
Cameo Catalogue / Brochure CAMEO 2024Catalogue / Brochure.pdf11.97 MB
