37601 S

37601 S

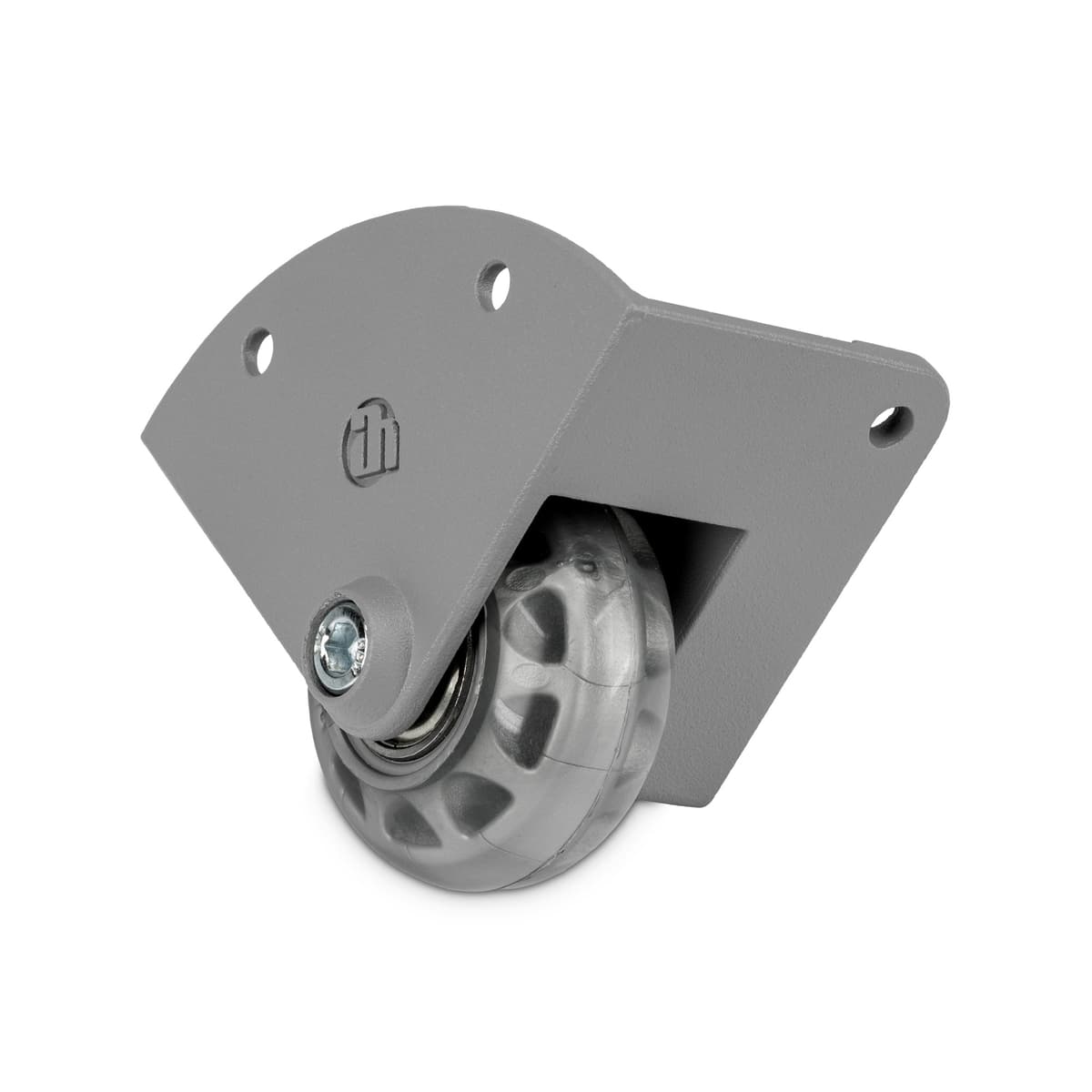

Corner Castor with 48 mm Wheel in Aluminium Die-Cast Housing, cranked

Artikel Nr.: 37601S

Garantie: 24 Monate

EAN: 4049521448249

Staffelung: 1

Einheit: Stück

Verpackungseinheit: 120

Artikel Highlights:

  • 48 mm wheel PU / PP, Shore A hardness 82°
  • With ball bearings
  • Die-cast aluminium housing
  • Mounting holes 5.1 mm
  • 100 kg load capacity per 2 rollers
  • Smooth-running and quiet

Spezifikationen

Product type
Castors
Type
corner-mount castor
Wheel diameter
48 mm
Height
18 mm
Offset
Yes
Construction
swivel castor w/o brake
Cabinet material
Die-cast aluminium
Material thickness
3 mm
Wheel material
Polyurethane
Wheel colour
transparent
Bearing type
ball bearing
Load capacity per set ( 2 rolls )
100 kg
Set consists of
2 pcs.
Mounting hole diameter
5.1 mm
Width wheel rim
24 mm
Width tread
5 mm
Weight
0,135 kg
Other features
low-noise, non-marking

Beschreibung

37601 S

This corner castor has a ball-bearing wheel with a tread of transparent PU on a PP core in a die-cast housing made of aluminium. The wheel has a load capacity of up to 100 kg (for a set consisting of two wheels).

Ersatzteile

37600SWH
48mm Räder für 37600S
