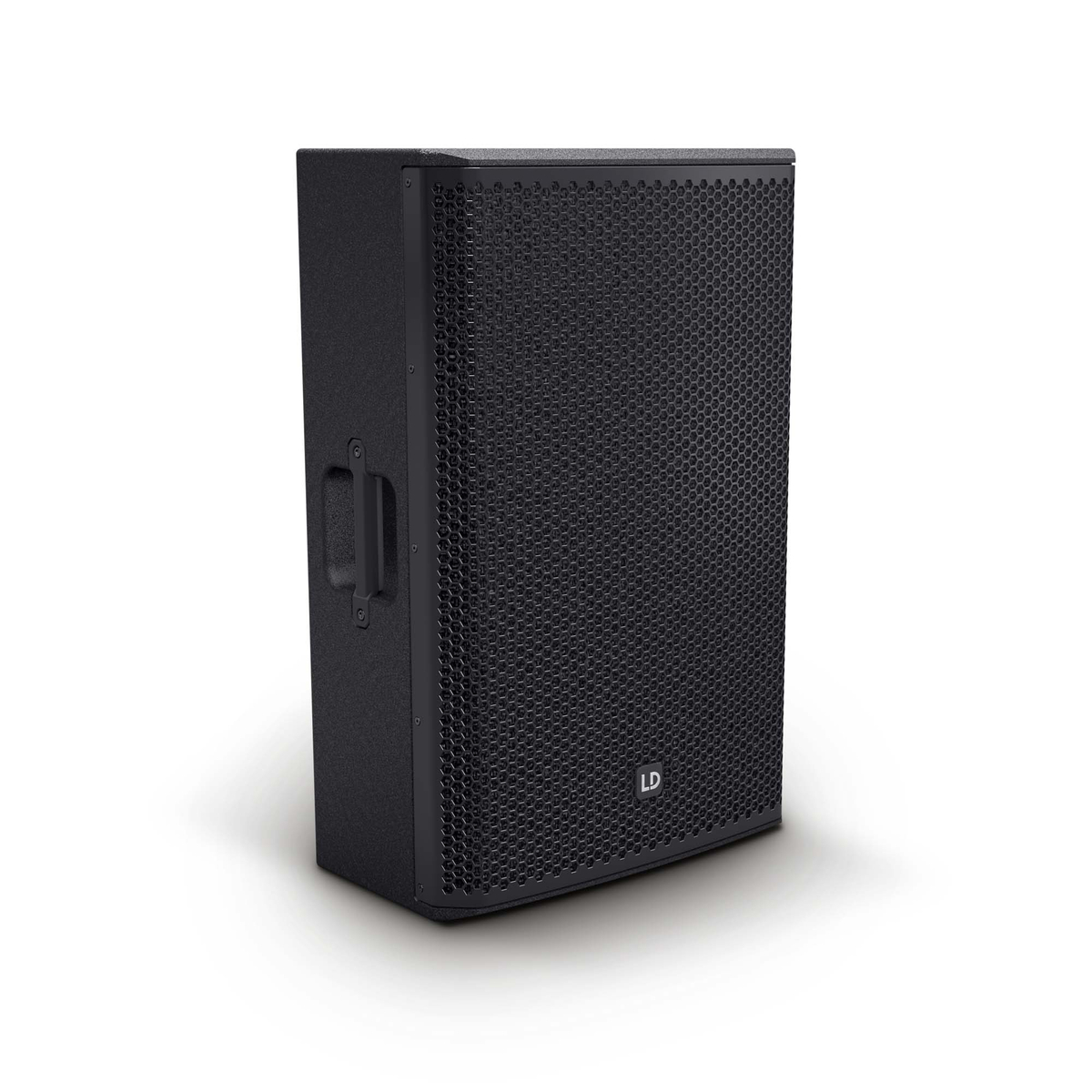

STINGER 15 A G3

STINGER 15 A G3

Active 15" 2-way bass-reflex PA Loudspeaker

Artikel Nr.: LDEB152AG3

Garantie: 24 Monate

EAN: 4049521206788

Staffelung: 1

Einheit: Stück

Verpackungseinheit: 1

Serie:STINGER G3

Ausführungen:

Artikel Highlights:

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER® 15 A G3 is powered by a highly efficient Class-D amplifier with an impressive 500-watt continuous output. The specially developed 15" woofer and a BMS tweeter driver achieve a deep bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion.

LD Systems’ proprietary DynX® DSP technology means that the STINGER® 15 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 15 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Spezifikationen

Rodzaj produktu
głośnik PA
Typ
Aktywny
Wielkość głośnika niskotonowego
15 ", 381 mm
Magnes głośnika niskotonowego
ferrytowy
Marka głośnika niskotonowego
na zamówienie
Cewka drgająca głośnika niskotonowego
3 ", 76,2 mm
Tuba
BEM zoptymalizowane CD Horn
Wielkość głośnika wysokotonowego
1 ", 25,4 mm
Magnes głośnika wysokotonowego
ferrytowy
Marka głośnika wysokotonowego
BMS
Cewka drgająca przetwornika wysokotonowego
1 ", 25,4 mm
Wzmacniacz
Klasa D
Kąt emisji dźwięku (poziom x pion)
90 x 50 °
Moc (RMS)
500 W
Moc (szczytowa)
1000 W
Charakterystyka częstotliwościowa
50 - 20000
Maks. SPL (szczytowy)
133 dB
Wyłączniki ochronne
Prąd przetężeniowy, Przegrzanie, Przepięcie, Limiter wielopasmowy
Czułość wejściowa
45 dBu
Elementy obsługi
2 x Mic/Line, 2 x Gain, Mode
Wskaźniki
Mic, Limit, On, Protect (aktywne wyłączniki ochronne), Mode, Signal
Wejścia liniowe
2
Przyłącza wejścia liniowego
XLR, gniazdo jack 6,3 mm
Wyjścia liniowe
1
Przyłącza wyjścia liniowego
XLR
Zasilanie
zasilacz impulsowy, 100–120 V/50–60 Hz lub 200–240 V/50–60 Hz (automatyczne przełączanie)
Temperatura pracy
0 - 40 °C
Względna wilgotność powietrza
< 80% (bez kondensacji)
Materiał obudowy
sklejka, 15 mm
Powierzchnia obudowy
poliuretan
Rodzaj konstrukcji obudowy
Bass-reflex
Kąt nachylenia monitora
54 °
Szerokość
480 mm
Wysokość
737 mm
Głębokość
455 mm
Waga
26,8 kg

Zubehör

Ersatzteile

LDEB152G3X
Frequenzweiche für LDEB152G3
Loading...
LDEB152G3GR
Gitter für LDEB152G3 / LDEB152AG3
Loading...
LDEBG3HORN
Hornaufsatz 90° x 50° für Fullrange Lautsprecher
Loading...
SM 7 DT
SM7DT
Dual-tilt Flansch (0°/5°)
Loading...
