Rivets Aveugle pour Matériaux Souples 4,8 x 21 mm

Artikel Nr.: 55944821

EAN: 4049521902949

Staffelung: 2000

Einheit: Stück

Verpackungseinheit: 2000

Ausführungen:

Artikel Highlights:

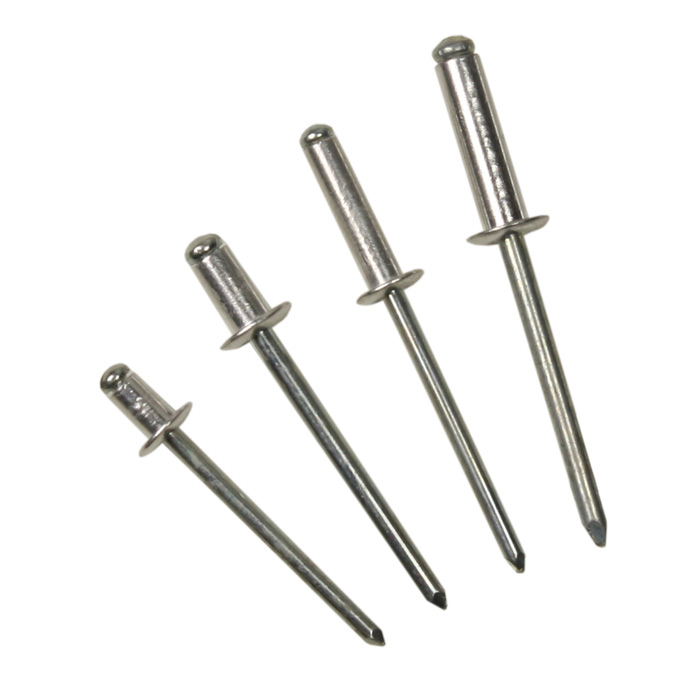

BLIND RIVETS FOR SOFT MATERIALS (ALUMINIUM)

This fixing ensures a secure and tight connection in soft materials. Therefore also particularly effective when used with materials such as plastic or wood.

The Bralo for soft materials is a mandrel break blind rivet This rivet is particularly suitable for materials that are soft or brittle, because the mandrel break load is controlled. It provides exceptional clamping force. A 3.5% aluminium-magnesium alloy gives increased tensile and shear forces.

Other rivet versions for special applications and requirements available in the shop.

Spezifikationen

Type de produit
Visserie
Type
Rivets
Ø rivet
4,8 mm
Longueur rivet
21 mm
Ø tête
9,5 mm
Hauteur tête
1,4 mm
Ø tige
2,73 mm
Portée fixation
14 - 17 mm
Charge maximale cisaillement
2000 N
Passage de la charge admissible
2700 N
Matériau rivet
Aluminium
Alliage rivet
AlMg 3,5
Matériau tige
Acier
Revêtement tige
brut
Poids
0,003 kg
