NL2MPXX

NL2MPXX

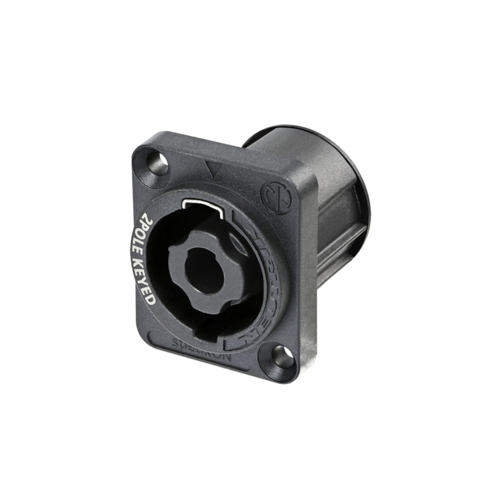

speakON® chassis connector 2-pole male Neutrik®

Item no.: NL2MPXXSB

Guarantee: 12 months

EAN: 7613187012846

Sliding scale: 1

Unit: Piece

Packaging unit: 500

Versions:

Item highlights:

  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Specifications

Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
2
Gender
male
Contacts
copper
Connection type
Flat tabs
Housing
polyamide
Width
26 mm
Height
31 mm
Depth
25.75 mm
Weight
0,012 kg

Description

NL2MPXX

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
