Item no.: CLCL200G2
Guarantee: 24 months
EAN: 4049521606748
Sliding scale: 1
Unit: Piece
Packaging unit: 2
Series:CL 200
Item highlights:
- Spotlight with 200W white COB LED
- Colour temperature adjustable from 3,200 - 7,800 K
- 12,000 lm luminous flux, 32,000 lx @ 1 m
- Flicker free, ideal for motion picture and TV applications
- DMX control, master/slave and standalone capability
- 30 Hz high-speed strobe function
- 4-button LCD display for easy configuration
- Ready for daisy chaining and power linking
Features
COB LED technology
The current “chip-on-board” multi-LEDs allow dense, large-area light sources to be created that are characterised by their high luminosity and wide range of even colours. Cold white According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.
Specifications
Description
CL 200 G2

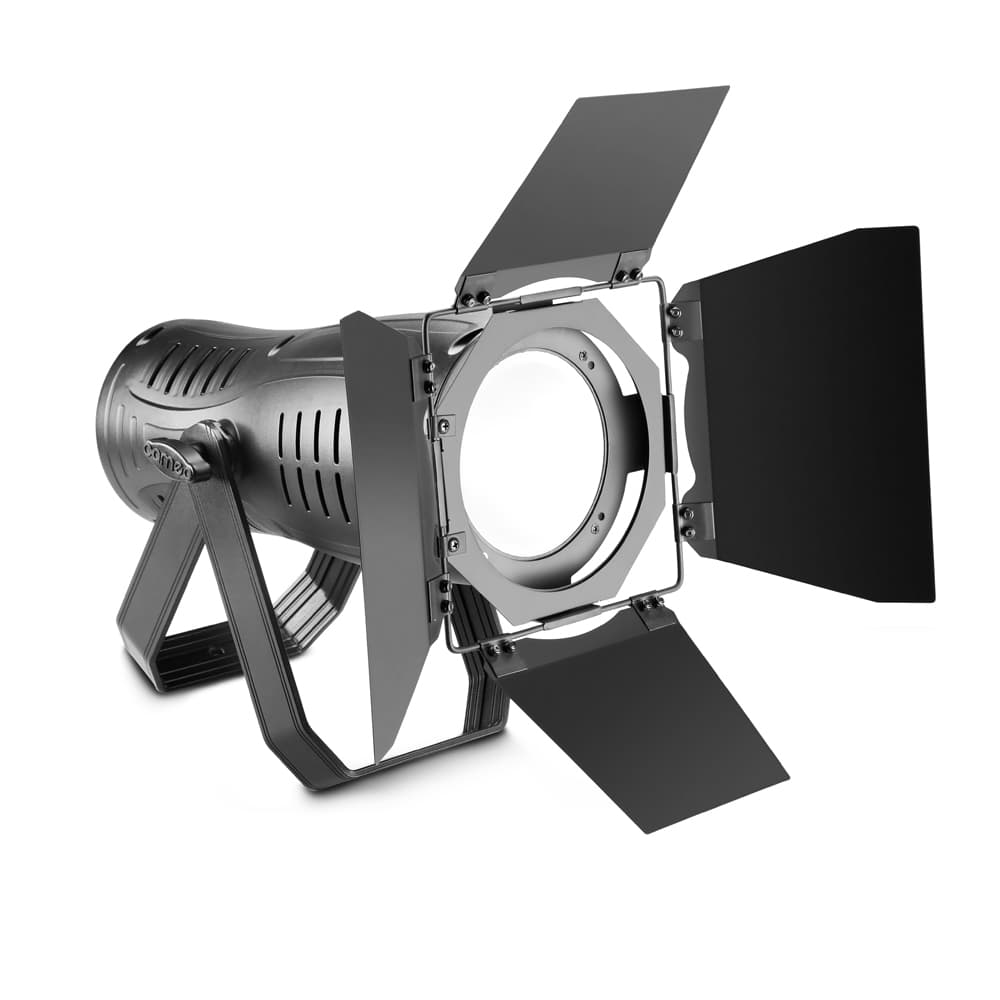

The Cameo CL 200 G2 is a high-performance spotlight equipped with a single 200 watt white COB LED that is tuneable from 3,200 K to 7,800 K. It sports a 25° beam spread and powerful 32,000 lux illuminance at 1 metre distance. The 17,500 Hz refresh rate ensures flicker-free performance making the fixture a perfect choice for motion picture and TV applications.
The CL 200 G2 provides 6 modes of DMX control, sound activation and master dimming.
It includes a high-speed strobe function with adjustable flash rate from 1 - 30 Hz and iscapable of master, slave and standalone operation. The spotlight comes in a tough metal housing with a temperature controlled fan and 4-button display for easy configuration. 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors enable truble-free daisy chaining and power linking. The multi-voltage Cameo CL 200 G2 operates on 100 - 240 V AC and includes a beam-shaping barn door.
Spare parts
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| CLCL200G2 User Manual | User Manual | 1.97 MB | |||
| Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| CLCL200G2 Fixture Library Daslight | Fixture Library Daslight | .zip | 7.16 KB | ||
| CLCL200G2 Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 4.37 KB | ||
| CLCL200G2 2D Drawing | 2D Drawing | 324.65 KB | |||
| CLCL200G2 2D Drawing | 2D Drawing | .dxf | 11.09 MB | ||
| Cameo Catalogue / Brochure CAMEO Brand Flyer | Catalogue / Brochure | 387.56 KB | |||
| Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025 | Catalogue / Brochure | 24.23 MB | |||
| Cameo Catalogue / Brochure CAMEO 2024 | Catalogue / Brochure | 11.97 MB | |||
| Cameo Manufacturer's Declaration CAMEO | Manufacturer's Declaration | 64.34 KB | |||
| Product Images | Images & Artwork | .zip | - |
