DROP® B4

VIDEO

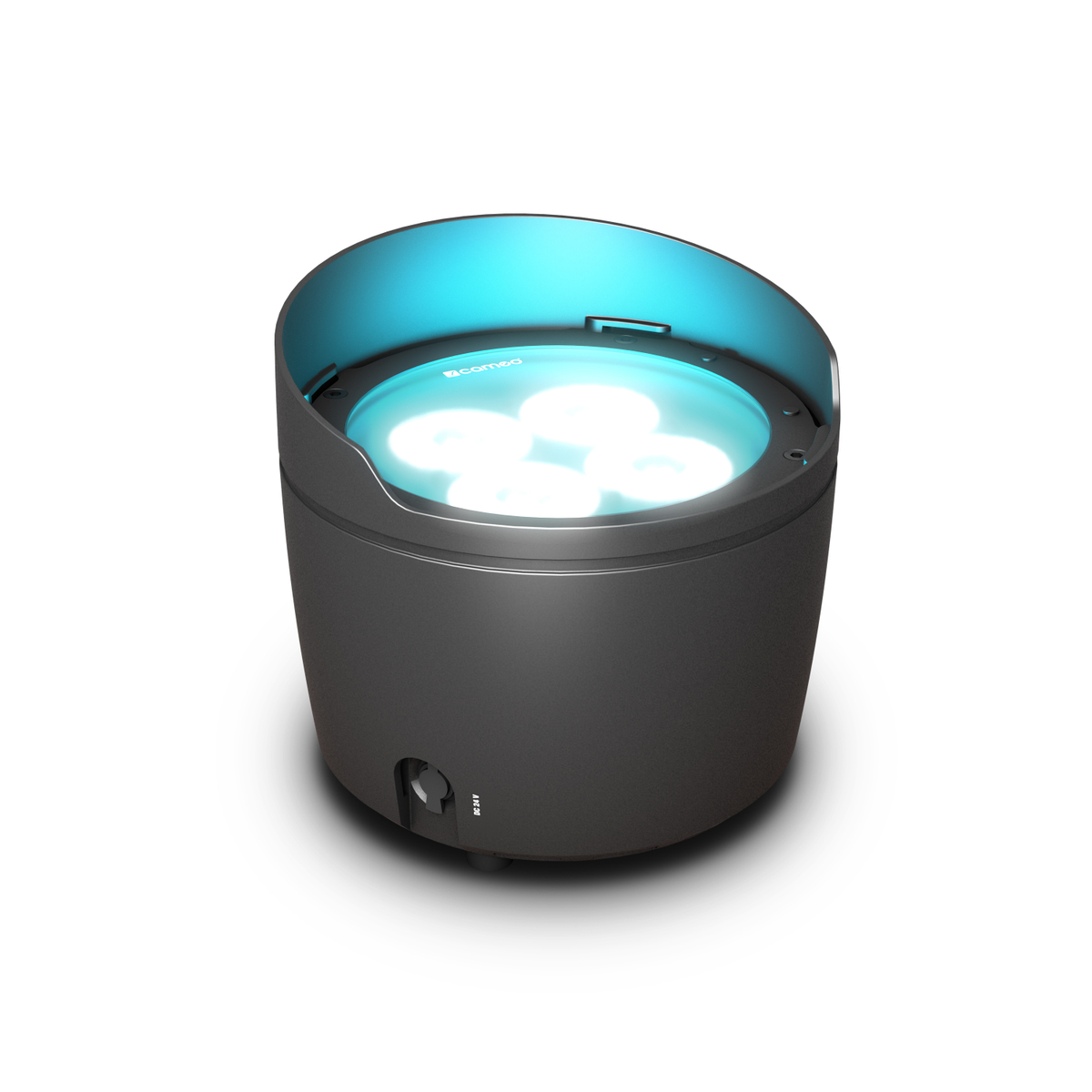

DROP® B4

Battery Powered Outdoor Uplight

Item no.: CLDROPB4

Guarantee: 24 months

EAN: 4049521448317

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:DROP® Series

Versions:

Questions about the item?

Item highlights:

Running time up to 12 hours
Built-in 2.4 GHz W-DMX™ receiver
4 x 15 W RGBWAUV LEDs
Up to 1400 lm total power output with homogeneous colour blending
LG Chem lithium ion long-life battery with extremely high capacity
Battery management system prevents overcharging and deep discharging
16-bit technology for high-resolution colours and dimming
W-DMX and infrared control or operation via OLED display
2 diffusers for flexible beam angles: 22°, 32° or 45°
Also available as a set with power supply (product no. CLDROPB4SET1) or as touring set, six units in a flightcase with charging feature (product no. CLDROPB4SET2)
IR remote control included (Art.-No.: CLQSREMOTE2)

Features

This product is ETL certified.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

Protection class IP65
The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

6-in-1 LED
Additional amber-coloured, white and UV LEDs expand the GB spectrum, creating more saturation and contrast as well as clearer colour boundaries. The UV-LED is a practical extra and an alternative to conventional black light.

Various dispersion angles possible

Specifications

Product type

Battery powered LED outdoor lighting

Type

battery-powered, PAR, Outdoor PAR

Colour spectrum

RGBWA + UV

Number of LEDs

4

Average LED lifetime

30000 hours

Dispersion

(Filter 1) 32 °, (Filter 2) 45 °, 22 °

DMX mode

3-channel, 7-channel, 20-channel, 4-channel, 6-channel, 2 x 13-channel

DMX Functions

colour fade, Dimmer Fine, Dimmer Response, RGBWA + UV, Strobe, Dimmer Curve, colour macro, DMX Delay, colour change, Dimmer, CCT

Standalone modes

colour macro, Tunable White, User Colours, Strobe, Auto programs, Colour Mix

Control

W-DMX, IR Remote Control

Controls

Up, Down, Mode, Enter

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

75 W

Power supply connector

External Power Supply

Housing material

Metal

Cabinet colour

Black

Protection class IP

IP65

Cooling

Convection

Illuminance

6750 lx @ 1 m

Luminous flux

1400 lm

Maximum Ambient Temperature

0 - 40 °C

Certification

RoHS, CE, FCC, ETL

Relative Humidity

< 85 %, not condensing

Width

247.9 mm

Height

236.8 mm

Accessories (included)

IR Remote Control, 2 x filter, 1 x Mounting bracket

Diameter

171.7 mm

Weight

3,1 kg

Description

DROP® B4

Flexibility meets design! Professionals and rental firms are better prepared with this battery-powered PAR! Whether they're standing, hanging or mounted in some other way, our DROP series uplights always look good. This is thanks to their intelligently attached bracket with no visible screws. The innovative bracket is screwed onto the uplight from below and not from the side as is standard. When unmounted, the lamp boasts a very clean, simple exterior.

Mounting options are flexible, either on the bracket or standing on rubber feet. When positioned upright and standing (without the mounted bracket), a built-in adjustment screw is available for tilt manipulation. Rated with protection class IP65, this uplight is also suitable for outdoor use. The long-life battery also ensures reliable operation.

Videos for this item

Accessories

Downloads

Manuals

Data Sheets & Specifications

Presets, Libraries & Settings

CAD & Drawings

Images & Artwork

Catalogues & Publications

Service & Regulation Documents

Certificates & Declarations

Display all

	Name	Type	Format	File size
	CLDROPB4 User Manual	User Manual	.pdf	7.16 MB
	CLDROPB4 Product Data Sheet	Product Data Sheet	.pdf	558.21 KB
	CLDROPB4 Product Data Sheet	Product Data Sheet	.pdf	799.14 KB
	CLDROPB4 Photometric Data Sheet	Photometric Data Sheet	.pdf	1.82 MB
	Cameo REACh Declaration Adam Hall GmbH	REACh Declaration	.pdf	493.71 KB
	Cameo RoHS Confirmation Adam Hall GmbH	RoHS Confirmation	.pdf	197.63 KB
	CLDROPB4 Declaration of Conformity EG	Declaration of Conformity	.pdf	300.74 KB
	CLDROPB4 DMX Control Table	DMX Control Table	.pdf	67.51 KB
	CLDROPB4 Fixture Library Daslight	Fixture Library Daslight	.zip	93.67 KB
	CLDROPB4 Fixture Library GDTF	Fixture Library GDTF	.zip	215.06 KB
	CLDROPB4 2D Drawing	2D Drawing	.pdf	205.64 KB
	CLDROPB4 2D Drawing	2D Drawing	.dxf	10.43 MB
