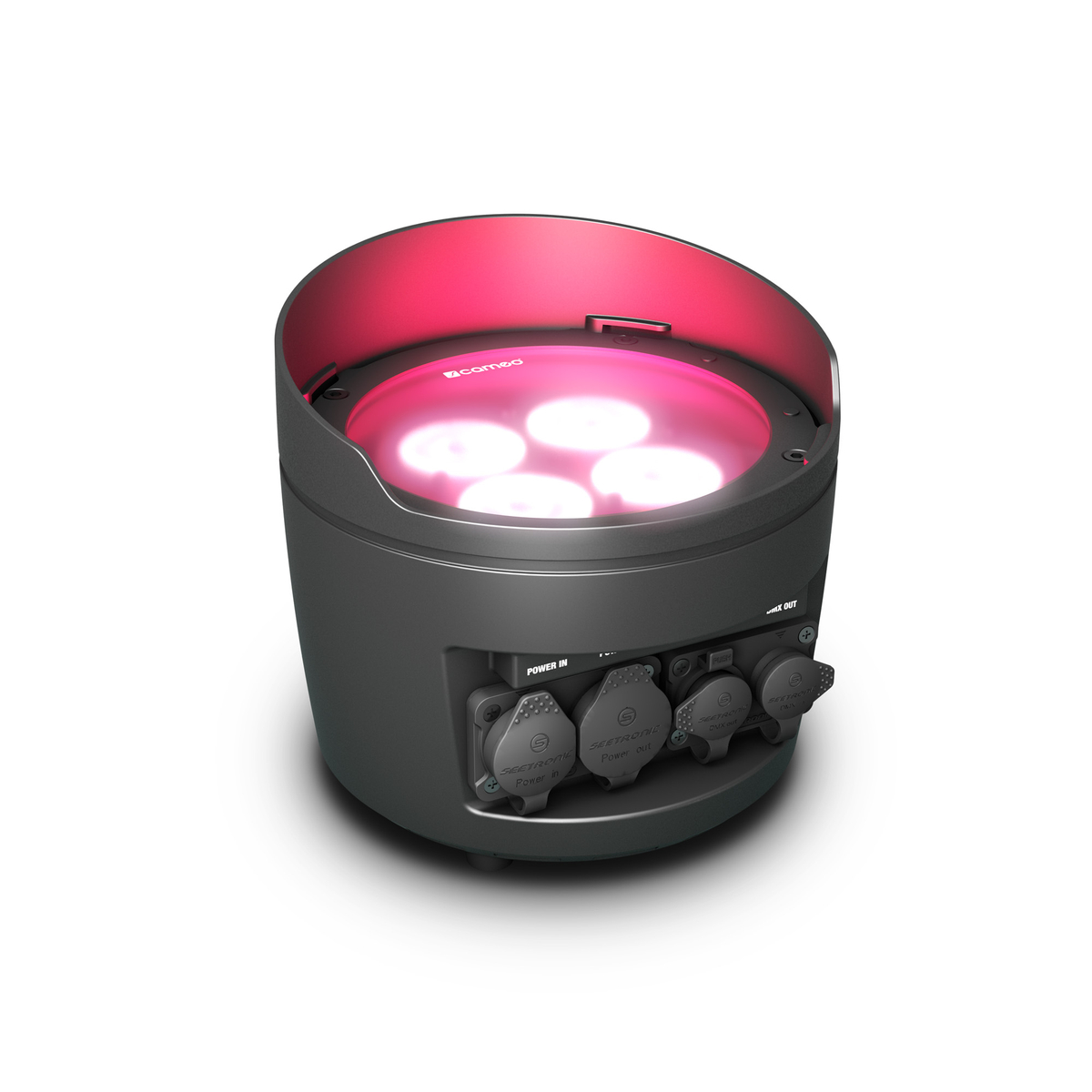

DROP® P4

VIDEO

DROP® P4

Professional Outdoor Uplight

Item no.: CLDROPP4

Guarantee: 24 months

EAN: 4049521448348

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:DROP® Series

Questions about the item?

Item highlights:

4 x 15 W RGBWAUV LEDs
Built-in 2.4 GHz W-DMX™ receiver
16-bit technology for high-resolution colours and dimming
Power supply via mains cable
Security lock prevents unauthorised menu access
W-DMX and infrared control or operation via OLED display
2 diffusers for flexible beam angle: 22°, 32° or 45°

Features

UV
UV and black light lamps are used to create decorative or artistic effects.

This product is ETL certified.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

Protection class IP65
The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

Infrared remote control
The device is fitted with an infrared sensor and can be controlled wirelessly using the IR remote control unit included.

The device features wireless master/slave operation.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

6-in-1 LED
Additional amber-coloured, white and UV LEDs expand the GB spectrum, creating more saturation and contrast as well as clearer colour boundaries. The UV-LED is a practical extra and an alternative to conventional black light.

Various dispersion angles possible

Specifications

Product type

LED Wash Light

Type

Outdoor PAR

Colour spectrum

RGBWA + UV

Number of LEDs

4

Average LED lifetime

30000 hours

LED type

15 W

Dispersion

40 °, 22 °, 32 °

DMX input

XLR 3-pin female

DMX output

XLR 3-Pol male IP65

DMX Functions

RGBWA + UV, RGBWA + UV Fine, Dimmer, colour macro, Strobe, Dimmer Fine, Dimmer response, LED PWM Frequency, Dimmer Curve, Colour temperature correction, colour change, colour fade

Standalone modes

Tunable White, colour macro, Strobe, Auto programs, Master / Slave mode, Colour Mix, User Colours

Control

RDM, DMX

Controls

Enter, Up, Mode, Down

Indicators

OLED Display

Power consumption

45 W

Power supply connector

Neutrik PowerCON TRUE1 IN / OUT

Housing material

Metal

Cabinet colour

Black

Protection class IP

IP65

Relative Humidity

< 85 %, not condensing

Cooling

Convection

Luminous flux

1400 lm

Maximum Ambient Temperature

0 - 40 °C

Width

247.9 mm

Height

236.8 mm

Diameter

171.7 mm

Certification

FCC, ETL, RoHS, CE

Weight

3,1 kg

Accessories (included)

1 x Mounting bracket, Neutrik PowerCon, 2 x filter

Description

DROP® P4

Flexibility meets design! Professionals and rental firms are better prepared with this uplight! Whether they're standing, hanging or mounted in some other way, our DROP series uplights always look good. This is thanks to their intelligently attached bracket with no visible screws. The innovative bracket is screwed onto the uplight from below and not from the side as is standard. This means that when unmounted, the lamp boasts a very clean, simple exterior.

Mounting options are flexible, either on the bracket or standing on rubber feet. When positioned upright and standing (without the mounted bracket), a built-in adjustment screw is available for tilt manipulation. Rated with protection class IP65, this uplight is also suitable for outdoor use.

Videos for this item

Downloads

Manuals

Data Sheets & Specifications

Presets, Libraries & Settings

CAD & Drawings

Images & Artwork

Catalogues & Publications

Service & Regulation Documents

Certificates & Declarations

Display all

	Name	Type	Format	File size
	CLDROPP4 User Manual	User Manual	.pdf	7.53 MB
	CLDROPP4 Product Data Sheet	Product Data Sheet	.pdf	577.3 KB
	CLDROPP4 Photometric Data Sheet	Photometric Data Sheet	.pdf	839.96 KB
	Cameo REACh Declaration Adam Hall GmbH	REACh Declaration	.pdf	493.71 KB
	Cameo RoHS Confirmation Adam Hall GmbH	RoHS Confirmation	.pdf	197.63 KB
	CLDROPP4 Declaration of Conformity EG	Declaration of Conformity	.pdf	300.45 KB
	CLDROPP4 DMX Control Table	DMX Control Table	.pdf	544.52 KB
	CLDROPP4 Fixture Library Daslight	Fixture Library Daslight	.zip	93.68 KB
	CLDROPP4 2D Drawing	2D Drawing	.pdf	258.03 KB
	CLDROPP4 2D Drawing	2D Drawing	.dxf	12.08 MB
	Cameo Catalogue / Brochure CAMEO Brand Flyer	Catalogue / Brochure	.pdf	387.56 KB
	Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025	Catalogue / Brochure	.pdf	24.23 MB
