LED Tungsten Fresnel Spot Light

Item no.: CLF2T

Guarantee: 24 months

EAN: 4049521304347

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:F-Series

Versions:

Item highlights:

  • Tungsten LED Fresnel with 3,200 K colour temperature and 12,500 lm output
  • Perfect replacement for conventional 1 kW Fresnels
  • Faithful colour reproduction, CRI rating of 96, TLCI of 97
  • Continuously variable zoom for 15° to 40° beam spread
  • 16-bit dimming with 4 selectable curves and adjustable response
  • Super efficient heat pipe cooling and temperature controlled fan for optimum operation
  • RDM enabled
  • Selectable PWM frequencies up to 25 kHz
  • Flicker-free and silent operation, ideal for TV, film and theatre applications
  • Includes 8-way barn door and gel frame

Features

This product is ETL certified.

Specifications

Product type
LED Fresnel Spotlight
Type
Theater Fresnel
Colour spectrum
warm white (3200K)
Number of LEDs
1
LED type
240 W (ca. 50,000 Operating Hours)
Refresh rate
Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz
Dispersion
Field Angle: 28 ° - 60 °, Beam Angle: 16 ° - 40 °
Lens
200 mm Fresnel
DMX input
5-Pol
DMX output
5-Pol
DMX mode
4-channel, 2-channel 1, 1-channel, 3-channel, 2-channel 2, 5-channel
DMX Functions
Dimmer Curve, Dimmer, Strobe, Dimmer Fine, Device Settings
Standalone modes
Master / Slave mode, Static
Controls
Encoder
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
210 W
Power supply connector
TRUE1 Compatible Power I/O Socket
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
20
Cooling
Combination of Heat Pipe and Temperature Controlled Fan
Luminous flux
12.500 lm
Efficiency
57 lm/W
Ambient temperature (operating)
-15 - 45 °C
Color temperature
3200 K
Weight
9 kg
Width
270 mm
Height
292 mm
Depth
322 mm

Description

F2 T

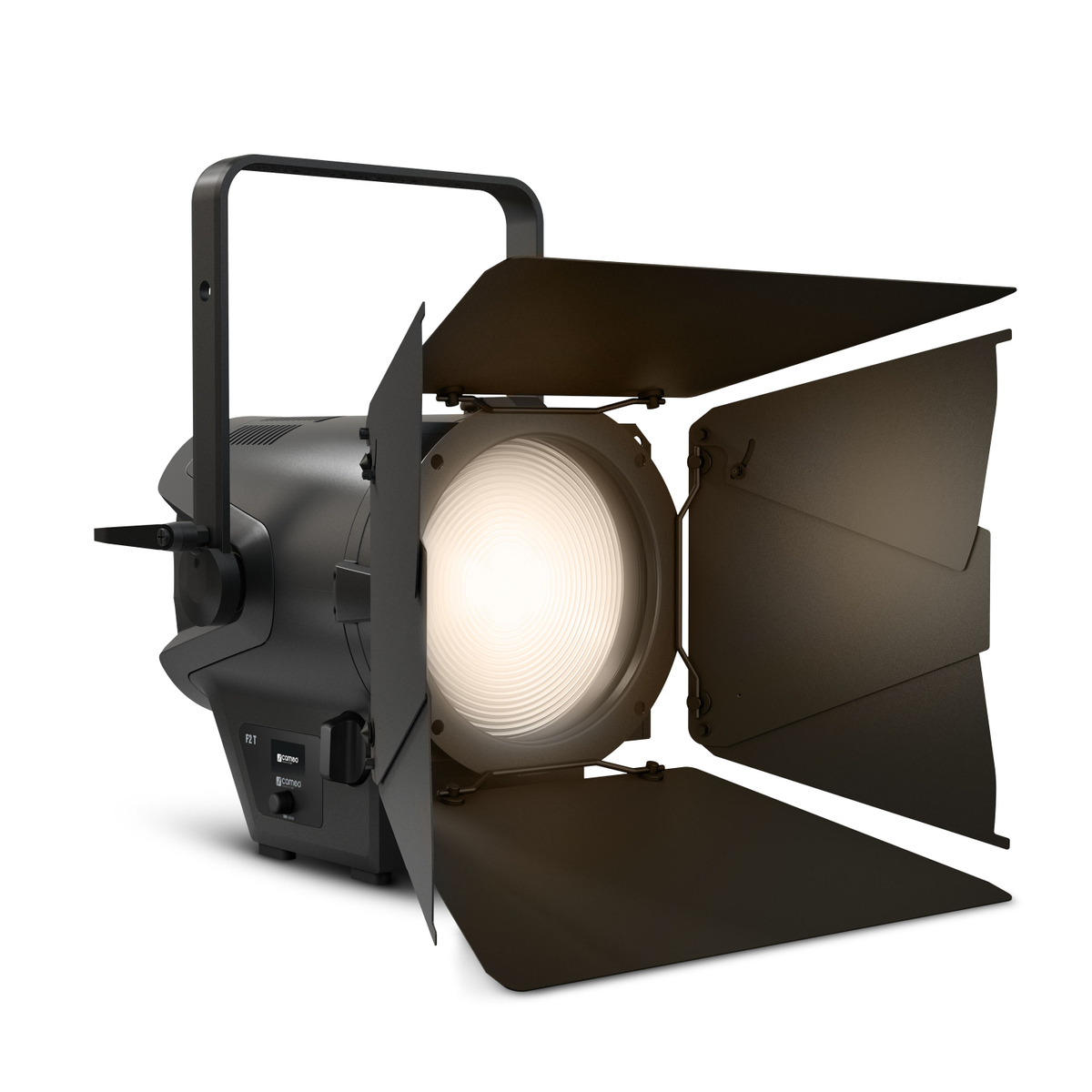

The Cameo F2 T is a professional Fresnel light with high-quality 200 mm lens and huge 12,500 lm output delivering a soft-edged beam with continuously variable 15° to 40° spread. A perfect and energy saving replacement for conventional 1 kW Fresnels, the RDM-enabled spot light is powered by a single 240 watt warm white LED with 50,000 h life expectancy. It has a colour temperature of 3,200 K and super high CRI of 97 showing colours faithfully and realistically.

The F2 T provides 6 modes of DMX control, a high-speed strobe function and smooth 16-bit dimming with a choice of 4 curves and adjustable response. It offers a selection of 6 PWM frequencies up to 25 kHz for flicker-free performance, and the super efficient heat pipe cooling and temperature controlled fan ensure optimum operation. The Fresnel's rugged die-cast aluminium housing features a rotary encoder and OLED display for easy configuration plus 5-pin DMX and Power Twist inputs and outputs for convenient daisy- chaining. The fixture comes with an 8-way barn door, gel frame and power cord.
