F4 T

F4 T

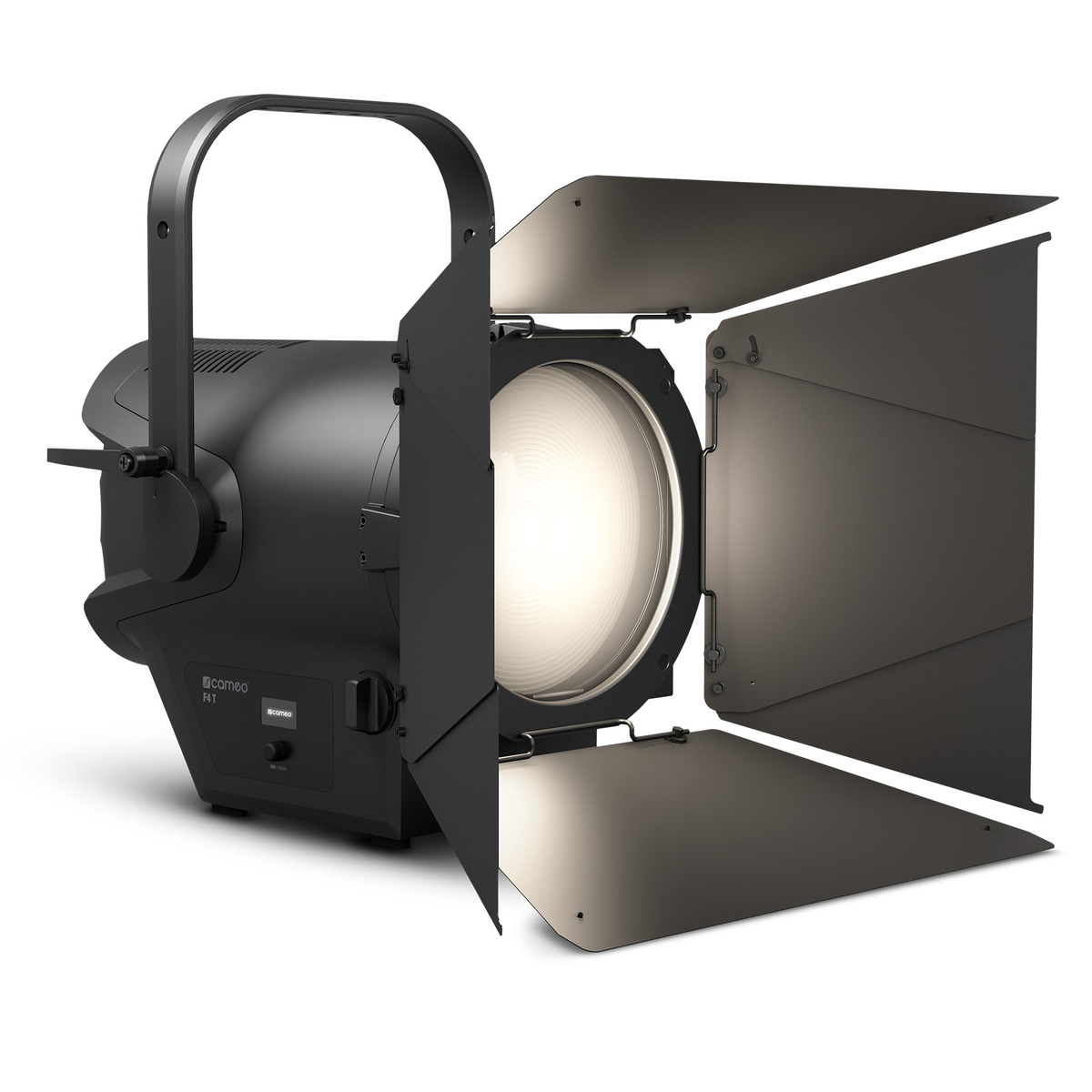

High-Power Fresnel Spotlight with Tungsten LED

Item no.: CLF4T

Guarantee: 24 months

EAN: 4049521415715

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:F-Series

Versions:

Item highlights:

  • Tungsten LED Fresnel spotlight with 29,500 lm total power output, replaces conventional 2 kW halogen Fresnel
  • Lifelike colour reproduction, CRI rating of 96, TLCI of 96
  • Continuous zoom for beam angles from 12° to 40°
  • Four selectable 16-bit dimmer curves with adjustable response
  • Highly efficient cooling thanks to a heatpipe and temperature-controlled fan
  • Control via DMX or RDM, silent mode for studio use
  • Selectable pulse width modulation frequencies up to 25 kHz
  • Flicker-free and noiseless operation, ideal for TV, film, photography studios and theatre
  • Quicklight function to save time when setting lights
  • 8-way barndoor and colour filter frames included

Features

This product is ETL certified.

Specifications

Product type
LED Fresnel Spotlight
Type
Theater Fresnel
Colour spectrum
Tungsten, Warm white
Number of LEDs
1
LED type
520 W (approx. 50,000 operating hours)
LED PWM Frequency
Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion
Field Angle: 24 - 69 °, Beam Angle: 12 - 40 °
Lens
250 mm Fresnel
DMX input
5-Pol
DMX output
5-Pol
DMX Functions
Strobe, Device Settings, Dimmer Curve, Dimmer, Dimmer Fine
Standalone modes
Master / Slave mode, Static
Controls
Push encoder
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
473 W
Power supply connector
TRUE1 compatible Power I/O sockets
Power supply connection
TRUE1 compatible Power I/O sockets
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
IP20
Cooling
Combination of Heat Pipe and Temperature Controlled Fan
Luminous flux
29500 lm
Efficiency
59 lm/W
Color temperature
3200 K
Ambient temperature (operating)
-15 - 45 °C
Width
410 mm
Height
364 mm
Length
433 mm
Weight
17,8 kg
Accessories (included)
8-way barndoor, Power cord, Colour Filter Frame

Description

F4 T

Warm-white light is essential for creating atmospheric stage experiences: The Cameo F4 T is a professional Fresnel spotlight with a high-quality 250 mm lens and high luminous flux of 29,500 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° and is a perfect, energy-saving replacement for traditional 2-kW Fresnel models. Its 520-watt warm-white LED has a colour temperature of 3,200 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.

The F4 T has 6 DMX control modes, a fast strobe function and 4 16-bit dimmer curves with adjustable response. The unique quicklight function makes setting up the spotlight much easier. Simply remove the DMX signal for a moment, increase the lighting brightness via the push encoder and adjust the spotlight. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High-efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors facilitate simple daisy-chaining. 8-way barndoor, a gel frame and mains cable are included.

Videos for this item

Accessories

Spare parts

CLF4BARNDOOR
Barndoor for CLF4D. CLF4FC, CLF4FC
Loading...
CLF4FRESNELLENS
Fresnel Lens for CLF4D, CLF4FC, CLF4T
Loading...

Downloads

Manuals
Data Sheets & Specifications
Presets, Libraries & Settings
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name
Type
Format
File size
CLF4T User Manual User Manual.pdf3.26 MB
CLF4T Product Data Sheet Product Data Sheet.pdf661.15 KB
CLF4T Photometric Data Sheet Photometric Data Sheet.pdf444.55 KB
Cameo REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
Cameo RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
CLF4T DMX Control Table DMX Control Table.pdf39.74 KB
CLF4T Fixture Library GDTF Fixture Library GDTF.zip741.05 KB
CLF4T Fixture Library Grandma2 Fixture Library Grandma2.zip10.92 KB
CLF4T Fixture Library Grandma2 Fixture Library Grandma2.zip6.91 KB
CLF4T Fixture Library Grandma2 Fixture Library Grandma2.zip7.05 KB
CLF4T Light Distribution Curves Light Distribution Curves.zip2.39 KB
CLF4T Tender Documents Cameo F4 TTender Documents.pdf67.51 KB
