MAUI P900 G

MAUI P900 G

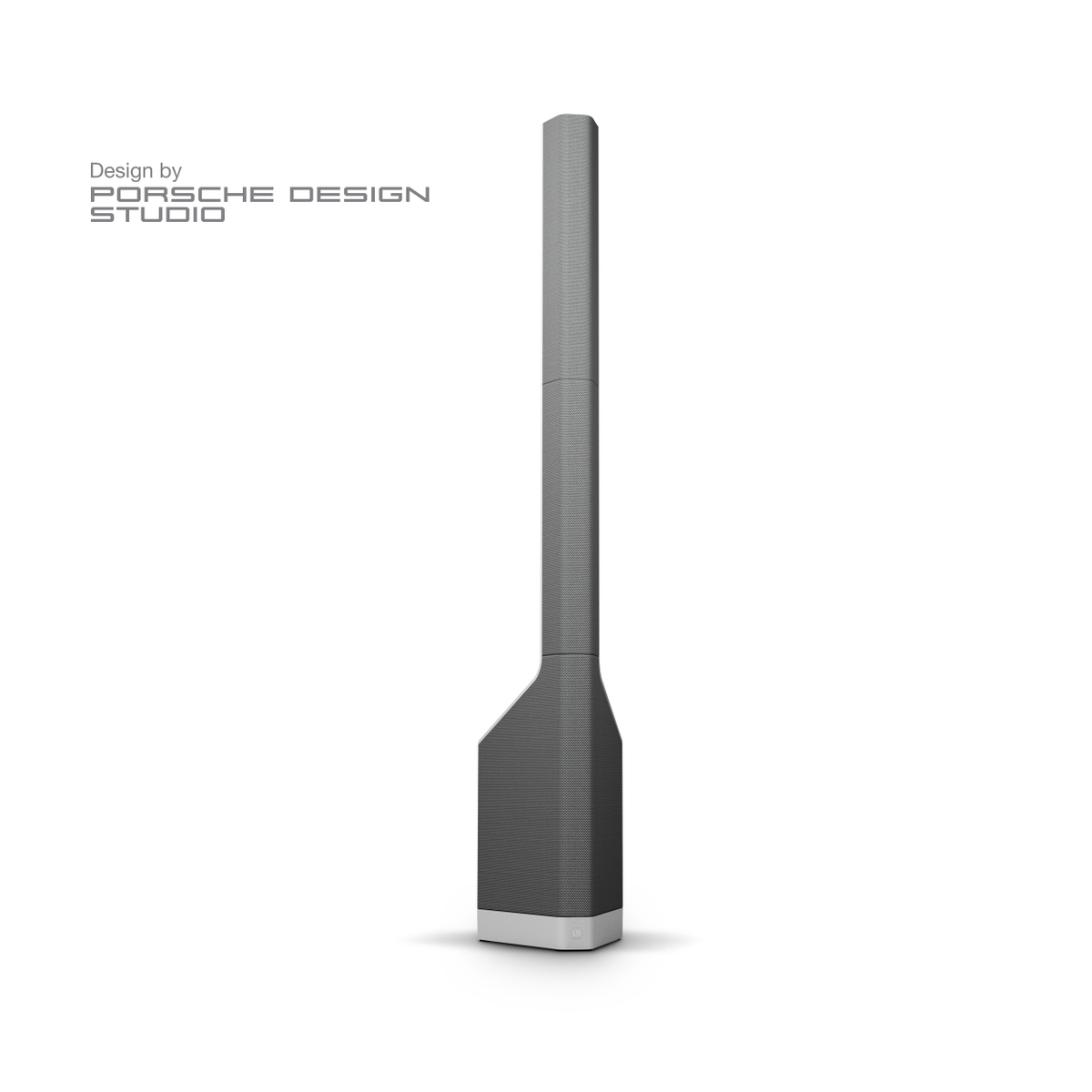

Powered Column PA System by Porsche Design Studio in Platinum Grey

Item no.: LDMAUIP900G

Guarantee: 24 months

EAN: 4049521229664

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:MAUI P900

Versions:

Item highlights:

  • Powered column PA system for live events and install
  • Award-winning design by Porsche Design Studio
  • Durable aluminium body
  • 1,400 watts RMS system power and 131 dB maximum SPL
  • 50 premium transducers for monumental clarity
  • SonicGuide® and WaveAhead® technology for coherent wavefront
  • DynX® DSP for distortion free sound
  • aptX™ and AAC coding for HD Bluetooth® streaming
  • TrueWireless Stereo™ for wireless stereo pairing
  • Available in Cocoon White, Platinum Grey or Graphite Black

Specifications

Product type
PA Complete Systems
Type
active
Color
Platinum Grey
Max. SPL (continuous)
121 dB
Max. SPL (Peak)
131 dB
Frequency response
42 - 20.000 Hz
Dispersion (H x V)
140 x 15 °
Total Height
2173 mm
Weight
46 kg
Features
Bluetooth Audio Streaming, Mono/ Stereo Application, DSP-based Signal Processing, Excellent Sound Dispersion
Woofer dimensions
2 x 10 "
Woofer dimensions (mm)
2 x 254 mm
Woofer magnet
Neodymium
Woofer brand
Custom-made
Woofer voice coil (inch)
3 "
Woofer voice coil (mm)
76.2 mm
Cabinet construction
Bass Reflex
Housing material
15 mm Plywood
Cabinet surface
multi layer mesh (cloth), HD coated aluminum
Dimensions Subwoofer (W x H x D)
400 x 745 x 470 mm
Subwoofer weight
30.6 kg
Midrange dimensions
16 x 2.8 "
Midrange dimensions (mm)
16 x 71,1 mm
Midrange magnet
Neodymium
Midrange brand
Custom-made
Midrange voice coil
0.75 ", 20 mm
Tweeter dimensions
32 x 1 "
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Neodymium
Tweeter brand
Custom-made
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Wave Guide
SonicGuide® Technology
MF / HF Transducer Arrangement
Patented WaveAhead® Technology
Loudspeaker inputs
1
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
Aluminium
Mid/Hi system cabinet surface
multi layer mesh (cloth), HD coated aluminum
Mid/Hi system width
157 mm
Mid/Hi system height
1428 (2 x 714) mm
Mid/Hi system depth
91 mm
Mid/Hi system weight
2 x 7.7 kg
Amplifier
3 x class D
System output (RMS)
1400 W
System output (Peak)
2800 W
Protection circuits
Thermal protection, DC protection, Multiband limiter, Short circuit
Cooling
Convection
Controls
Sub level, Power On/Off, Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Main level
Indicators
Bluetooth, Signal, Protect (protection circuit engaged), Bluetooth STEREO LINK, Power, Limit
Mains connector
IEC power cable (included)
Operating voltage
100 V AC - 120 V AC, 50 - 60 Hz, Switching power supply, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Power Consumption (On / Off / Max.)
0 W / 11 W / 1000 W
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
10 % - 80 %
Line Inputs
1 x stereo
Line Input Connectors
Neutrik XLR
Line Outputs
1 x Stereo Thru
Line Output Connectors
Neutrik XLR
Number of speaker outputs
1
Loudspeaker Output Connectors
Custom-made multipin
Bluetooth Standard
A2DP
Bluetooth Audio Decoder
SBC, AAC, aptX
Bit depth AD/DA converter
24 bit
Sampling frequency
48 kHz
Signal-to-noise ratio
106 dB

Description

MAUI P900 G

Developed in collaboration with Porsche Design Studio, the LD Systems MAUI® P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI® P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

The MAUI® P900 incorporates both our SonicGuide® waveguide technology and WaveAhead® tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX® 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX™ and AAC coding ensures high-definition full bandwidth audio over Bluetooth® with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo™ technology enables wireless stereo sound from two MAUI® P900 with up to 15 m (50 ft.) distance between left and right channel systems.

Constructed of high-strength aluminium with a multilayer mesh grille, the unique three-piece MAUI® P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.

Merging distinctive aesthetics and outstanding audio performance, the MAUI® P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.

To facilitate transport and protect the MAUI® P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.
