MEI 1000 G2 B 5

MEI 1000 G2 B 5

In-Ear Monitoring System wireless band 5 584 - 608 MHz

Item no.: LDMEI1000G2B5

Guarantee: 24 months

EAN: 4049521202858

Sliding scale: 1

Unit: Piece

Packaging unit: 5

Series:MEI 1000 G2

Versions:

Item highlights:

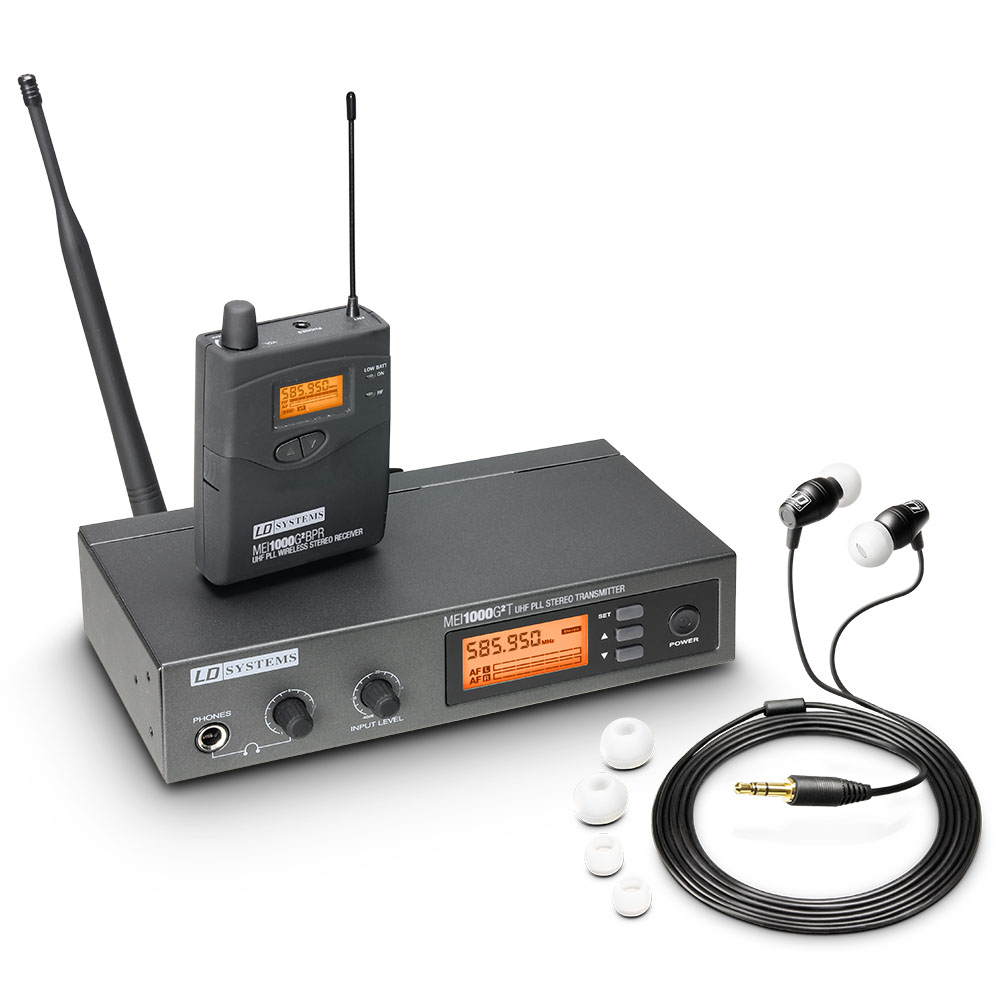

The new LD Systems MEI 1000 G2 B 5 is a In-Ear Monitoring-System with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 584 - 608 Mhz frequency band.

Switchable mono, stereo, and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60 Hz – 16 kHz, a high S/N ratio, and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to 5 systems.

The earphones are very comfortable to wear, and the multifunctional display on the receiver shows all relevant system information. With high quality batteries, it is possible to attain operating times of 12 hours and more. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.

Specifications

Product type
In-ear Monitoring
Transmission frequency range
584 - 607 MHz

Items in this set

Show item
Product type
In-ear Monitoring Accessories
Type
Receivers
Transmission frequency range
584 - 607 MHz
Channels
2 x 96 (8 groups of 12 channels)
Transmission method
FM, stereo
Frequency response
60 - 16.000
Signal-to-noise ratio
80 dB
Total Harmonic Distortion (THD)
< 1 %
Audio output
3.5 mm TRS
Max. audio output level
100 mW
Controls
Up, volume, Down, Set, Escape
Indicators
low battery, Power, LC display
Power supply
2 x 1.5 V AA
Operating time
> 12 hrs., battery-dependent
Width
65 mm
Height
90 mm
Depth
24 mm
Weight
0,1 kg
Features
incl. batteries
Show item
Product type
In-ear Monitoring Accessories
Type
Transmitters
Transmission frequency range
584 - 607 MHz
Channels
96 (8 groups of 12 channels)
Transmission method
FM, stereo
Rated HF output power
10 mW
Frequency response
60 - 16.000
Signal-to-noise ratio
85 dB
Inputs
2
Input connectors
6.3 mm jack, XLR
Input impedance (kOhms)
14 kOhm
Antenna connector
BNC
Controls
Power, input level, Up, Set, pad, volume headphone
Indicators
LC display
Power supply
12 - 18 V DC
Width
200 mm
Height
44 mm
Depth
96 mm
Weight
1,116 kg
Accessories (included)
Power supply, Antenna

Videos for this item

Accessories

Spare parts

LDWSRB5ANTBNC
BNC Antenna for Receiver, 5 Band
Loading...
MEI 1000 RK
LDMEI1000RK
19" Rack Kit for LDMEI1000 In-Ear Monitoring System
Loading...

Downloads

Manuals
Data Sheets & Specifications
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Certificates & Declarations
Display all
Name
Type
Format
File size
LDMEI1000G2B5 User Manual User Manual.pdf7.29 MB
MEI 1000 G2 Frequency List DeviceFrequency List.pdf61.24 KB
MEI 1000 G2 Frequency List CountryFrequency List.pdf77.71 KB
LDMEI1000G2B5 Battery Disposal Battery Disposal.pdf77.14 KB
LD Systems REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
LD Systems RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
MEI 1000 G2 Declaration of Conformity EGDeclaration of Conformity.pdf161.34 KB
LDMEI1000G2B5 Declaration of Conformity EGDeclaration of Conformity.pdf292.58 KB
LD Systems Catalogue / Brochure Highlight Brochure InstallCatalogue / Brochure.pdf6.51 MB
LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
LD Systems Catalogue / Brochure Highlight Brochure DJ & MusicCatalogue / Brochure.pdf4.4 MB
LD Systems Manufacturer's Declaration LD-SYSTEMSManufacturer's Declaration.pdf66.91 KB
