Item no.: NLT8FXX
Guarantee: 12 months
EAN: 7613187013317
Sliding scale: 1
Unit: Piece
Packaging unit: 20
Item highlights:
- IEC 61984 certified, therefore suitable as a component for devices certified according to IEC 62368-1
- Extremely robust metal housing and insert made of glass fibre reinforced V-0 material for demanding applications, especially in the touring sector
- Compatible with the complete speakON8-pole product series
- Rated current 30 A rms
- Highly precise "Quick Lock" locking system
Specifications
Weight
0,146 kg
Description
NLT8FXX

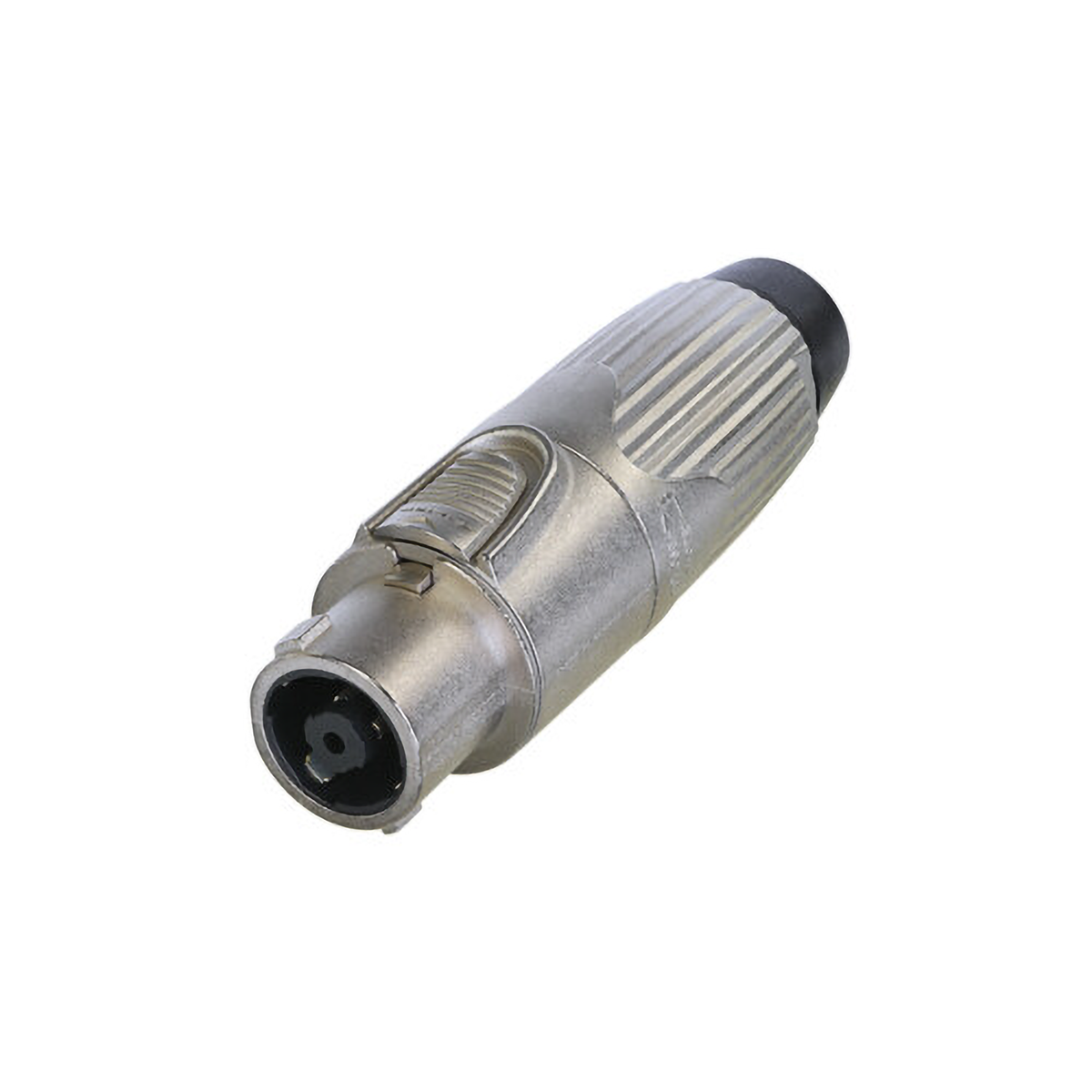

8-pin female cable connector, metal housing, collet strain relief, solder connections.
Due to the component certification according to IEC 61984, this connector is suitable for use in devices that must fulfil the IEC 62368-1 device standard.
The speakON STXX loudspeaker connectors have been developed for the most demanding applications, especially in the touring sector. The stable die-cast metal housing makes the connectors extremely robust.
