Item no.: 8747IP3
Guarantee: 24 months
EAN: 4049521203725
Sliding scale: 1
Unit: Piece
Packaging unit: 30
Series:Power Distribution Units
Versions:
Item highlights:

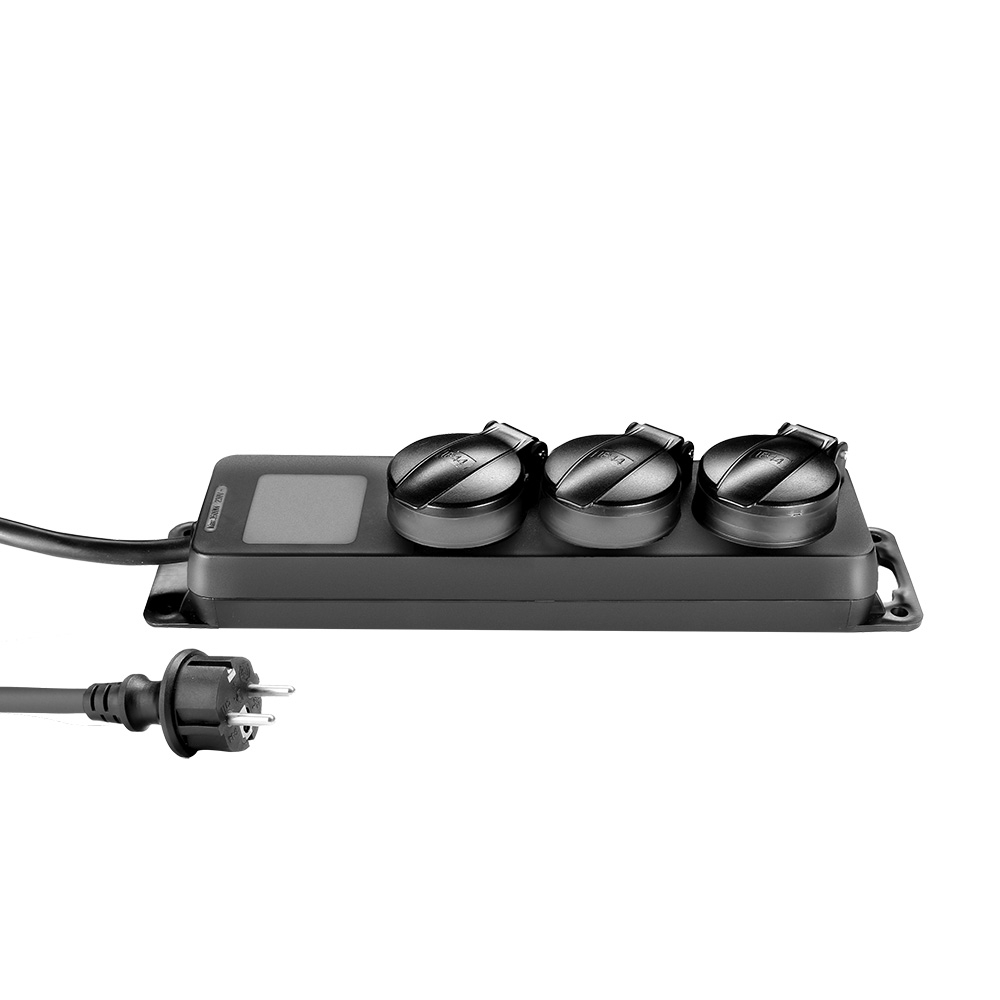

- Portable Power Strip from our outdoor range
- 3 Schuko sockets with cover rotated 45°
- The sockets are IP44 rated
- Permanently installed suspension
- With 1.4 m PVC cable and angled Schuko plug
Specifications
Input connector type
Schuko plug male
Output connector type
Schuko socket female
Output protection class
IP44
Material
Plastic
Cable length
1.4 m
Cable detachable
No
On/Off switch
No
Number of outputs
3
Colour
Black
Operation voltage
100 V AC - 250 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor diameter
1,5 mm²
Cable jacket
Rubber (H07RN-F)
Cable diameter
7 mm
Protection class
IP44
Width
285 mm
Height
60 mm
Depth
70 mm
Weight
500 g
Description
PDU 3 IP
The IP44 rated 8747 IP 3 features 3 type F grounded outlets and 1.4 m power cord with standard earthing contact CEE 7/7 power plug for additional reach and flexibility. It is suitable for general outdoor use and protected against solid objects over 1mm in size and sprays of water.
