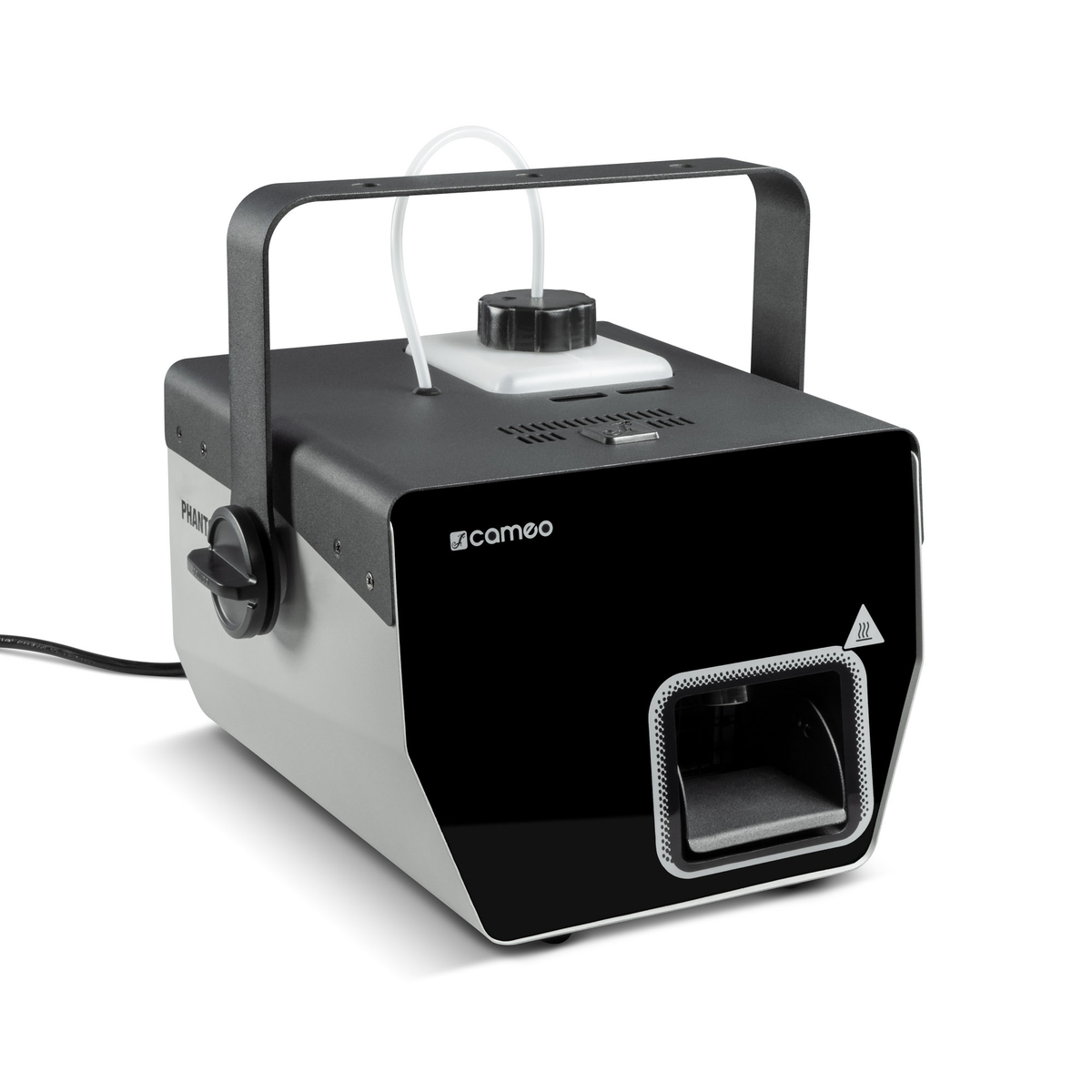

PHANTOM H2

PHANTOM H2

Compact Hazer with bicolour Tank Illumination and Level Indicator

Item no.: CLPHANTOMH2

Guarantee: 24 months

EAN: 4049521395475

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:PHANTOM

Item highlights:

  • Highly efficient heating element (600 W), preheating: approx. 2 mins
  • Bicolour 0.8 l illuminated tank with level indicator
  • Output volume: 226 m³/min (max.)
  • Fluid use: only 3.5 ml/min @ 100% output performance
  • Easy configuration via LED display, DMX or standalone
  • Suitable for water-based hazer fluids (e.g. Cameo Haze Fluid)
  • Removable fluid tank for easy refilling
  • Built-in overheating protection
  • Adjustable output angle with deflector
  • Includes mounting bracket and remote control

Features

Specifications

Product type
hazer
Type
hazer
Power
600 W
Output volume
ca. 226 m³/min
Warm-up time
ca. 2 min
Fluid tank capacity
0.8 l
Fluid Consumption
ca. 3.5 ml/min
Remote connection
DIN 5-Pol male
Remote cable length
10 m
Remote functions
Interval, Wind set, Output
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
2-channel
DMX Functions
Haze emission, Fan speed
Controls
Enter, Mode, Up, Down
Indicators
4-digit LED display
Power supply
230 V AC / 50-60 Hz
Fuse
F5AL / 250 V
Power consumption
620 W
Power connector
Fixed connection cable, CEE 7/7
Ambient temperature (in operation)
5 - 40 °C
Relative Humidity
< 85 %, not condensing
Housing material
Metal
Cabinet colour
grey, Black
Width
242 mm
Height
187 mm
Depth
275 mm
Accessories (included)
canister, Cable remote, 4 rubber feet
Weight
7,14 kg

Description

PHANTOM H2

A perfect light show requires evenly distributed fog. The Cameo PHANTOM H2 600 W compact hazer is perfect for this. It produces small fog volumes that are output evenly throughout the duration of its use, thereby preventing thick clouds! The professional execution of sophisticated lighting effects is efficiently realisable for private event technicians, musicians and DJs with this hazer, while its robust design makes it especially attractive to rental companies.

Perfect hazer effects are achieved by its optimally attuned components. The highly efficient heating element facilitates a short preheating time of around 2 minutes and achieves a maximum output volume of 226 m³/min. At the same time, the device consumes a maximum of 3.5 ml of fluid per minute and is suitable for use with environmentally-friendly water-based haze fluid. The bicolour illuminated tank holds 0.8 litres for plenty of available fluid and features a level indicator. Refilling doesn't have to be done at the device as the tank can be easily removed and put back in after filling.

Configuration can be done via the clearly designed LED display and the device can be operated using DMX or the remote controller via a 10 m cable. Built-in overheating protection ensures operational safety.

Even once the hazer has been installed, its output angle can still be adjusted. This is achieved with the deflector, which allows for improved combination of the hazer output and lighting without having to change the hazer setup.

Once it has been installed using the included bracket, the appealing design of the Cameo PHANTOM H2 600 W compact hazer, with bicolour black/cool grey metal housing, makes it an attractive addition to any stage and lighting setup.

Videos for this item

Accessories

Downloads

Manuals
Data Sheets & Specifications
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name
Type
Format
File size
CLPHANTOMH2 User Manual User Manual.pdf4.82 MB
Cameo REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
Cameo RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
CLPHANTOMH2 DMX Control Table DMX Control Table.pdf22 KB
CLPHANTOMH2 2D Drawing 2D Drawing.dwg735.29 KB
CLPHANTOMH2 2D Drawing 2D Drawing.pdf946.03 KB
Cameo Catalogue / Brochure CAMEO Brand FlyerCatalogue / Brochure.pdf387.56 KB
Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
Cameo Catalogue / Brochure CAMEO 2024Catalogue / Brochure.pdf11.97 MB
Cameo Manufacturer's Declaration CAMEOManufacturer's Declaration.pdf64.34 KB
Product ImagesImages & Artwork.zip-
