Q-SPOT 40 WW

Q-SPOT 40 WW

Faro compatto con LED WW da 40 W, modello nero

Item no.: CLQS40WW

Guarantee: 24 months

EAN: 4049521263040

Sliding scale: 1

Unit: Piece

Packaging unit: 8

Series:Q-Spot

Versions:

Item highlights:

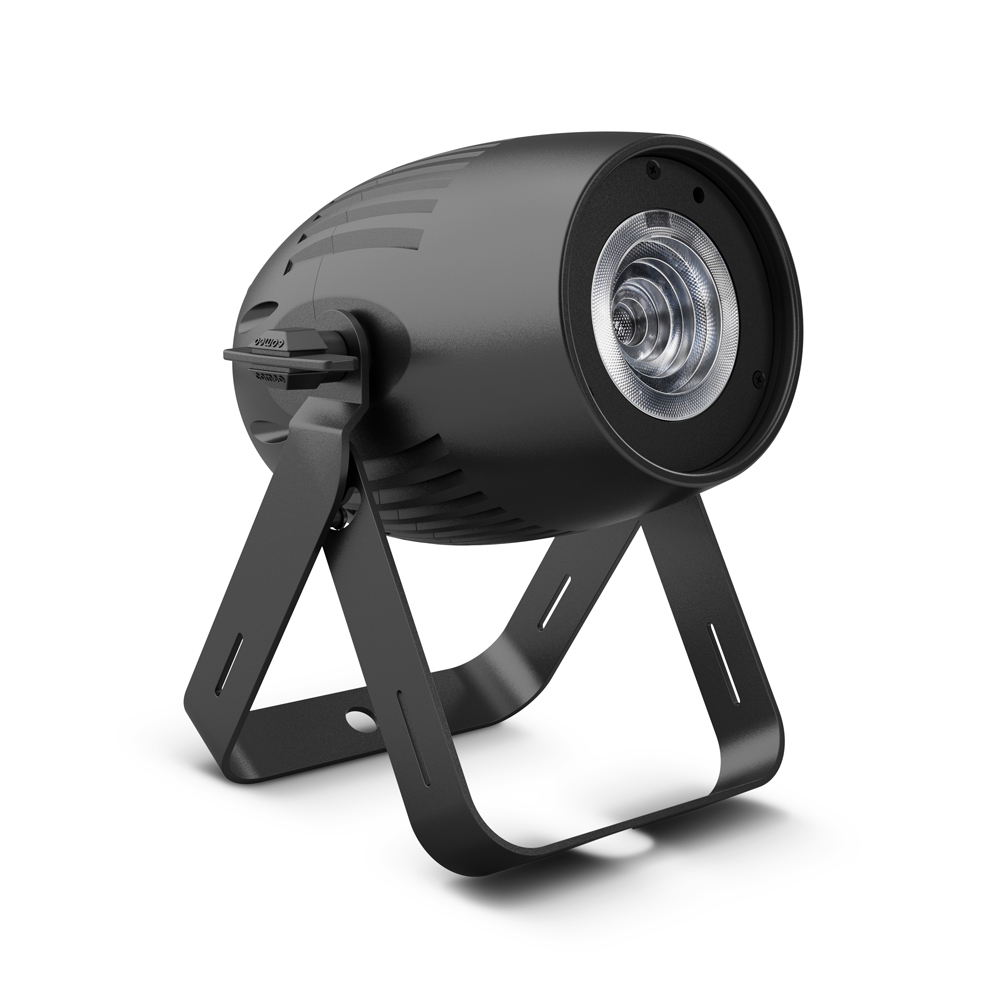

This compact Cameo Q-Spot is equipped with a powerful 40 watt warm white LED that has a 50,000 hour life expectancy. The RDM enabled PAR light sports a custom lens for a tightly focussed 4.5° beam spread and comes with two replacement lenses offering versatility with a choice of 10° and 15° angles. Using 16-bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .

The white light Q-Spot 40 features 3-channel DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4- button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 WW is available with a black (item no. CLQS40WW) or white housing (item no. CLQS40WWWH).

Features

Telecomando a infrarossi
Il dispositivo è dotato di un sensore a infrarossi e può essere controllato in modalità wireless tramite il telecomando a raggi infrarossi in dotazione.

Specifications

Tipo di prodotto
Proiettori PAR LED
Tipo
Interni
Spettro cromatico
Bianco caldo
Numero di LED
1
Temperatura colore
3000 K
Durata media LED
50.000 h
Tipo di LED
40 W
Frequenza di ripetizione
3.600 Hz
Angolo di proiezione
4,5°, 10°, 15 °
Ingresso DMX
Presa XLR maschio a 3 poli
Uscita DMX
Presa XLR femmina a 3 poli
RDM
Protocolli
USITT DMX-512
Modalità DMX
3 canali
Funzioni DMX
Controllo tramite musica, Master Dimmer, Strobe
DMX wireless
No
Strobo Flash Rate
1 - 20 Hz
Modalità standalone
Modalità master / slave, Controllo tramite musica
Elementi di comando
Down, Up, Enter, Mode
Indicatori
display OLED
Alimentazione
100 V - 240 V AC, 50/60 Hz
Potenza assorbita
55 W
Quanti dispositivi è possibile collegare (110V)
5
Quanti dispositivi è possibile collegare (240V)
5
Collegamento alimentazione elettrica
blue Power Twist male
Collegamento per passaggio corrente
grey Power Twist female
Materiale cassa
Metallo
Colore cassa
Nero
Classe di protezione IP
IP20
Raffreddamento
Convezione
Potenza di illuminazione
71000lx @ 1m, 11300lx @ 3m
Flusso luminoso
940 lm
Larghezza
151 mm
Altezza
130 mm
Lunghezza
220 mm
Peso
2,75 kg

Videos for this item

Spare parts

CLQS40WBRACKETBL
U-Bracket with Screws, Black for CLQS40
Loading...
CLQS40RGBWLENSKIT
2 Lens and Ring for CLQS40 RGBW/CW/WW
Loading...

Downloads

Manuali
CAD e disegni
Images & Artwork
Documenti normativi e tecnici
Certificati e dichiarazioni
Display all
Name
Type
Format
File size
CLQS40WW Instruzioni per l'uso Instruzioni per l'uso.pdf1.48 MB
CLQS40WW Ecolabel Ecolabel.pdf114.51 KB
Cameo Dichiarazione REACH Adam Hall GmbHDichiarazione REACH.pdf493.71 KB
Cameo Conformità RoHS Adam Hall GmbHConformità RoHS.pdf197.63 KB
CLQS40WW Disegno 2D Disegno 2D.dwg1.23 MB
CLQS40WW Disegno 2D Disegno 2D.pdf578.95 KB
Cameo Dichiarazione del produttore CAMEODichiarazione del produttore.pdf64.34 KB
Product ImagesImages & Artwork.zip-
