Item no.: 87401E
Guarantee: 24 months
EAN: 4049521017001
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:19" Parts Rack Drawer
Versions:
Item highlights:

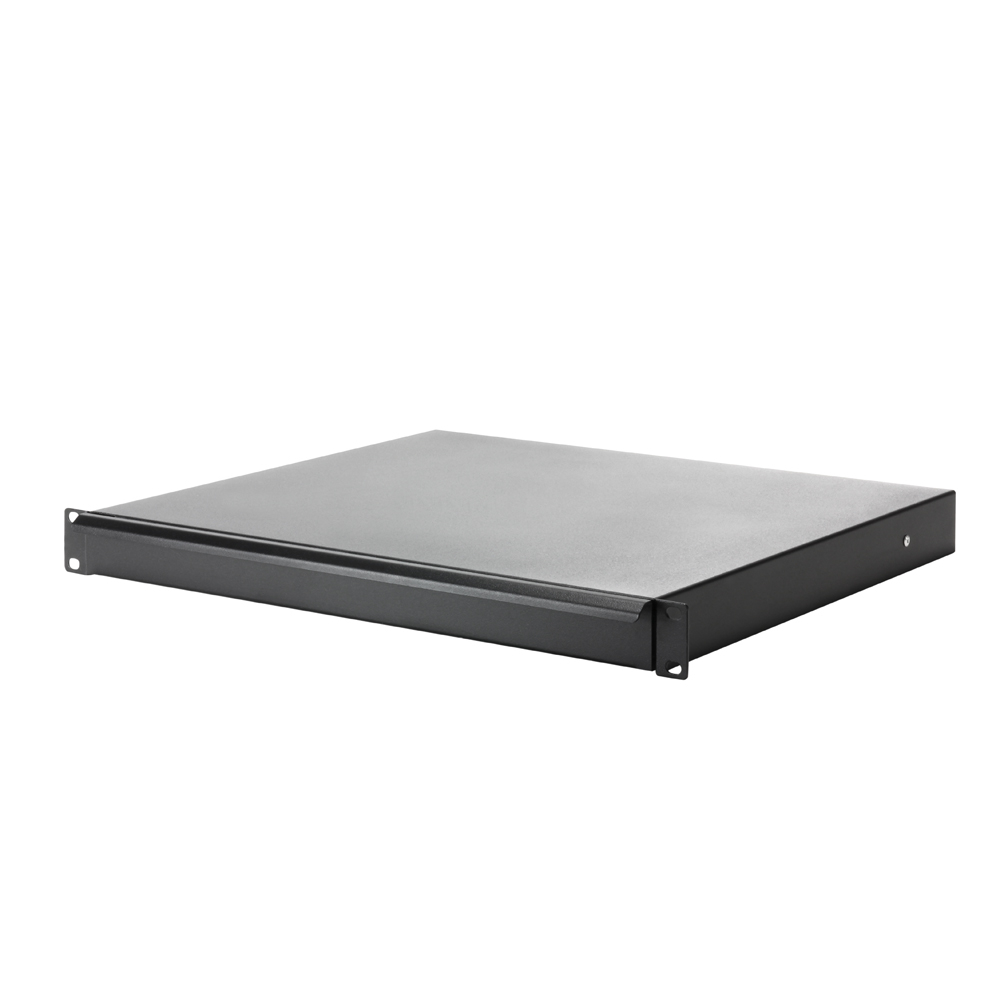

- This 19" rack drawer from our ECONOMY SERIES with a vertical height unit of 1 U is made from steel
- All ECONOMY products are made with a front-overlapping handle
- The drawer comes with a one ball bearing slide-rail and is detachable
- It comes with a 3/4-extension runner
- Our rack drawers are designed & engineered by our Adam Hall 19" Parts® crew in Germany
Specifications
Rack width
19"
Rack height
1 U
Pull-out
3/4
Maximum load
25 kg
Material
Steel
Coating
Powder coated
Colour
Black
Width
484 mm
Height
44 mm
Depth
392 mm
Inner dimension (W/H/D)
401 mm x 37 mm x 377 mm
Material thickness
1.2 mm
Weight
5.49 kg
Description
RACK DRAWER 01 ECO
Organization is half the rack!
Our 19" drawers offer the ideal solution for safe storage and organization of the accessories you need when working. Specially designed for use in 19" racks and maximize the efficiency of your rack system.
Our "Economy" version of the standard 19" drawer from Adam Hall® with 2/3 extension, on ball bearing slide-in rails.
Spare parts
8740PAD
Rubber stopper for impact damping in rack drawers
Loading...
Downloads
Manuals
Data Sheets & Specifications
CAD & Drawings
Images & Artwork
Service & Regulation Documents
Display all
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| 87401E User Manual | User Manual | 118.59 KB | |||
| 87401E Product Data Sheet | Product Data Sheet | 119.71 KB | |||
| Adam Hall 19" Parts REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Adam Hall 19" Parts RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| Adam Hall 19" Parts Tender Documents Adam Hall Stage Equipment | Tender Documents | .zip | 73.04 KB | ||
| 87401E 2D Drawing | 2D Drawing | 125.16 KB | |||
| Adam Hall 19" Parts Manufacturer's Declaration ADAM HALL | Manufacturer's Declaration | 89.42 KB | |||
| Product Images | Images & Artwork | .zip | - |
