Item no.: 87402S
Guarantee: 24 months
EAN: 4049521458811
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:19" Parts Rack Drawer
Versions:
Item highlights:
- This 19" rack drawer from our STANDARD SERIES with a vertical height unit of 2 U is made from powdercoated steel, for maximum robustness. This version is 200 mm depth and therefore shorter than our standard range
- All STANDARD products are made with a flap for locking the drawer when closed. With this flap the drawer will not open by mistake when your rack is being carried around. This drawer also comes with a lock and two keys to protect the contents against theft
- Thanks to it quick-release, the drawer is detachable very fastly
- The drawer has a full-extension runner
- Our rack drawers are designed & engineered by our Adam Hall 19" Parts® crew in Germany
Specifications
Rack width
19"
Rack height
2 U
Pull-out
Full
Maximum load
25 kg
Material
Steel
Coating
Powder coated
Colour
Black
Width
484 mm
Height
89 mm
Depth
210 mm
Inner dimension (W/H/D)
401 mm x 74 mm x 200 mm
Material thickness
2 mm
Weight
4.8 kg
Description

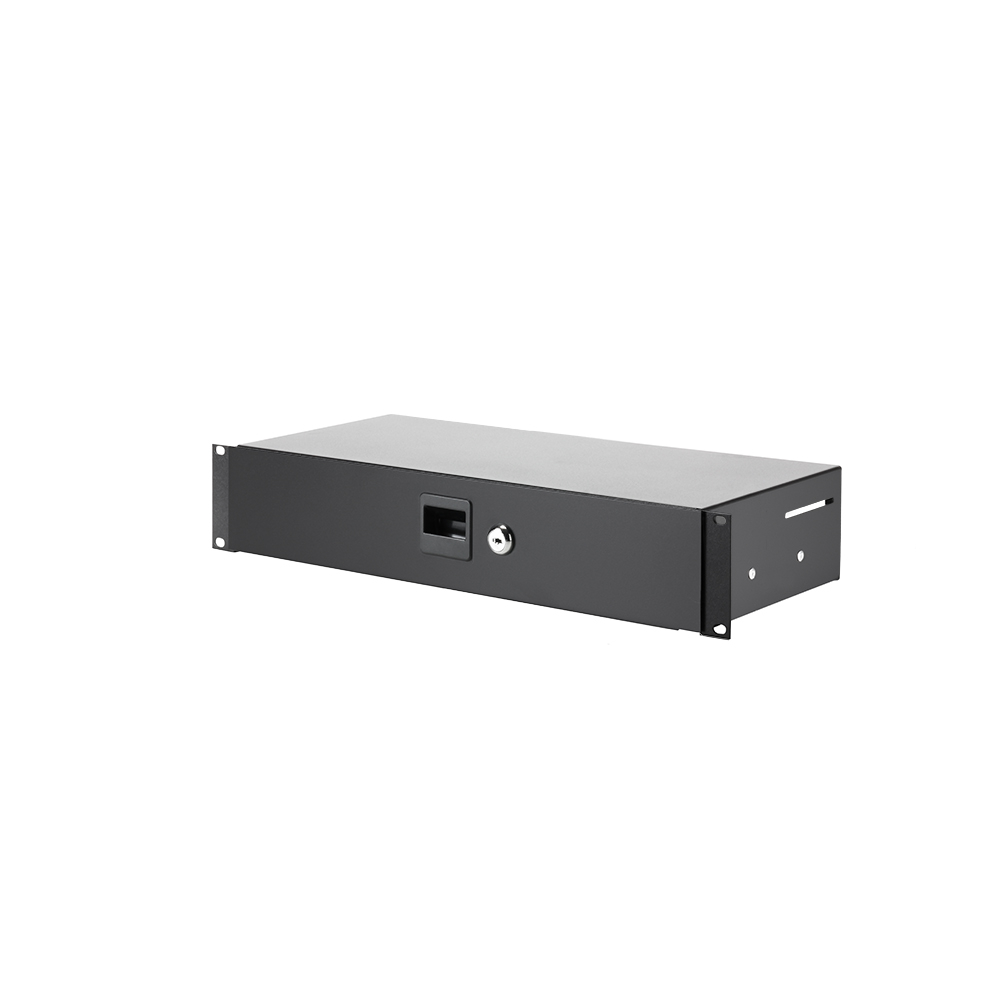

RACK DRAWER 02 SHORT
Organization is half the rack!
Our 19" drawers offer the ideal solution for safe storage and organization of the accessories you need when working. Specially designed for use in 19" racks and maximize the efficiency of your rack system.
Our "Standard" range of 19" drawers from Adam Hall® with full-extension runners on ball bearings is made of steel and is therefore robust. The drawer has a lock with two keys for secure storage of the contents, a handle with latching function and is removable.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| Adam Hall 19" Parts REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Adam Hall 19" Parts RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| Adam Hall 19" Parts Tender Documents Adam Hall Stage Equipment | Tender Documents | .zip | 73.04 KB | ||
| Adam Hall 19" Parts Manufacturer's Declaration ADAM HALL | Manufacturer's Declaration | 89.42 KB | |||
| Product Images | Images & Artwork | .zip | - |
