Item no.: 87404A
Guarantee: 24 months
EAN: 4049521017124
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:19" Parts Rack Drawer
Versions:
Item highlights:

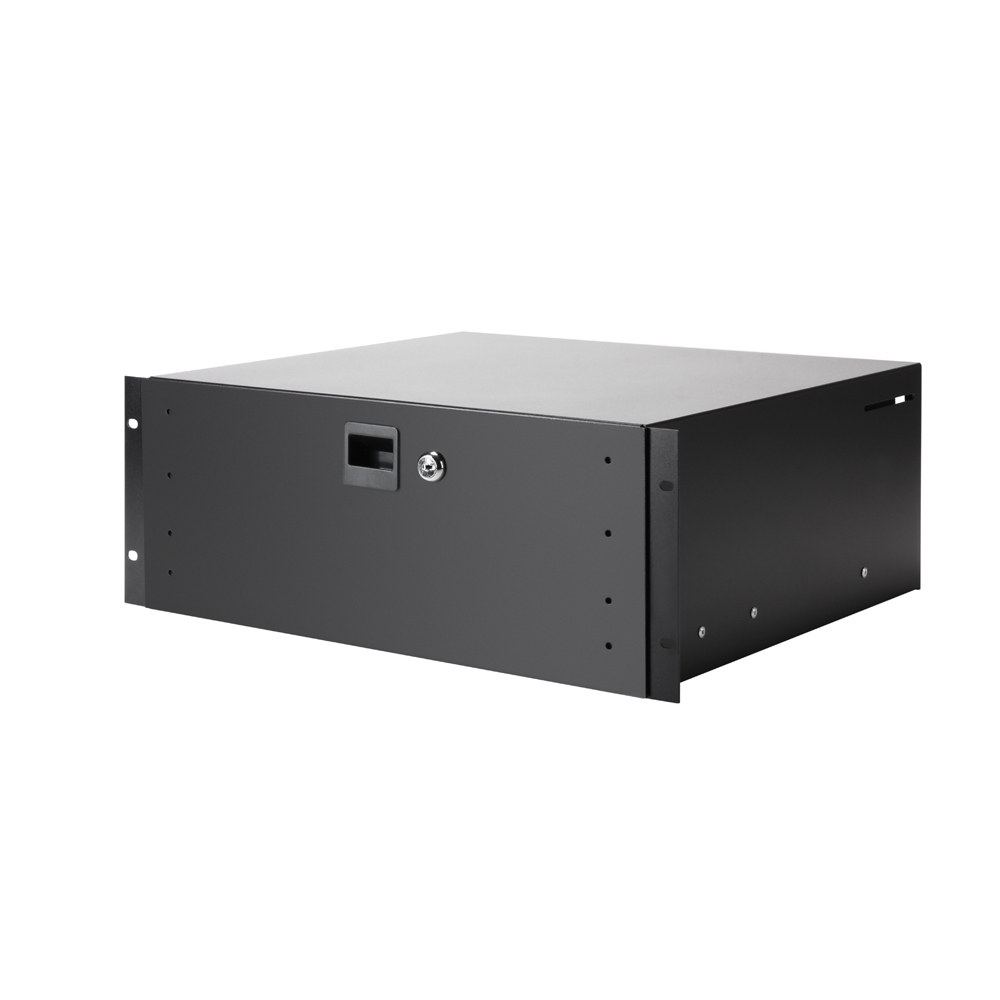

- This 19" rack drawer from our STANDARD SERIES with a vertical height unit of 4 U is made of aluminum, for minimum weight in the rack
- All STANDARD products are made with a flap for locking the drawer when closed. With this flap the drawer will not open by mistake when your rack is being carried around. This drawer also comes with a lock and two keys to protect the contents against theft
- Thanks to its quick-release, the drawer is detachable very fastly
- The drawer has a full-extension runner and can be loaded up to 25 kg
- Our rack drawers are designed & engineered by our Adam Hall 19" Parts® crew in Germany
Specifications
Rack width
19"
Rack height
4 U
Pull-out
Full
Maximum load
25 kg
Material
Aluminium
Coating
Powder coated
Colour
Black
Width
484 mm
Height
178 mm
Depth
392 mm
Inner dimension (W/H/D)
401 mm x 175 mm x 373 mm
Material thickness
2 mm
Weight
4.1 kg
Description
RACK DRAWER 04 ALU
Organization is half the rack!
Our 19" drawers offer the ideal solution for safe storage and organization of the accessories you need when working. Specially designed for use in 19" racks and maximize the efficiency of your rack system.
Our "Alu" range of 19" drawers from Adam Hall® with full-extension runners on ball bearings is made of steel and is therefore robust. The drawer has a lock with two keys for secure storage of the contents, a handle with latching function and is removable.
Spare parts
1658
Closure for rack drawers and service flaps
Loading...
1642
Cylinder Lock for Rack Drawers
Loading...
8740PAD
Rubber stopper for impact damping in rack drawers
Loading...
Downloads
Manuals
Data Sheets & Specifications
CAD & Drawings
Images & Artwork
Service & Regulation Documents
Display all
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| 87404A User Manual | User Manual | 116.83 KB | |||
| 87404A Product Data Sheet | Product Data Sheet | 97.83 KB | |||
| Adam Hall 19" Parts REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Adam Hall 19" Parts RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| Adam Hall 19" Parts Tender Documents Adam Hall Stage Equipment | Tender Documents | .zip | 73.04 KB | ||
| 87404A 2D Drawing | 2D Drawing | 172.97 KB | |||
| Adam Hall 19" Parts Manufacturer's Declaration ADAM HALL | Manufacturer's Declaration | 89.42 KB | |||
| Product Images | Images & Artwork | .zip | - |
