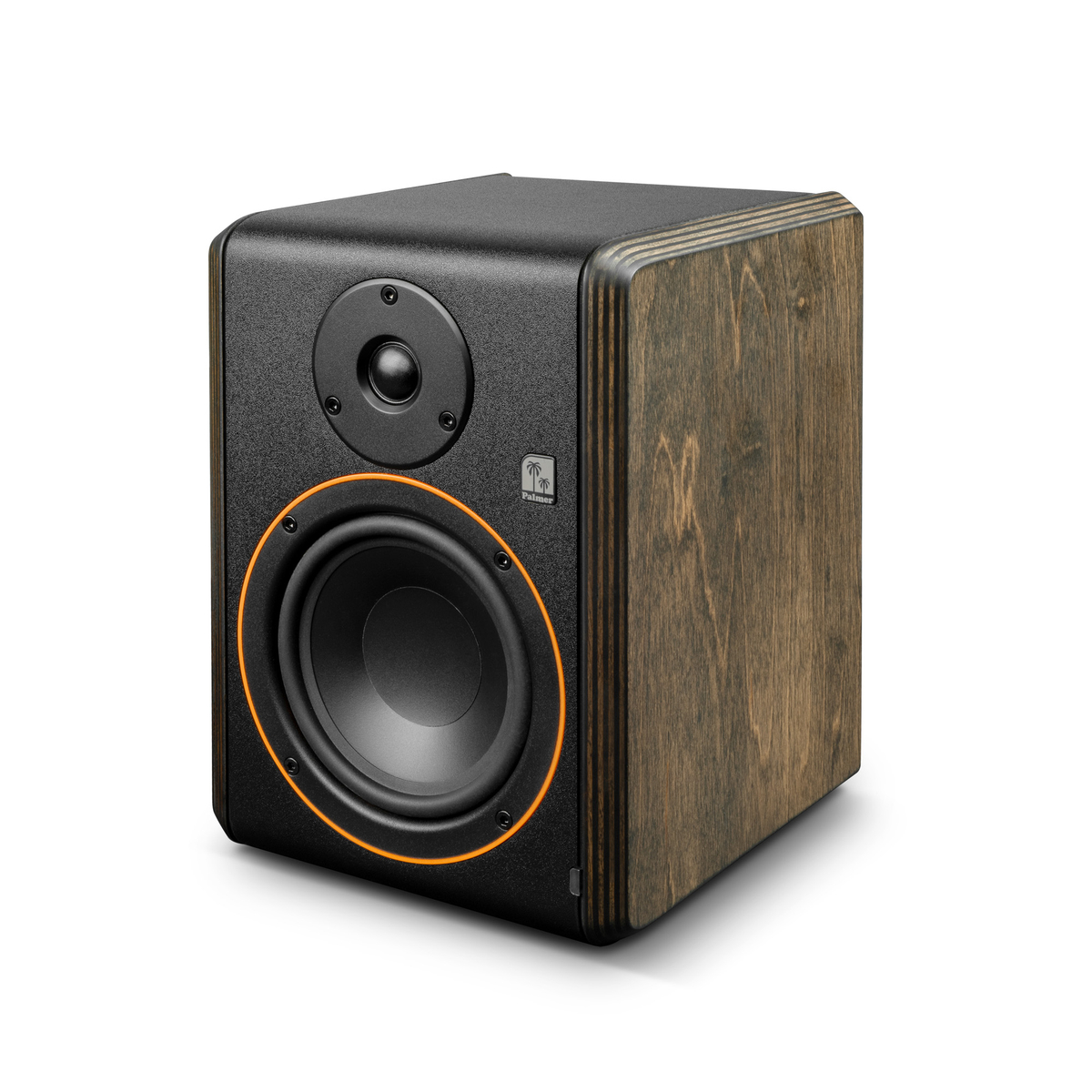

STUDIMON 5

STUDIMON 5

Powered 5" Nearfield Studio Monitor

Item no.: PSTUDIMON5

Guarantee: 60 months

EAN: 4049521402890

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:Palmer Studio Monitors

Item highlights:

  • 5" woofer and 0.75" soft dome tweeter
  • Bass reflex design
  • 60-W RMS bi-amping power amplifier
  • Frequencyrange 50 Hz - 20 kHz
  • Balanced XLR and 6.35 mm stereo jack input
  • Compact design
  • Elegant and robust housing

Specifications

Product type
Other Studio and Recording Equipment
Type
Studio monitor
Low/mid Woofer dimensions
5 "
Woofer dimensions (mm)
127 mm
Woofer magnet
80 mm Ferrit
Woofer brand
Custom-made
HF driver dimensions
0.75 "
HF driver dimention (mm)
19 mm
HF driver magnet
28 mm Neodym
HF driver brand
Custom-made
Amplifier
Class A/B
Dispersion (H x V)
120 ° x 120 °
System Power (RMS)
2 x 30 W
Frequency response
70 - 20000 Hz (-3dB)
Frequency range
50 - 20000 Hz
Crossover frequency
2500 Hz
Max. SPL
103 dB
Signal-to-noise ratio
85 dB
Protection circuits
Short circuit, Overtemperature
Input impedance
10,000 Ohm(s)
Controls
volume control, mains switch (on/off)
Indicators
orange (LED)
Line input connectors
XLR (balanced), 6.3 mm stereo jack (balanced)
Power supply
Switching power supply
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Cabinet material
Birch Plywood, MDF
Housing Wall Strength
15 mm
Cabinet surface
stained, Laminated
Cabinet colour
Black
Cabinet construction
Bass Reflex
Width
190 mm
Height
268 mm
Depth
215 mm
Weight
3,95 kg
Accessories (included)
Power cord

Description

STUDIMON 5

POWERED 5" NEARFIELD STUDIO MONITOR

When producing and mixing your music or editing your videos you’ll need studio monitors with absolutely honest sound reproduction where all elements can be heard separately from each other. The STUDIMON5 nearfield studio monitors offer accurate sound reproduction, two powerful 30-watt class AB power bi-amplifiers and an elegant design that seamlessly complements every studio environment — even at home.

With its 3/4" silk dome tweeter, you’ll hear every detail in the stereo field of your mix up to 20 kHz. The magnetically shielded 5" woofer and, rear bass-reflex aperture will give you deep and defined bass frequencies down to 50 Hz. This is all you need to make your low end clear and pop out on most consumer systems, including smartphones.

The back panel provides all needed connections in every Home- and professional Studio environment. Balanced XLR and 6.35 mm stereo jack inputs guarantee disruption-free signal transmission, while a practical volume controller rounds off the loudspeaker's features.

Whether you're making music, creating content or your next live stream, STUDIMON5 ensures a true representation of your mix, so you can make confident mixing decisions to be true to your sound.

Videos for this item

Downloads

Manuals
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name
Type
Format
File size
PSTUDIMON5 User Manual User Manual.pdf2.08 MB
Palmer REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
Palmer RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
PSTUDIMON5 2D Drawing 2D Drawing.dxf1.91 MB
PSTUDIMON5 2D Drawing 2D Drawing.pdf135.32 KB
Palmer Catalogue / Brochure Highlight Brochure - Audio ToolsCatalogue / Brochure.pdf8.17 MB
Palmer Catalogue / Brochure Highlight Brochure - Guitar ToolsCatalogue / Brochure.pdf10.9 MB
Palmer Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
Palmer Catalogue / Brochure Palmer 2023Catalogue / Brochure.pdf30.99 MB
Palmer Catalogue / Brochure Highlight Brochure - Studio GearCatalogue / Brochure.pdf10.09 MB
PSTUDIMON5 Review Infomusic.plReview.pdf3.42 MB
PSTUDIMON5 Award Red DotAward.pdf209.94 KB
