THUNDER® WASH 100 RGB

3 in 1 Strobe, Blinder and Wash Light 132 x 0.2 W RGB

Item no.: CLTW100RGB

Guarantee: 24 months

EAN: 4049521189630

Sliding scale: 1

Unit: Piece

Packaging unit: 6

Series:THUNDER

Versions:

Questions about the item?

Item highlights:

Strobe, Blinder and Wash Light all in one
132 RGB SMD LEDs
1 to 30 flashes/sec adjustable
DMX, Sound- and manual control
Master, Slave and Standalone operation
Rugged metal housing with universal mounting bracket
Low power consumption

Features

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

Specifications

Product type

LED Strobes

Type

Strobe / Blinder / Washer

Colour spectrum

RGB

Number of LEDs

132

LED type

0.2 W

Dispersion

80 °

Refresh rate

1 - 30 Hz

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

6-channel, 2-channel 2, 3-channel 3, 4-channel, 3-channel 1, 1-channel, 2-channel 1, 3-channel 2

DMX Functions

Flash rate, Dimmer, Flash duration

Standalone modes

sound control, Flash duration, slave mode, Dimmer Mode

Controls

Mode, Value Down, Value Up

Indicators

LED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

30 W

Power supply connector

IEC power connector male

Housing material

Metal

Cabinet colour

Black

Fuse

F3AL / 250 V

Width

310 mm

Height

70 mm

Depth

70 mm

Weight

1,4 kg

Description

THUNDER® WASH 100 RGB

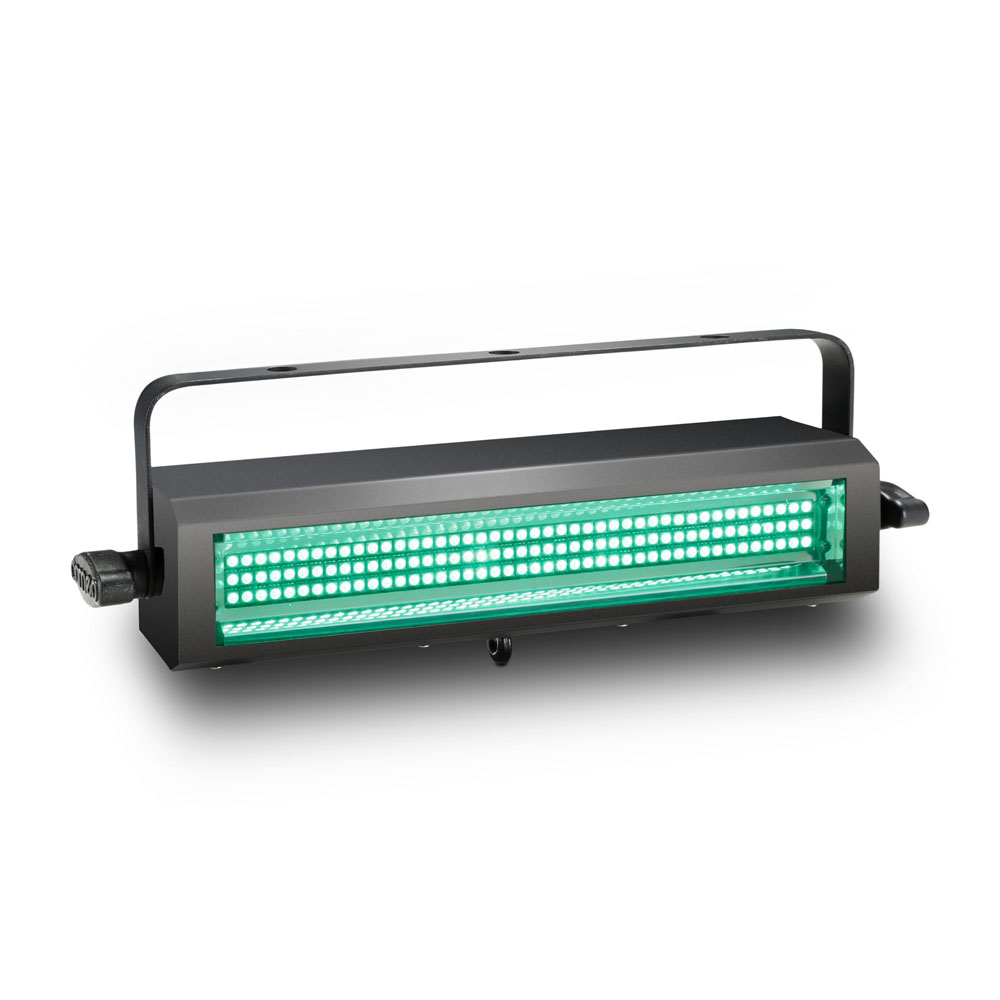

The Thunder Wash 100 RGB is a Strobe, Blinder and Wash Light all in one. It is equipped with 132 RGB 0.2 Watt SMD LEDs, with an 80° beam angle and features a compact black metal housing with universal mounting bracket.

The Thunder Wash 100 RGB comes with 3-pin XLR sockets for DMX input and output, 8 DMX modes with Dimmer, Flash frequency and duration as well as the ability to operate as a Master, Slave, or Standalone. An easy-to-read LED display with buttons for Mode, Enter, Up, and Down is used for manual operation, while the built-in microphone is used for Sound control.
