VIBZ 8 DC

VIDEO

VIBZ 8 DC

8 Channel Mixing Console with DFX and Compressor

Item no.: LDVIBZ8DC

Guarantee: 24 months

EAN: 4049521195198

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:VIBZ

Versions:

Questions about the item?

Item highlights:

8-channel mixer with 100 digital effects presets
4 microphone channels and 3 stereo line inputs
Effective 3-band EQ
Sliding adjustable compressor
Master, Monitor and headphone outputs
Securely fastening external power supply

Specifications

Product type

Mixers

Type

Live

Channels

8

Mono Mic and Line Input Channels

4

Mono Mic input connectors

6.3 mm TRS, XLR

Channel Inserts

2

Channel Insert Connectors

6.3 mm TRS

Mono Mic Input Type

Electronically balanced

Mono Mic Input Frequency Range

10 Hz

Amplification Range mono Mic Input

0 - 50 dB

Mono Mic Input Input THD-N

0.0058%

Mono Mic Input Impedance

4k Ohm(s)

Mono Mic Input S/N Ratio

113 dB

Mono Line Input Type

Electronically balanced

Mono Line Input Frequency Range

10 Hz

Amplification Range mono Line Input

0 - 50 dB

Mono Line Input Input THD-N

0.0045 %

Mono Line Input Impedance

21k Ohm(s)

Mono Line Input S/N Ratio

113 dB

Mono Channel Equalizer High

+/- 15 dB @ 12000 Hz

Mono Channel Equalizer Mid

+/- 15 dB @ 2500 Hz

Mono Channel Equalizer Low

+/- 15 dB @ 80 Hz

Controls Mono Mic and Line Input Channels

Channel Volume, Compressor (channel 1+2), Low Cut (75 Hz), Gain, AUX (DFX) Post, 3-band EQ (High, Mid, Low), pan

Phantom power

48 V DC switchable

Stereo Line Input Channels

3

Stereo Line Input Connectors

6.3 mm TRS

Stereo Line Input Type

Unbalanced

Stereo Line Input Frequency Range

10 - 54000 Hz

Amplification Range stereo Line Input

0 - 50 dB

Stereo Line Input Input THD-N

0.0045 %

Stereo Line Input Impedance

3,7k Ohm(s)

Stereo Line Input S/N Ratio

116 dB

Stereo channel equalizer treble

+/- 15 dB @ 12000 Hz

Stereo channel equalizer mids

+/- 15 dB @ 2500 Hz

Stereo channel equalizer bass

+/- 15 dB @ 80 Hz

Controls Stereo Line Input Channels

Gain, Channel Volume, 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Balance, Low Cut

AUX / Effects Send Channels

1

AUX / Effects Send Connectors

6.3 mm stereo jack unbalanced

Stereo AUX Return Channels

1 x stereo

Stereo AUX Return Connectors

2 x 6.3 mm TRS

Stereo Tape Out Channel

1 x stereo

Stereo Tape Out Connectors

2 x RCA (Cinch)

Stereo Tape In Channel

1 x stereo

Stereo Tape In Connenctors

2 x RCA (Cinch)

Unbalanced stereo Main Outputs

1

Unbalanced stereo Main Output Connections

6.3 mm TRS

Unbalanced Stereo Main Out Impedance

120 Ohm(s)

Max. Unbalanced Stereo Main Out Level

20 dBu

Stereo Control Room Out

1

Stereo Control Room Out Connectors

6.3 mm TRS

Headphones ouput

1

Headphones outputs

6.3 mm TRS

Digital Effects Processor

Yes, 24-bit AD/DA Resolution

Number of Presets

100

Footswitch Connector DFX Mute

6.3 mm TRS

Main section controls

Phones / Control Room Volume, DFX To Main Volume, DFX Presets, Stereo Return Volume, DFX Mute Schalter, Master Volume, Phantom Power

Indicators

8-segment Level Meter, Phantom Power, Channel Peak, Power, DFX Peak / Mute

Power supply

18V DC - 1 A, External PSU, 230 V

Width

265 mm

Height

78 mm

Depth

352 mm

Weight

2,3 kg

Description

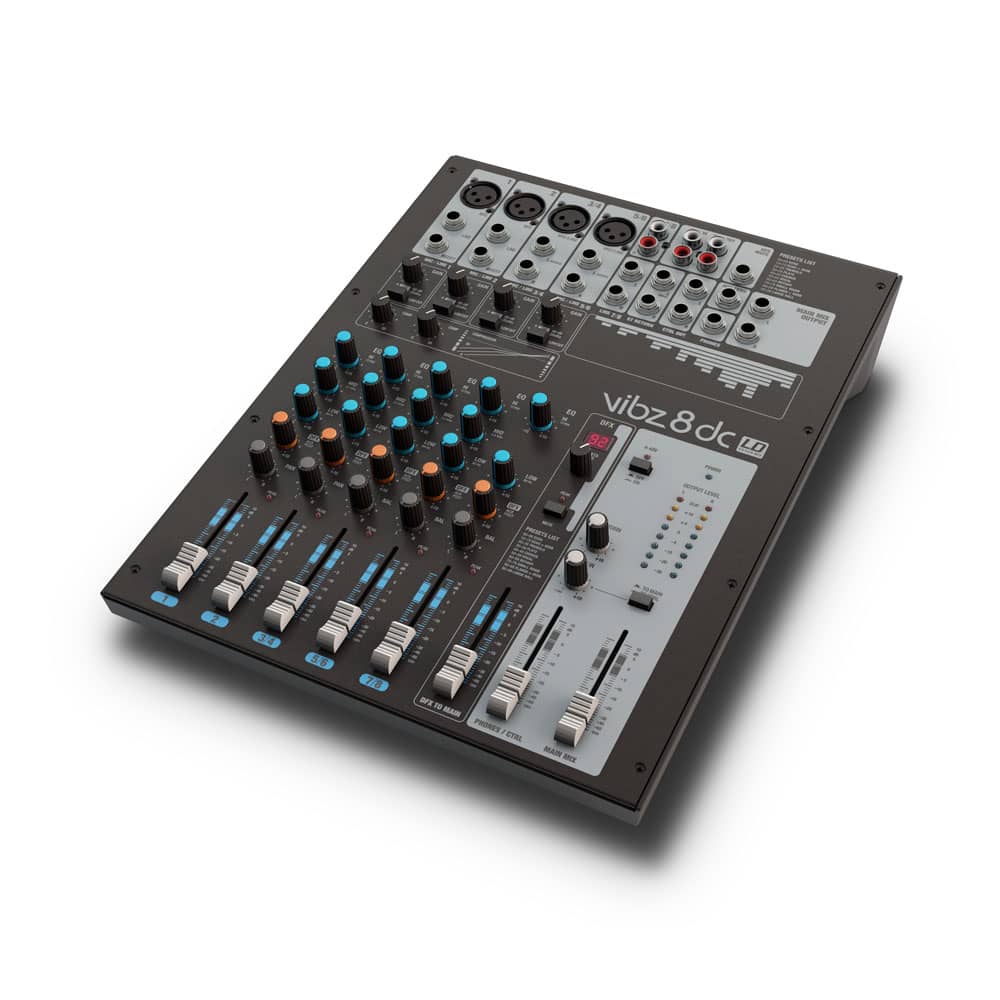

VIBZ 8 DC

Four balanced microphone inputs with high-quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 into a flexible sound control unit.

The microphone channels are switchable to line level and are equipped with high-quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the VIBZ 8 has very precise 3-band EQs with practical selectable mids.

The master section of the mixer features an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer.

It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 8 on microphone stands are available as accessories.

Videos for this item

Spare parts

LDVIBZ68PSU

Power Supply for LDVIBZ6 / LDVIBZ8

Downloads

Manuals

Images & Artwork

Catalogues & Publications

Service & Regulation Documents

Display all

	Name	Type	Format	File size
	LDVIBZ8DC User Manual	User Manual	.pdf	4.09 MB
	LD Systems REACh Declaration Adam Hall GmbH	REACh Declaration	.pdf	493.71 KB
	LD Systems RoHS Confirmation Adam Hall GmbH	RoHS Confirmation	.pdf	197.63 KB
	LD Systems Catalogue / Brochure Highlight Brochure Install	Catalogue / Brochure	.pdf	6.51 MB
	LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025	Catalogue / Brochure	.pdf	24.23 MB
	LD Systems Catalogue / Brochure Highlight Brochure DJ & Music	Catalogue / Brochure	.pdf	4.4 MB
	LD Systems Manufacturer's Declaration LD-SYSTEMS	Manufacturer's Declaration	.pdf	66.91 KB
	Product Images	Images & Artwork	.zip	-
