Item no.: LDWIN42AD
Guarantee: 24 months
EAN: 4049521132940
Sliding scale: 1
Unit: Piece
Packaging unit: 3
Series:WIN 42
Item highlights:

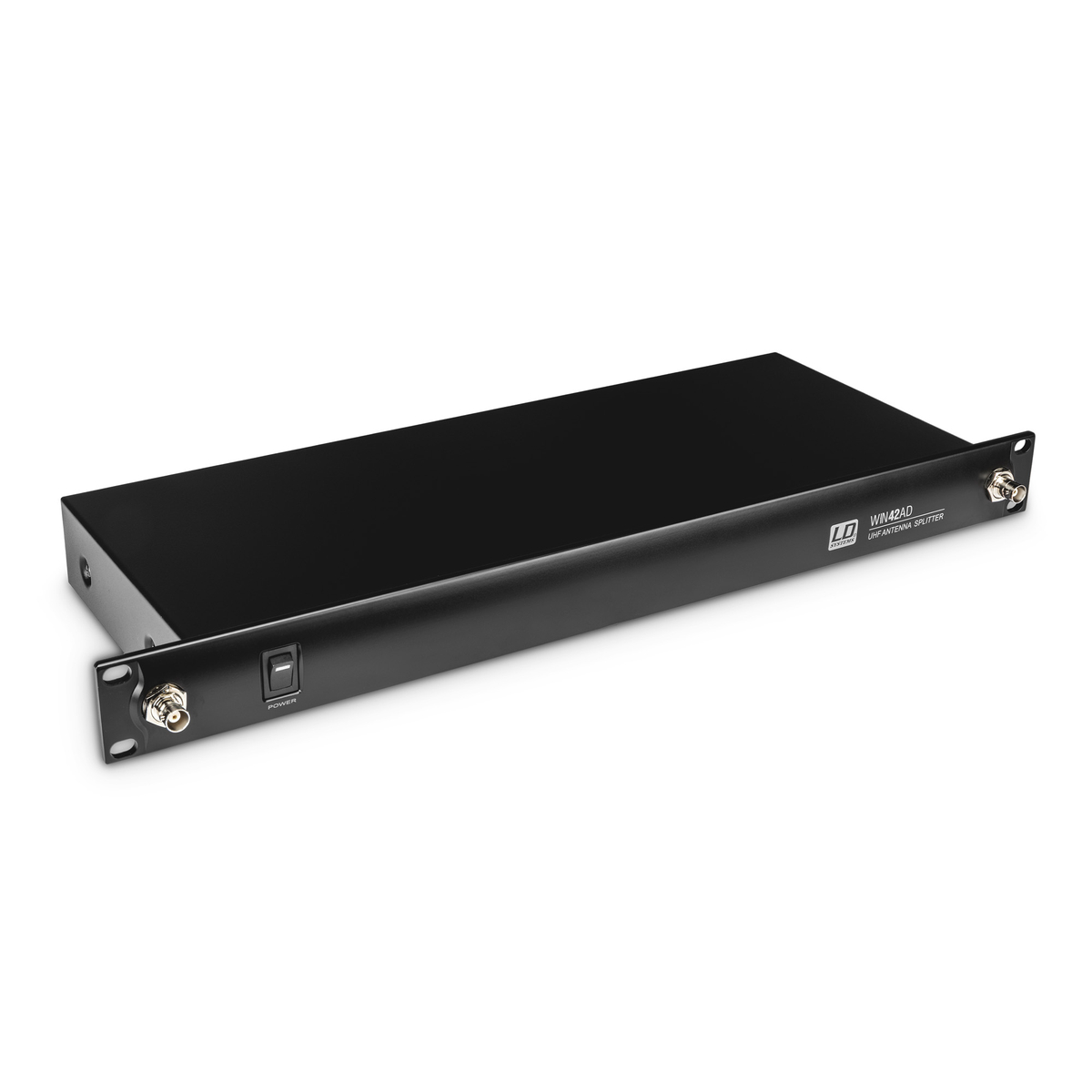

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.
Specifications
Product type
Wireless Microphone System Accessories
Type
Antenna Splitter
Frequency band
500 - 900 MHz
Frequency bandwidth
400 MHz
Signal gain
3 dB
Antenna inputs
2
Antenna input connection
BNC
Input impedance
50 Ohm(s)
Power supply for antenna booster
9 V
Antenna outputs
4 x 2
Antenna output connection
BNC
Output impedance
50 Ohm(s)
Power supply for radio receiver
4 x 12 - 18 V DC V
Power supply
12 - 18 V DC, 3A
Operating voltage
12 V DC - 18 V DC (100 mA)
Width
482 mm
Height
44.4 mm
Depth
160 mm
Weight
4,672 kg
Accessories (included)
2 x BNC adapter, Power supply, Plastic case, 4 x DC cable, 0.5m, 10 x BNC Kabel, 0.5m, 4 x Output 600 mA
Spare parts
LDRB65PS
Power Supply for LDRB65 Roadboy 65
