Item no.: CLZW300TW
Guarantee: 24 months
EAN: 4049521882357
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:ZENIT® Series
Versions:
Item highlights:
- 21 x 12 W Tunable White LEDs with 20,000 lm total output for intensive white mixing
- 18° beam and 35° field angles without diffuser
- Optional SnapMag® filter frames for 25°, 45° or 100° and elliptical 60° x 10° beam angle selection and installation without tools or dismantling
- Built-in 2.4 GHz W-DMX™ transceiver
- Wireless master and slave operation
- W-DMX™, RDM, DMX or IR control additionally standalone modes with automated programs
- IP65 rating for outdoor use
- Low-noise temperature controlled fans for optimized operation
- Colour temperature from 2,600 K to 6,500 K
Features
This product is ETL certified.
Specifications
Description

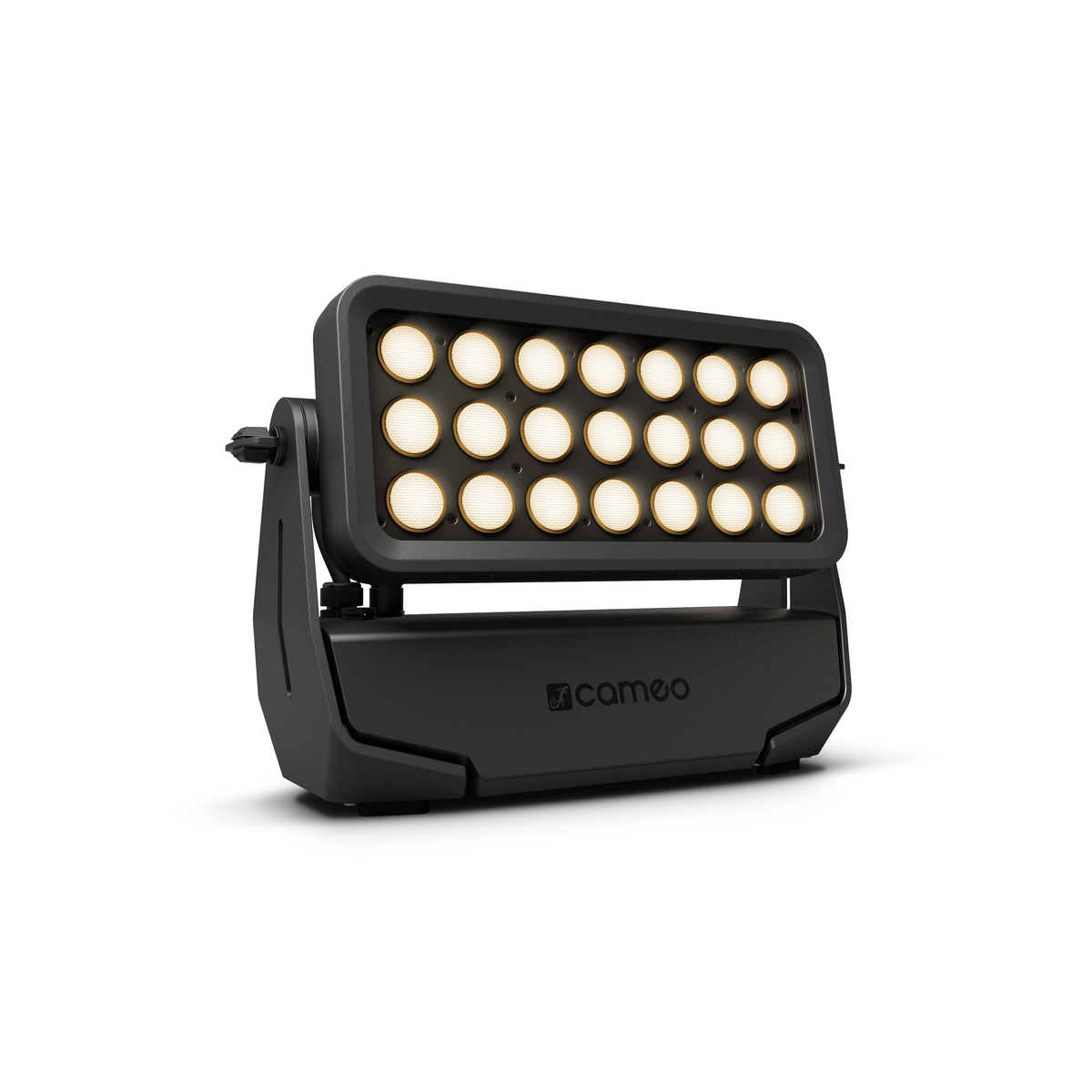

ZENIT® W300 TW
Equipped with a total of 21 x 12 W tunable white LEDs for a huge 20,000 lm output, the Cameo ZENIT® W300 TW is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability, it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control.
For maximum versatility, the ZENIT® W300 TW comes with Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers and a 4-way barn door are available as dedicated accessories.
Featuring a 16-bit technology for high-resolution white mixing and dimming and an 18° beam spread, the ZENIT® W300 TW projects highly intense, uniform washes. With white temperature correction, selectable dimming curves and dimming response, the fixture is the perfect tool for truly professional lighting.
The ZENIT® W300 TW's die cast aluminium housing integrates temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. The fixture comes with an IR remote control, omega mounting bracket and power cord.
Spare parts
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| CLZW300TW User Manual | User Manual | 8.7 MB | |||
| CLZW300TW Product Data Sheet | Product Data Sheet | 830.12 KB | |||
| Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| CLZW300TW Declaration of Conformity EG | Declaration of Conformity | 313.16 KB | |||
| CLZW300TW DMX Control Table | DMX Control Table | 47.09 KB | |||
| CLZW300TW Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 27.82 KB | ||
| CLZW300TW 2D Drawing | 2D Drawing | 414.36 KB | |||
| CLZW300TW 2D Drawing | 2D Drawing | 4.52 MB | |||
| CLZW300TW 2D Drawing | 2D Drawing | .dxf | 17.99 MB | ||
| Cameo Catalogue / Brochure CAMEO Brand Flyer | Catalogue / Brochure | 387.56 KB | |||
| Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025 | Catalogue / Brochure | 24.23 MB |
Nothing there?
You can find more downloads in our download centre.
