Item no.: CLZW600
Guarantee: 24 months
EAN: 4049521228292
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:ZENIT® Series
Versions:
Item highlights:
- 40 x 15 W RGBW LEDs with 21,000 lm total output for uniform and powerful colour mixing
- 18° beam and 35° field angles without diffuser
- Optional SnapMag® filter frames for 25°, 45°, 100° or elliptical 60° x 10° beam angle selection and installation without tools or dismantling
- Built-in 2.4 GHz W-DMX™ transceiver
- Wireless master-and-slave function
- Wireless DMX, RDM (via DMX and W-DMX™), standard DMX plus standalone modes with automated programs
- IP65 rating for outdoor use
- Temperature controlled fans for optimized operation and low noise
- 16-bit technology for high-resolution colours and dimming
Features
RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.
Specifications
Description

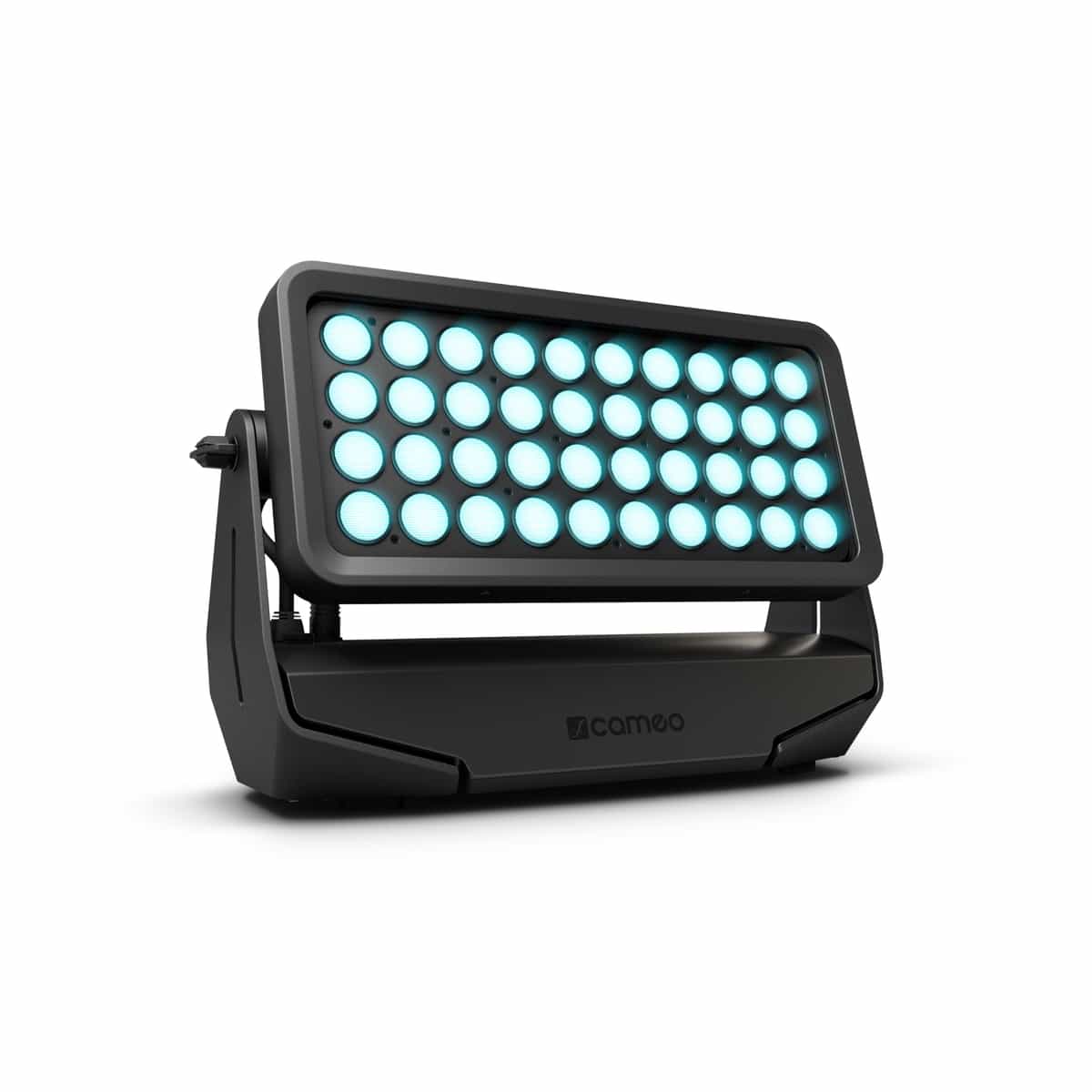

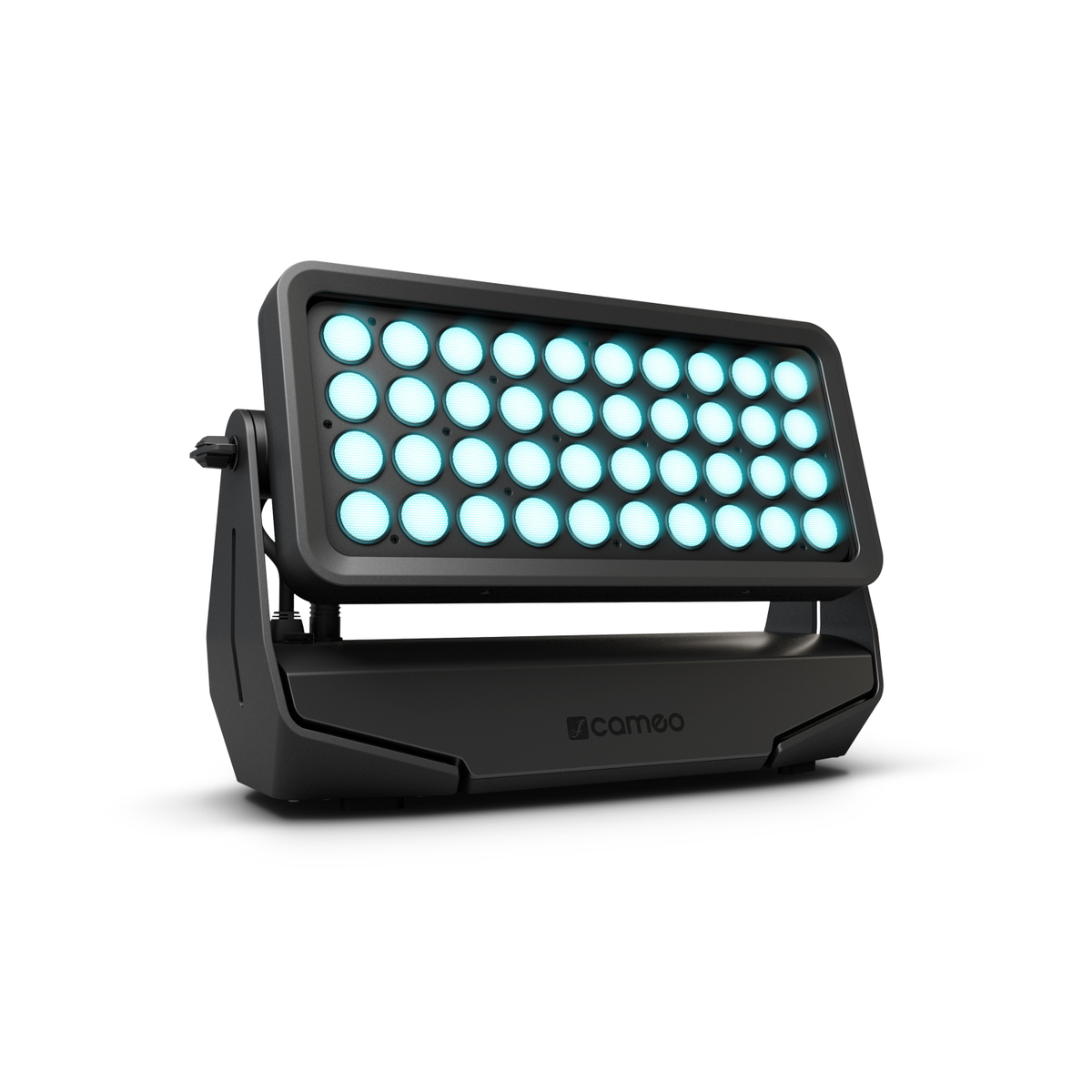

ZENIT® W600
Equipped with a total of forty 15 W RGBW LEDs for a massive 21,000 lm output, the Cameo ZENIT® W600 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.
For maximum versatility, the ZENIT® W600 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers providing a choice of 25°, 45°, 100° or elliptical 60° x 10° beam angles and a 4-way barn door are available as dedicated accessories.
Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 18° beam spread, the ZENIT® W600 projects hugely intense, uniform washes. With colour temperature and individual LED colour correction, four selectable dimming curves and fully adjustable halogen lamp-like dimming response, the fixture is the perfect tool for highly professional lighting.
The ZENIT® W600's die cast aluminium housing integrates three temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. A security lock prevents unauthorized access to the luminaire's menu settings.
Videos for this item
Spare parts
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| CLZW600 User Manual | User Manual | 2.68 MB | |||
| CLZW600 Quick Start Guide Communication Sheet | Quick Start Guide | 656.86 KB | |||
| CLZW600 Product Data Sheet | Product Data Sheet | 3.07 MB | |||
| CLZW600 Photometric Data Sheet | Photometric Data Sheet | 527.36 KB | |||
| Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| CLZW600 Declaration of Conformity EG | Declaration of Conformity | 126.65 KB | |||
| CLZW600 DMX Control Table | DMX Control Table | 57.92 KB | |||
| CLZW600 Fixture Library Daslight V3.10 | Fixture Library Daslight | .zip | 74.49 KB | ||
| CLZW600 Fixture Library Daslight V3 | Fixture Library Daslight | .zip | 53.05 KB | ||
| CLZW600 Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 15.44 KB | ||
| CLZW600 Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 14.35 KB |
