Item no.: CLZW600DSMD
Guarantee: 24 months
EAN: 4049521610851
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:ZENIT® Series
Versions:
Item highlights:
- Featuring a total of 576 daylight SMD LEDs with up to zu 90,000 lm luminous flux for extreme brightness
- 48 individually controllable segments
- Boost in blinder mode for temporarily increased output
- IP65 rated for permanent outdoor use
- High-resolution dimmer response thanks to 16-bit technology
- 5,700 K colour temperature and CRI <80
- Integrated 2.4 GHz W-DMX™ transceiver
- Control via W-DMX™, DMX and RDM (via DMX and W-DMX™)
- Temperature-controlled fans for optimised low-noise operation
Features
The calibration chip ensures that the mixed colours of the lamp are reproduced identically when using several fixtures, thereby preventing any deviations in colour between the lamps.
Specifications
Description

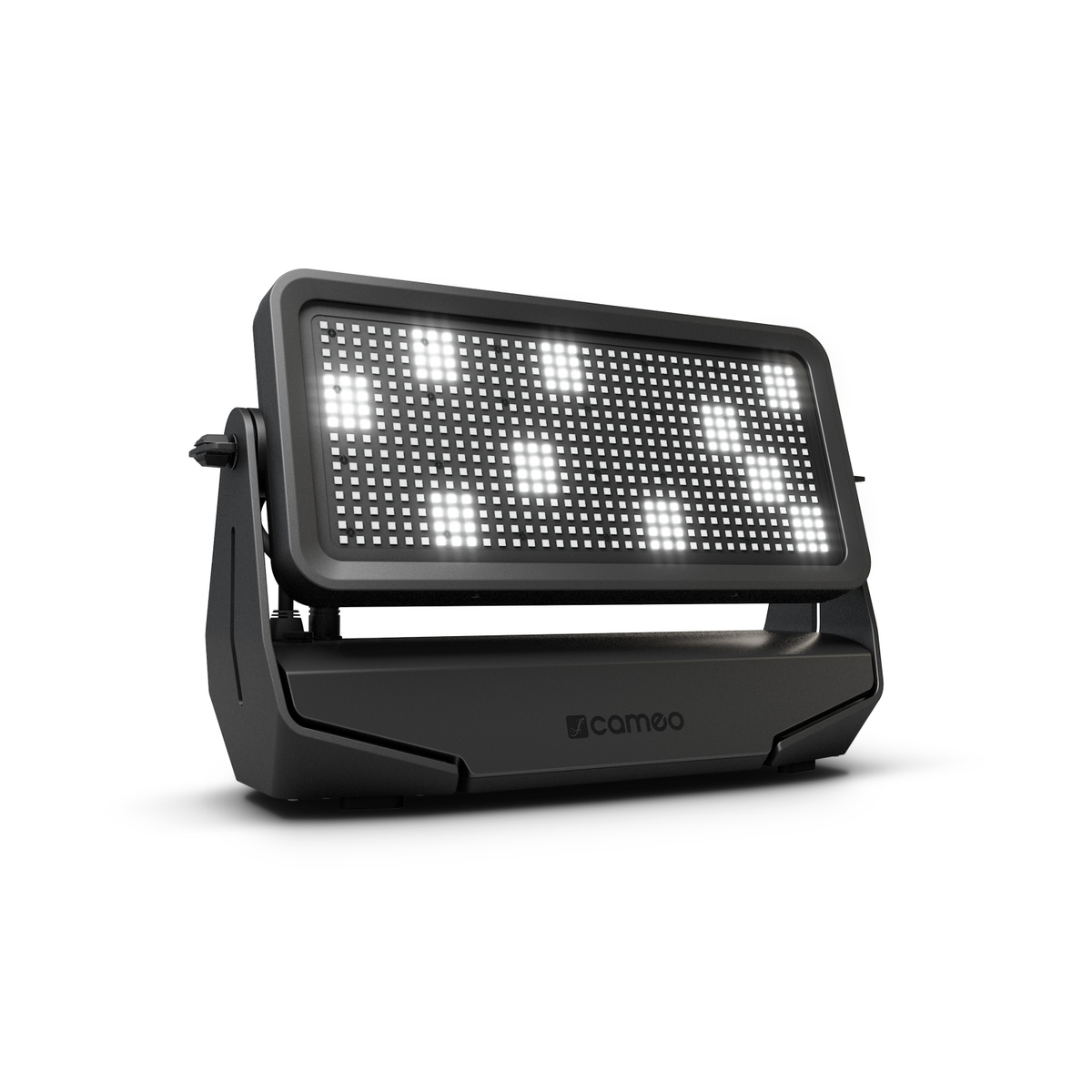

ZENIT® W600 D SMD
With the ZENIT® W600 D SMD, you, as a lighting and event technician, can deliver an extremely bright, daylight-like floodlight with a high output of up to 90,000 lm. The ZENIT® fixture has been designed in accordance with protection class IP65 for demanding, permanent outdoor use at medium-sized and large professional events up to the lighting of television shows. The W600 SMD is equipped with 576 SMD
Wireless control and fine segment controlThe ZENIT® W600 D SMD can be controlled via RDM and DMX. A 2.4 GHz W-DMX™ transceiver from Wireless Solution Sweden is also integrated to enable cable-free control as well as wireless master and slave operation. The daylight model W600 D SMD facilitates precise, independent control of a total of 48 segments via pixel control, even across multiple spotlights.
High-resolution dimmer response with 16-bit technologyAdvanced 16-bit technology ensures a high-resolution dimmer response. You can choose between four dimmer curves, and you can also simulate the dimming characteristics of a classic halogen lamp. You also benefit from the wide beam angle of 104° to ensure intense and consistent floodlighting.
Sophisticated cooling conceptThree temperature-controlled fans provide reliable cooling in the cast aluminium housing. Depending on the sound sensitivity of the event, you can choose between three preconfigured modes, such as automated fan control or convection cooling for noiseless operation.
The ZENIT® W600 D SMD is your perfect tool for highly professional lighting, with features including output capability, stage-ready control and ease of use.?
Videos for this item
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| CLZW600DSMD User Manual | User Manual | 5.45 MB | |||
| CLZW600DSMD Product Data Sheet | Product Data Sheet | 921.98 KB | |||
| CLZW600DSMD Photometric Data Sheet | Photometric Data Sheet | 520.64 KB | |||
| Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| CLZW600DSMD Declaration of Conformity EG | Declaration of Conformity | 378.14 KB | |||
| CLZW600DSMD DMX Control Table | DMX Control Table | 68.16 KB | |||
| CLZW600DSMD Fixture Library Daslight | Fixture Library Daslight | .zip | 222.14 KB | ||
| CLZW600DSMD Fixture Library GDTF | Fixture Library GDTF | .zip | 1.23 MB | ||
| CLZW600DSMD Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 24.29 KB | ||
| CLZW600DSMD Light Distribution Curves | Light Distribution Curves | .zip | 5.42 KB | ||
| CLZW600DSMD 2D Drawing | 2D Drawing | .dxf | 8.35 MB |
