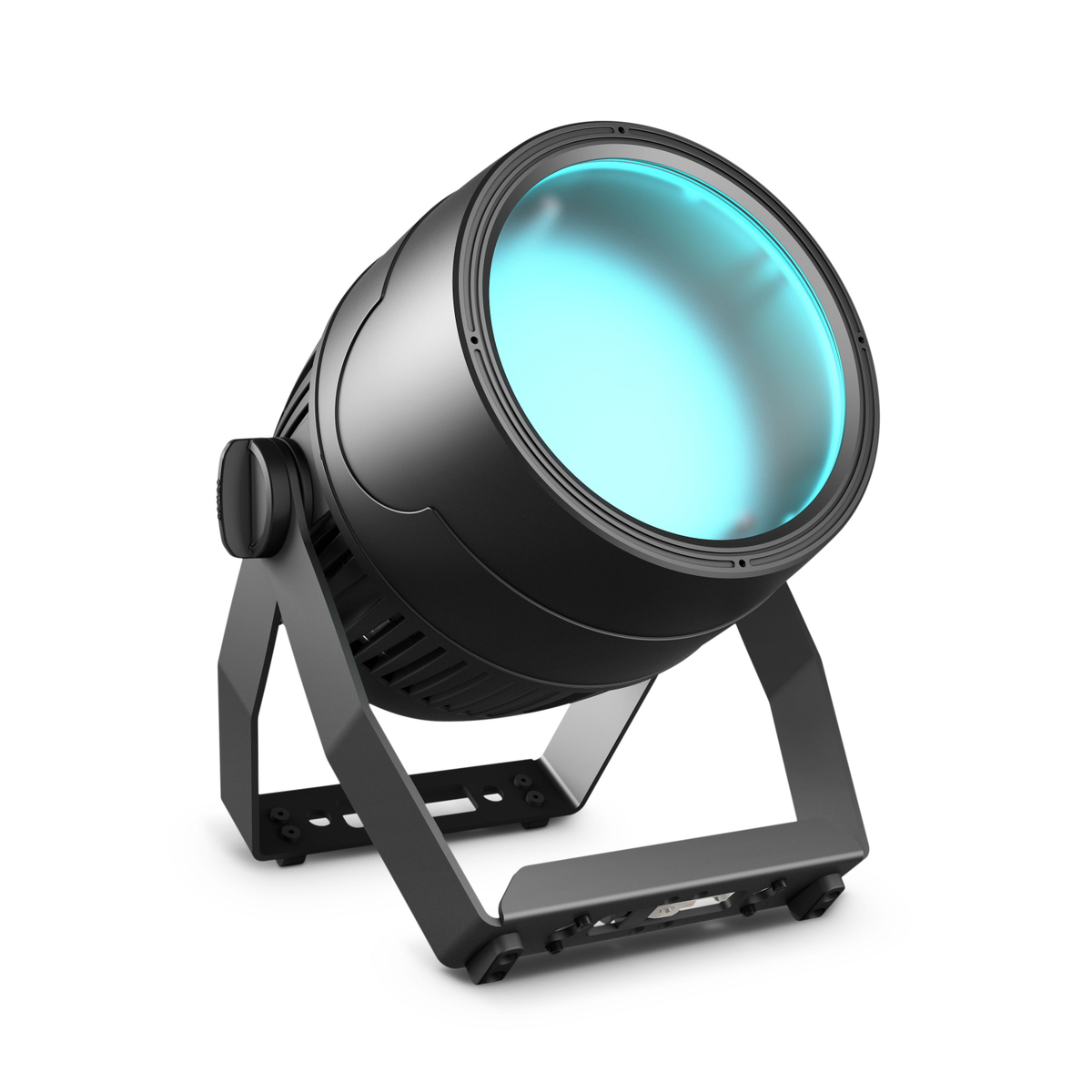

ZENIT® Z120 G2

VIDEO

ZENIT® Z120 G2

Professional PAR Spotlight with Zoom and IP65 Protection Class

Item no.: CLZZ120G2

Guarantee: 24 months

EAN: 4049521353727

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:ZENIT® Series

Versions:

Questions about the item?

Item highlights:

Professional high output PAR can with 7° - 55° zoom
Patented SPIN16® technology for fast and flexible installation thanks to 16 mm TV spigot integrated in the mounting bracket
120 W RGBW COB LED
High resolution 16-bit colour mixing and dimming
Colour temperature correction
Variable white balance
4 selectable dimming curves with adjustable response
Easy configuration via OLED display and 4 touch buttons
Security lock against unauthorized menu access
RDM enabled
Flicker free, ideal for TV and film applications
IP65 rating for outdoor use
5-pin DMX connectors, power input and output compatible with powerCON TRUE1
Optional Cameo Omega Bracket (CLOMEGABRACKET1) available as accessory

Features

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Protection class IP65
The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

COB LED technology
The current “chip-on-board” multi-LEDs allow dense, large-area light sources to be created that are characterised by their high luminosity and wide range of even colours. Cold white According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

Specifications

Product type

LED PAR Lighting

Type

Outdoor

Colour spectrum

RGBW

Number of LEDs

1

LED type

120W (approx. 50000 operating hours)

Refresh rate

3600 Hz

Dispersion

7 - 55 °

DMX input

5-pin IP65

DMX output

5-pin IP65

DMX mode

11-channel, 10-channel, 3-channel, 17-channel, 9-channel, 4-channel, 5-channel

DMX Functions

colour fade, Zoom, Dimmer Fine, Dimmer Response, reset, RGBW Fine, colour jump, colour macro, Dimmer Curve, RGBW, Dimmer, Zoom Fine, Strobe, Colour temperature correction

Standalone modes

Strobe, static colour, colour fade, Display Lock, colour macro, White Balance adjustable, colour jump, Dimmer Curve, Master / Slave mode, Dimmer Response

Controls

Down, Up, Mode, Enter

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

180 W

Power supply connector

TRUE1 compatible Power I/O sockets

Housing material

Die-cast aluminium

Cabinet colour

Black

Protection class IP

65

Cooling

Convection

Illuminance

(55°) 3900 lx @ 1 m, (7°) 62000 lx @ 1 m

Luminous flux

2117 lm

Operating Temperature

-15 - 45 °C

Width

230 mm

Height

230 mm

Length

300 mm

Weight

8,3 kg

Description

ZENIT® Z120 G2

Following the hugely successful ZENIT® Z 120, Cameo now introduces the ZENIT® Z 120 G2 featuring an OLED display and patent pending mounting bracket which integrates a super clamp stud. The RDM enabled high output PAR can for demanding professional applications employs a single long-life 120 watt RGBW COB LED and 16-bit technology for vivid high-resolution colour mixes with maximum uniformity and perfect dimming behavior. Covering a range from 7° to 55°, the motorized zoom provides flexible illumination from tightly focused, narrow beams to wide, diffuse washes.

With a 3.600 Hz refresh rate for flicker free operation and IP65 rating the ZENIT® Z 120 G2 is eminently suitable in TV, film and outdoor applications. The PAR can's advanced features include colour temperature correction, variable white balance and 4 selectable dimming curves with adjustable response to mimic the ramp-down of halogen bulbs.

Sporting 7 modes of DMX control, the ZENIT® Z 120 G2 is also capable of master, slave and standalone operation. A bright OLED display with 4 touch buttons facilitates menu navigation and configuration while a security lock prevents unauthorized access. The heavy-duty diecast aluminium housing utilizes highly efficient convection cooling for completely silent operation. 5-pin DMX connectors e powerCON TRUE1 enable daisy chaining. The Cameo ZENIT® Z 120 G2 runs on all voltages from 100 - 240 V AC.
