Item no.: NL4FXXWL
Guarantee: 12 months
EAN: 7613187017636
Sliding scale: 1
Unit: Piece
Packaging unit: 50
Versions:
Item highlights:
- Up to 37 A rms current rating
- IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Ergonomic design with slip-proof two-component molded housing
- Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy and reliable twist lock system
- Einfaches und zuverlässiges Twist-Lock-System
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
4
Gender
female
Cable diameter
10 - 16 mm
Contacts
copper
Connection type
Speakon
Housing
polyamide
Weight
0,046 kg
Description

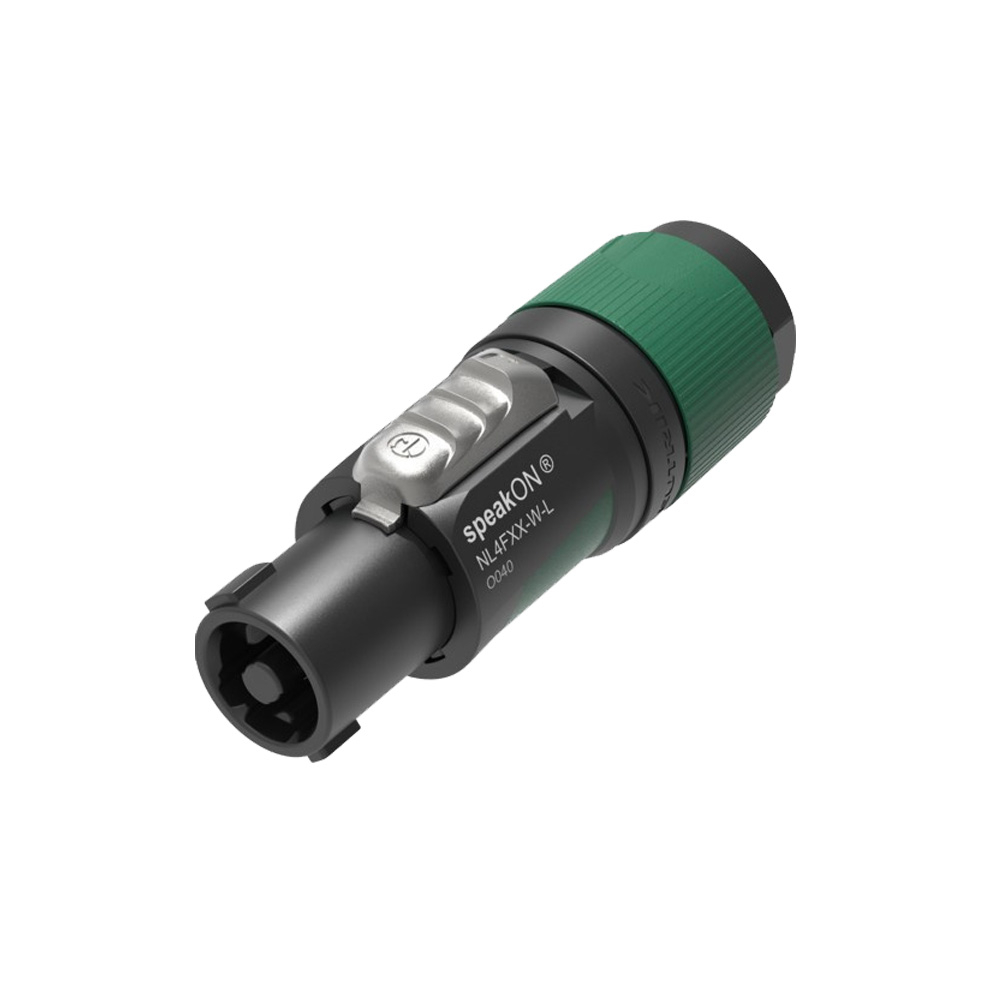

NL4FXX-W-L
4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 10 to 16 mm
speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.
