Item no.: K5HPD325
Guarantee: 24 months
EAN: 4049521906992
Sliding scale: 100
Unit: Running metre
Packaging unit: 100
Series:5 Star
Versions:
Item highlights:
- The Hybrid Cables from our 5 STAR SERIES are made in the EU
- Packaging unit: 100 m in one piece
- Superior signal transmission values due to its larger conductor cross-section of 0.34 mm² AWG22
- The mains line has a cross-section of 3 x 2.5 mm² AWG13
- Made for simultaneous transmission of DMX / Audio signals and power
Specifications
Cable length
100 m
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
18 mm
Cable colour
Black
Conductor material
OFC (Oxygen-free copper)
Conductor diameter
0.34 mm²
AWG
22
Characteristic impedance
110 Ω
Shield
Braided copper shielding
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
6.5 mm
Conductor material
OFC (Oxygen-free copper)
Conductor diameter
2.5 mm²
AWG
13
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
8 mm
Description

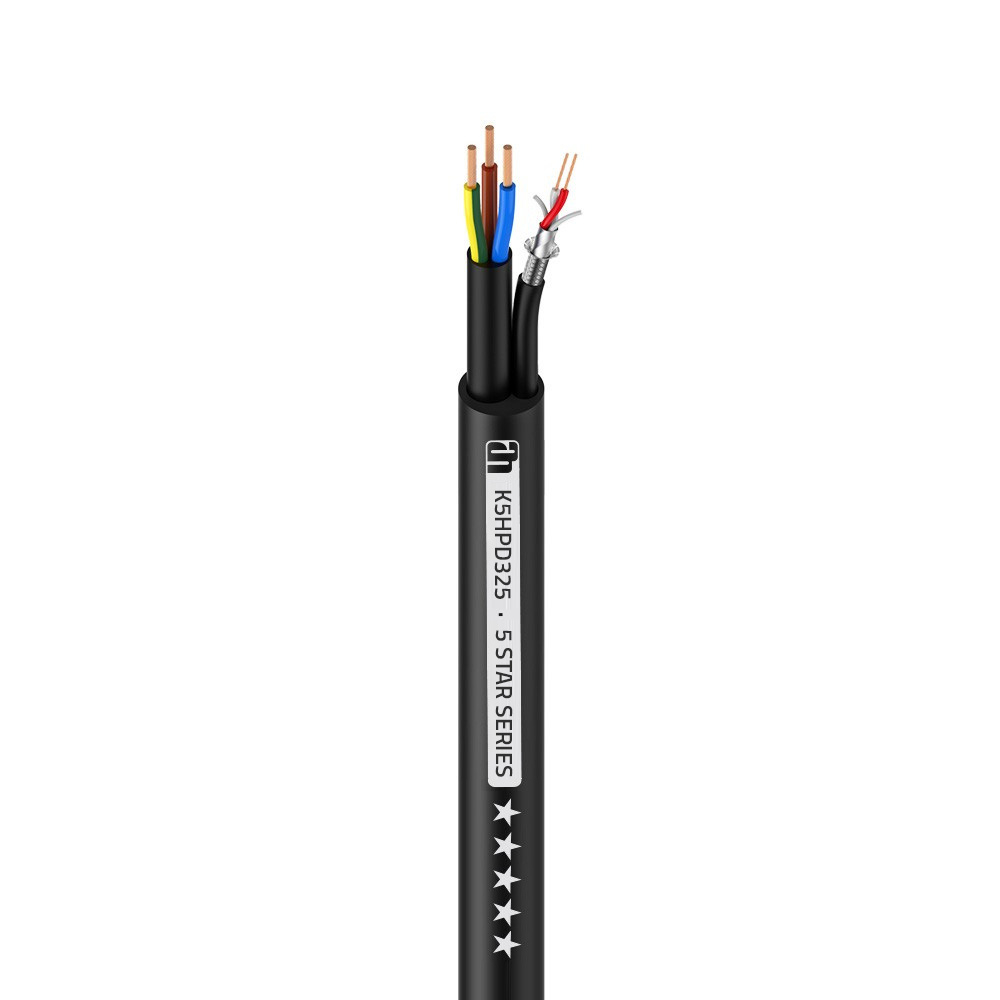

5 STAR HYBRID POWER DMX 325
Becoming the best means becoming a 5 STAR cable!
With users in mind who demand strong power and superior signal transmission values, we at Adam Hall® Cables engineered a cable for simultaneous transmission of DMX / Audio signals and power. The inner conductor cross-section of 0.34 mm² (AWG22) gives your balanced signals the necessary space to unfold its wings.
The line is completely made in the EU and developed under highest quality standards.
