Item no.: LDCOGS52
Guarantee: 24 months
EAN: 4049521171499
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:CONTRACTOR
Item highlights:
- Weatherproof IP56 outdoor speaker
- 5.25" woofer
- 1.2" high-frequency driver
- 40 watts continuous power
- Frequency range up to 15 kHz
- Operated at 8 ohms and 100 volts
- For gardens, parks etc.
Specifications
Product type
Installation Loudspeakers
Type
Outdoor Loudspeaker
Version
Outdoor Loudspeaker
Speaker type
2-way speaker
Color
Army green
Woofer dimensions
5.25 "
Woofer dimensions (mm)
133 mm
Tweeter dimensions
1.2 "
Tweeter dimensions (mm)
30 mm
Mounting depth
74 mm
Impedance (low-impedance)
8 Ohm(s)
100 V Inputs
4 W, 16 W, 32 W, 2 W, 8 W
Frequency response
80 - 15000 Hz
Height
372 mm
Diameter
345 mm
Weight
3,88 kg
Description

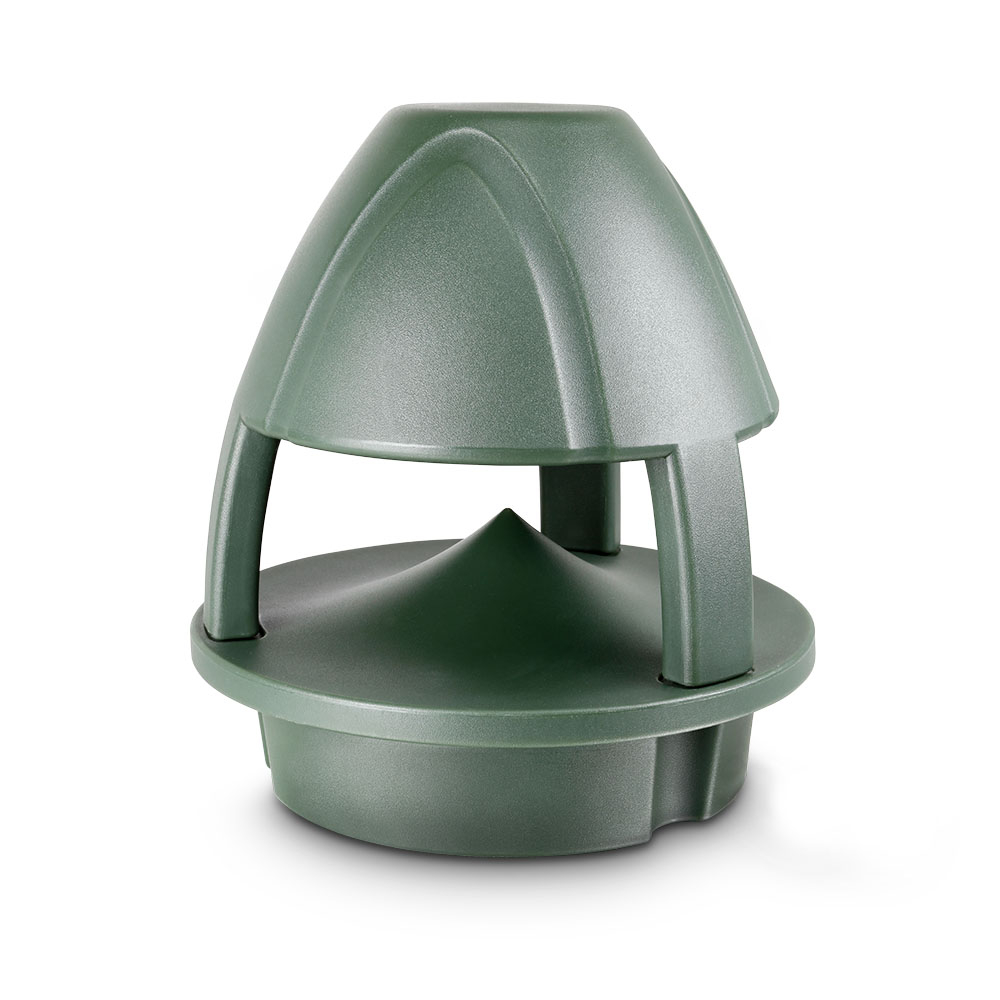

COGS 52
The CONTRACTOR COGS 52 is a rugged outdoor speaker in army green with an IP56 rating. It is operated at 8 ohms and 100 volts with taps for 2, 4, 8, 16 and 32 watts and is equipped with a 5.25" woofer and 1" tweeter. It achieves a sound pressure level of 86 dB at 1 W / 1 m with a power capacity of 40 watts of continuous power.
