MULTI PAR 1

Compact 432 x 10 mm LED Lighting System incl. Transport Case

Item no.: CLMPAR1

Guarantee: 24 months

EAN: 4049521130656

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:Light Sets

Item highlights:

  • 4 x 108 powerful, long-life 10 mm RGB LEDs
  • Professional 28-mm TV spigot for mounting
  • Optional footswitch for easy on stage controlling
  • Operated via DMX, in master/slave mode or standalone mode
  • Integrated microphone for sound control
  • Simple to operate using the four buttons and LC-Display
  • Sturdy metal housing
  • Practical transport case included as standard

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type
LED Lighting Systems
Type
Indoor
Colour spectrum
RGB
Number of LEDs
4 x 108
LED type
10 mm
Dispersion
25 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
15-channel, 9-channel, 6-channel
DMX Functions
colour jump, Strobe, RGB, master dimmer, sound control, colour fade
Standalone modes
colour fade, slave mode, Auto run, colour change, sound control, static colour
Remote connection
XLR 5-pin female
Controls
Value Down, Enter, Value Up, Mode
Indicators
multifunction LC display
Operating voltage
100 V AC - 250 V AC
Power consumption
50 W
Power supply connector
IEC power connector female, IEC power connector male
Housing material
Metal
Cabinet colour
Black
TV spigot
28 mm
Width
1.030 mm
Height
290 mm
Depth
100 mm
Weight
7 kg

Description

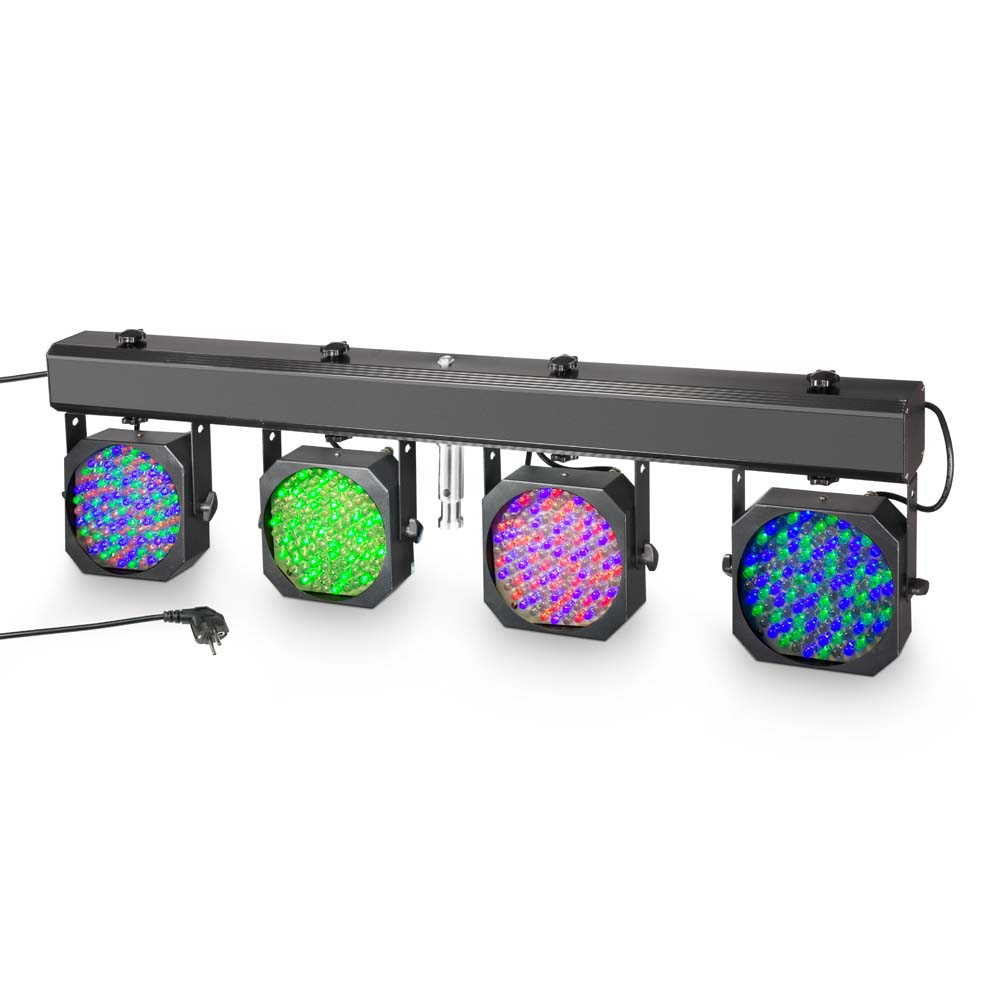

MULTI PAR 1

The four compact flat cans mounted on a bar with integrated control make the CLMPAR 1 the ideal basic kit for stage lighting. Each of the four flat cans is fitted with 108 ultra-bright 10-mm LEDs, creating awe-inspiring brightness and the perfect colour mix.

The CLMPAR 1 is equipped with 3-pole XLR inputs and outputs to enable actuation via DMX with 6, 9 or 15 channels. Alternatively, the CLMPAR 1 can be actuated by an optional controller. Of course, the CLMPAR 1 also works in standalone mode, with a microphone for sound control integrated into the bar. A 4-way foot controller is available as an optional extra.

The CLMPAR1 is powered via a removable earthing contact cable and is equipped with a 28-mm TV adapter for tripod-mounting. The practical transport case is included as standard.

Videos for this item

Accessories

Spare parts

MULTI PAR BAG
CLMPARBAG
Bag for CLMPAR1, CLMPAR2 and CLMPAR3
Loading...
Multi PAR FOOT PLUS
CLMPARFOOTPLUS
4-fold foot pedal for CLMPAR
Loading...

Downloads

Manuals
Data Sheets & Specifications
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Certificates & Declarations
Display all
Name
Type
Format
File size
CLMPAR1 User Manual User Manual.pdf1.2 MB
CLMPAR1 Ecolabel Ecolabel.pdf1.72 MB
Cameo REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
Cameo RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
CLMPAR1 DMX Control Table DMX Control Table.pdf37.25 KB
Cameo Catalogue / Brochure CAMEO Brand FlyerCatalogue / Brochure.pdf387.56 KB
Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
Cameo Catalogue / Brochure CAMEO 2024Catalogue / Brochure.pdf11.97 MB
Cameo Manufacturer's Declaration CAMEOManufacturer's Declaration.pdf64.34 KB
Product ImagesImages & Artwork.zip-
