AZOR® B1

Compact Beam Moving Head

Item no.: CLAB1

Guarantee: 24 months

EAN: 4049521336683

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:AZOR® Series

Versions:

Questions about the item?

Item highlights:

Beam Moving Head with 180,000 lx light intensity @ 3 m
Optical glass lens with extremely narrow 2° beam angle
16-bit three-phase motors
540° panning and 270° tilting with automated position correction.
Motorised focusing
14 colours plus open and split colours
17 static gobos plus open
Rotatable and indexable circular eightfold prism
Rotatable and indexable linear sixfold prism
4 programmable macros for standalone and master-slave operation
3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
Two Omega brackets and power cable included

Features

(Gobo wheel)
Gobo wheels are fitted with static or rotating gobos made of metal or glass. Gobos are essentially templates that allow the projection of patterns, shapes and graphics.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Circular prism
A circular prism multiplies the beam or the gobo projection, placing the result inside a circle.

Colour wheel
Turning the colour wheel, which is fitted with various filters, enables very fast changes of colour.

Linear prism
A linear prism multiplies the beam or the gobo projection, placing the result inside a row.

Focus
The focus function serves to focus the light beam and the gobo projection at any distance.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

Specifications

Product type

LED Moving Lights

Type

Moving Head

Colour spectrum

Cold white

Number of LEDs

1

Color temperature

9400 K

Average LED lifetime

> 20000 hours

LED type

100 W

Refresh rate

Adjustable up to 3,600 Hz

Dispersion

2 - 42 °

DMX input

XLR 3-pin male, XLR 5-pin male

DMX output

XLR 3-pin female, XLR 5-pin female

DMX mode

16-channel, 13-channel

DMX Functions

Colour wheel, PAN FINE, Set Dimmer Curve, Dimmer Fine, Prism Selection, PAN, Focus, TILT, Dimmer, Pan/Tilt Speed, Pan/Tilt Macros, TILT FINE, Device Settings, Strobe, Gobo wheel, Prism Rotation/Indexing

PAN movement

540

TILT movement

270

High Speed Strobe

> 20 Hz

Standalone modes

Settings, Master / Slave mode, 4 x User Macros

Controls

Value Up, Enter, Mode, Value Down

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

180 W

Power supply connector

Blue & White Power Twist I/O

Housing material

ABS plastic, Metal

Cabinet colour

Black

Protection class IP

IP20

Cooling

temperature-controlled fan

Illuminance

180,000 lx @ 3 m

Luminous flux

1800 lm

Maximum Ambient Temperature

-15 - 45 °C

Width

306 mm

Height

437 mm

Depth

220 mm

Weight

13,9 kg

Features

Power supply, 2 x Omega Clamp

Description

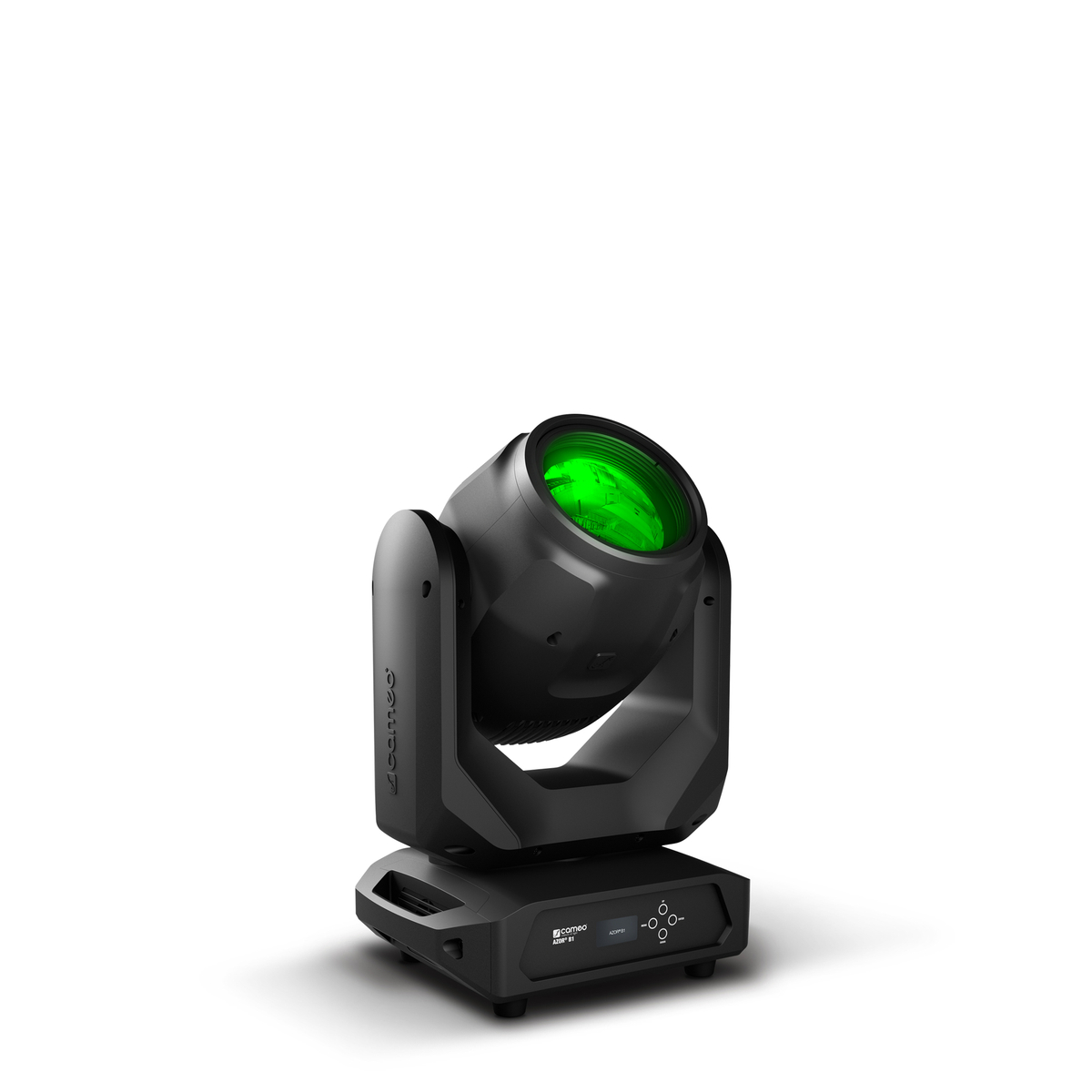

AZOR® B1

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction. A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.
