Item no.: CLAZORW2
Guarantee: 24 months
EAN: 4049521890765
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:AZOR® Series
Versions:
Item highlights:
- 7 x 40 W RGBL LED with 3,600 lm luminous flux
- Zoom range: 4° - 50°
- Single pixel control of all 7 LEDs
- Eclipse Burst Effect* for strobe and pixel effects
- Selectable PWM frequencies
- iDMX stick input for wireless DMX connection
- OLED display with 4 buttons
Features
Single pixel control
This device has an individual pixel control function. Since the colour and brightness of each LED pixel can be individually controlled (“Single Pixel Control”), the device can be used to generate animated graphic patterns and pixel mapping effects.
Specifications
Description

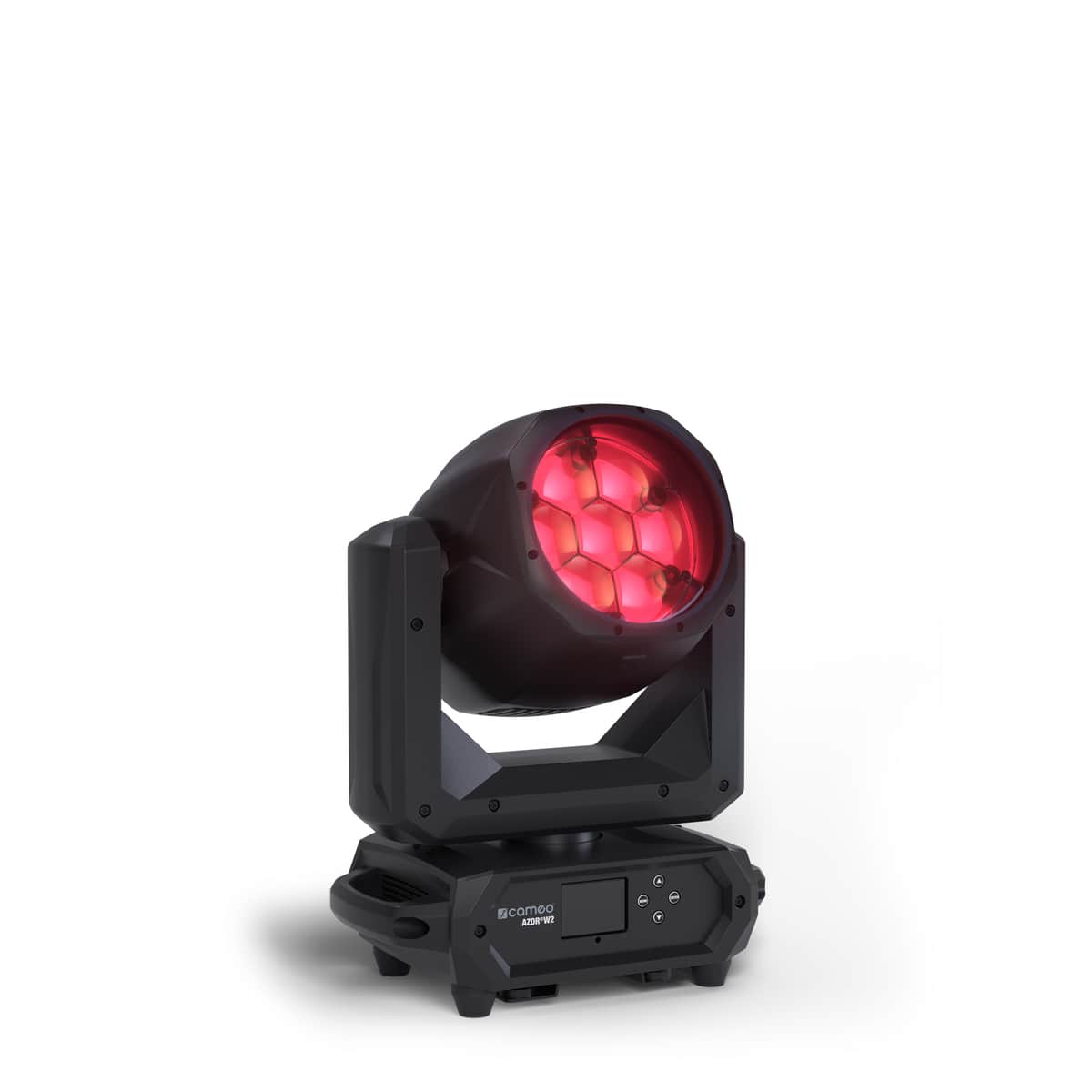

AZOR® W2
All information is provisional
Every year, countless artists, bands, actors and presenters stand on small to medium-sized stages and need light! For all these events, Cameo has developed the AZOR® W2. The compact wash moving head is the ideal partner for lighting designers and event service providers who are looking for a powerful and versatile LED show light that does not lack professional features despite its compact size.
Offering 7 x 40W RGBL LEDs with a total output of 3,600 lm and a zoom range of 4° - 50°, the AZOR® W2 holds a secret. The real magic lies in its discreet feature - the Eclipse Burst Effect. Behind a dark filter, this innovative addition introduces 4 segment SMD-LEDs, creating captivating strobe and pixel effects. Paired with single-pixel control, the AZOR® W2 promises an audience experience that goes beyond the ordinary.
Thanks to the adjustable PWM frequency, the AZOR® W2 is also suitable for use in TV and broadcast applications as well as wherever a camera transmits the action and is dependent on flicker-free LEDs in the picture.
The compact wash moving head can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX stick. On the wash light itself, buttons and an OLED display provide a convenient basic setup.
Videos for this item
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| CLAZORW2 User Manual | User Manual | 14.21 MB | |||
| CLAZORW2 Product Data Sheet | Product Data Sheet | 751.98 KB | |||
| CLAZORW2 Photometric Data Sheet | Photometric Data Sheet | 2.14 MB | |||
| Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| CLAZORW2 DMX Control Table | DMX Control Table | 166.15 KB | |||
| CLAZORW2 Fixture Library Daslight | Fixture Library Daslight | .zip | 283.42 KB | ||
| CLAZORW2 Fixture Library GDTF | Fixture Library GDTF | .zip | 341.4 KB | ||
| CLAZORW2 Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 62.92 KB | ||
| CLAZORW2 2D Drawing Insert | 2D Drawing | 271.74 KB | |||
| CLAZORW2 2D Drawing | 2D Drawing | 519.56 KB | |||
| CLAZORW2 2D Drawing | 2D Drawing | .dxf | 26.62 MB |
