HYDRABEAM 1000 RGBW
Archive

HYDRABEAM 1000 RGBW

Moving Head with 32 W RGBW Quad-LED

Item no.: CLHB1000RGBW

Guarantee: 24 months

EAN: 4049521307676

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:HYDRA

Item highlights:

  • Compact ultra-fast moving head
  • 540° pan and 270° tilt
  • Powerful 32 W Cree RGBW quad LED
  • 5 modes of DMX control
  • Standalone, master and slave capability
  • 4 effective automated operating modes
  • Built-in microphone for sound activation
  • 4-button colourful LC-Display for easy menu navigation and configuration

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type
LED Moving Lights
Type
LED Moving Effects
Colour spectrum
RGBW
Number of LEDs
1
LED type
32 W
Dispersion
2.5 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
14-channel, 6-channel, 9-channel, 3-channel, 12-channel
DMX Functions
RGBW, colour macro, PAN, Dimmer, Strobe, TILT, Pan/Tilt Speed, Show Mode
PAN movement
540°
TILT movement
270°
High Speed Strobe
1 - 20 Hz
Standalone modes
Auto programs, sound programs
Controls
Value Down, Mode, Enter, Value Up
Indicators
LC display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
65 W
Power supply connector
IEC power connector male
Housing material
Metal, ABS plastic
Cabinet colour
Black
Cooling
low-noise fan
Illuminance
blue 9600lx @ 1m, green 42400lx @ 1m, white 67200lx @ 1m, red 17900lx @ 1m
Width
146 mm
Height
255 mm
Depth
156 mm
Weight
2,7 kg

Description

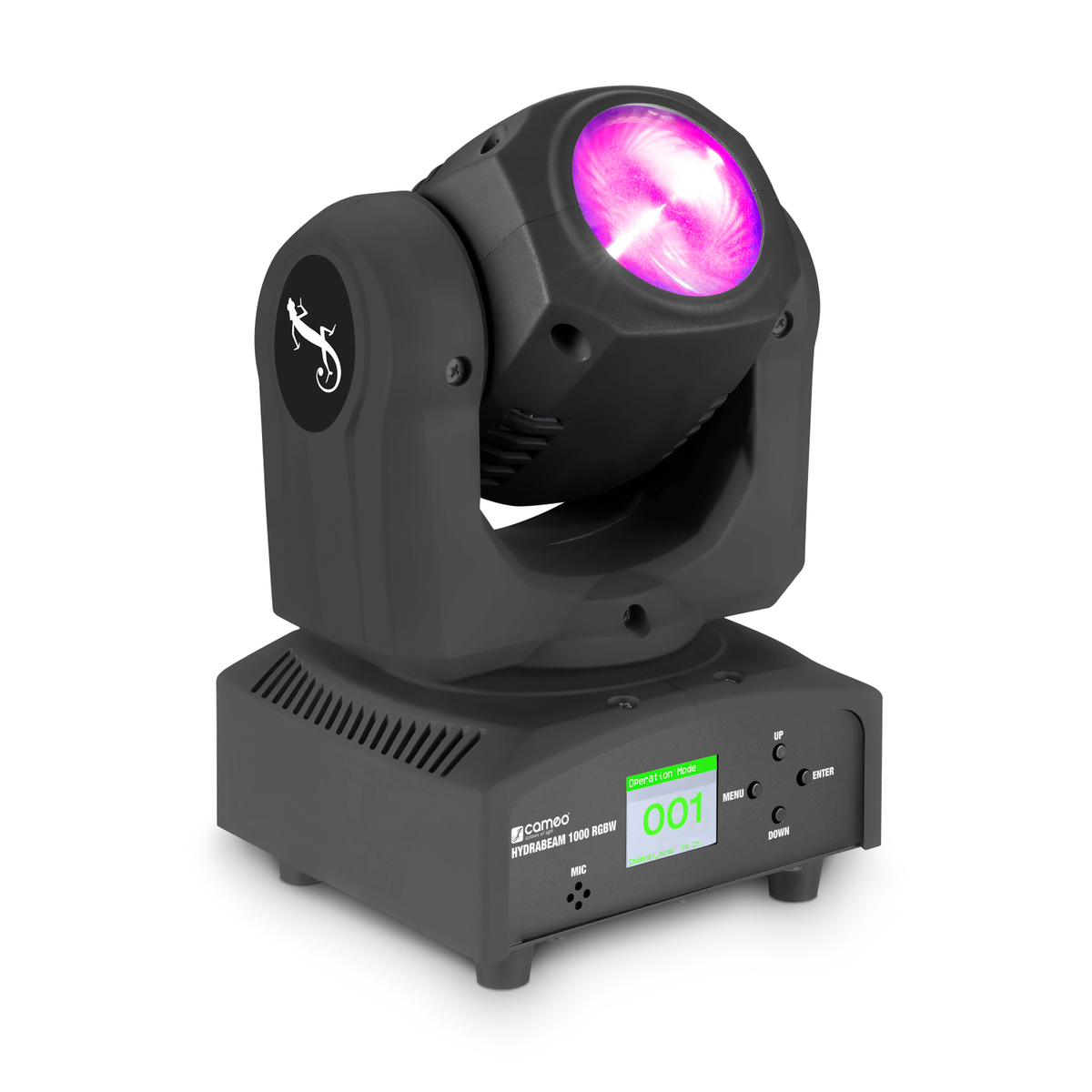

HYDRABEAM 1000 RGBW

The Cameo Hydrabeam 1000 RGBW is a compact moving head with ultra-fast 540° pan and 270° tilt. It is equipped with a powerful 32 W quad LED by Cree for brilliant, for brilliant colours and projects razor sharp beams with an extremely focused 2.5° spread.

The fixture features 5 modes of DMX control, a built-in microphone for sound activation and fully automated operating modes. It includes standalone, master and slave capability along with smooth dimming and high-speed strobe functions. A 4-button colour display enables easy menu navigation and configuration.

The compound ABS and metal construction sports a low-noise fan for cool and quiet operation, 3-pin DMX connectors and an IEC mains inlet. The Hydrabeam 1000 RGBW runs on 100 to 240 volts AC, power consumption is a very low 65 W only.

Videos for this item

Spare parts

CLHB1000RGBWOMEGA
Omega Bracket with Screws and Safety Eye for CLHB1000RGBW
Loading...

Downloads

Manuals
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name
Type
Format
File size
CLHB1000RGBW User Manual User Manual.pdf1.21 MB
Cameo REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
Cameo RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
CLHB1000RGBW 2D Drawing 2D Drawing.pdf341.14 KB
CLHB1000RGBW 2D Drawing 2D Drawing.dwg4.44 MB
Cameo Catalogue / Brochure CAMEO Brand FlyerCatalogue / Brochure.pdf387.56 KB
Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
Cameo Catalogue / Brochure CAMEO 2024Catalogue / Brochure.pdf11.97 MB
Cameo Manufacturer's Declaration CAMEOManufacturer's Declaration.pdf64.34 KB
Product ImagesImages & Artwork.zip-
