ADA 8 K4

ADA 8 K4

4-channel touring amplifier with DSP & DANTE™

Item no.: LDADA8K4

Guarantee: 48 months

EAN: 4049521917493

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ADA

Versions:

Item highlights:

  • 4 × 2000 W @ 4 Ω
  • 24-bit/96 kHz DSP with 32-bit floating point, FIR, IIR and raised-cosine filters, EQ, crossover and delay
  • 140 dB dynamic range with <0.1 % THD+N
  • 2 x Dante™ ports with integrated switch and Armonía Pro Audio Suite™ integration
  • Inputs: 4 analogue and 4 AES3 inputs
  • Outputs: 4 analogue, 4 SpeakON and 4 AES3 outputs
  • Flexible routing and mixing options for customised signal routing
  • 4.3" touch display with rotary encoder for intuitive operation
  • Virtual metre bridge on the touchscreen for headroom monitoring per channel
  • Input backup strategy: Automatic switching of the input source in case of signal failure
  • Peak, RMS, current and TruePower™ limiters as well as Active DampingControl™
  • Protective circuits against direct current, overvoltage/undervoltage, short circuit and overheating
  • Signal protection (clipping, VHF, long-term RMS) and muting when switching on/off
  • Energy-efficient power supply with Power Factor Correction (PFC) and Smart Rails Management

Specifications

Product type
Amplifier
Type
4-channel
Inputs analog
4 x XLR male, 4 x XLR female
Inputs digital AES3
2 x XLR male ( Link )
Inputs digital DANTE / AES67
2 x XLR Ethercon ( 4 Audio Channels )
Max. input level
24 dBu
Crosstalk ( 1 kHz )
- 75 db typ
Input impedance
20 kOhm ( sym. ) Ohm(s)
CMRR
65 dB typ dB
THD+N ( 0.1 W to half power)
< 0.1 % ( typical < 0.05 % )
SMPTE IMD ( 0.1 W to half power )
< 0.1 % ( typical < 0.05 % )
Output impedance at 100 Hz
30 mOhm
AD converter
125 dB-A Dynamic Range - 0.005 % THD+N, 24 Bit Tandem™ @ 48 kHz
DA converters
24 Bit Tandem™ @ 48 kHz, 117 dB-A Dynamic Range - 0.003 % THD+N
Sample rate converter
140 dB Dynamic Range - 0.0001 % THD+N, 24 Bit @ 96 kHz
Internal precision
32 bit floating point
Latency
2,5 ms
Memory / presets
Virtually unlimited speaker presets, 50 amplifier snapshots
Delay
2 s ( input ) + 100 ms ( output ) mS
Equalizer
Hi / lo-pass, Peaking, Bandpass, Notch - Filter, Hi / Lo-Shelving, Custom FIR, Parametric IIR:, Raised-cosine, Allpass
Crossover
6 dB / oct to 48 dB / oct ( IIR ), Bessel, Butterworth, Linkwitz-Riley, Linear phase (FIR)
Limiter
Peak Limiter, TruePower™, RMS power supply limiter, RMS Power
Damping control
Active DampingControl™, LiveImpedance™ measurement
Resolution
480 x 272, 4.3” diagonal
Brightness
600 nit
Control
Multitouch capacitive, Rotary encoder 20 steps / turn with pushbutton
Per channel @ 2 Ohm ( symmetrical )
2000 W
Per channel @ 2 Ohm ( asymmetrical )
2000 W
Per channel @ 4 Ohm ( symmetrical )
2000 W
Per channel @ 4 Ohm ( asymmetrical )
2300 W
Per channel @ 8 Ohm ( symmetrical )
1400 W
Per channel @ 8 Ohn ( asymmetrical )
1500 W
Bridge Mode 4 Ohm
4000 W
Bridge Mode 8 Ohm
4000 W
Max. Output power
155 Vpeak
Power consumption 100 V Standby
16 W
Power consumption 100 V idle
42 W
Power consumption 1 / 8 power @ 4 ohms
1460 W
Current draw 1/8 power @ 4 ohms
15.3 Arms
Thermal loss 1 / 8 Power @ 4 Ohm
1550 BTU / h
Power consumption 240 V Standby
17 W
Power consumption 240 V idle
42 W
Power consumption 240 V 1 / 8 power @ 4 ohms
1440 W
Current draw 240 V 1/8 power @ 4 ohms
6.6 Arms
Thermal loss 240 V 1 / 8 Power @ 4 Ohm
1480 BTU / h
Power supply type
SRM, Switch mode power supply with power factor correction (PFC)
Nominal voltage (+/- 10% )
100 V AC - 240 V AC, 50 - 60 Hz
Operating voltage
90 V AC - 264 V AC, 50 - 60 Hz
Connection type
IEC C 20 ( 20 A max )
Connectivity
Ethercon connectors, Integrated switch, 2 x Gigabit Ethernet ports
Supported topologies
Daisy Chain, Star
Remote Interface
ArmoníaPlus or other preferred software
Width
483 mm
Height
88.9 mm
Depth
381 mm
Weight
11,3 kg

Description

ADA 8 K4

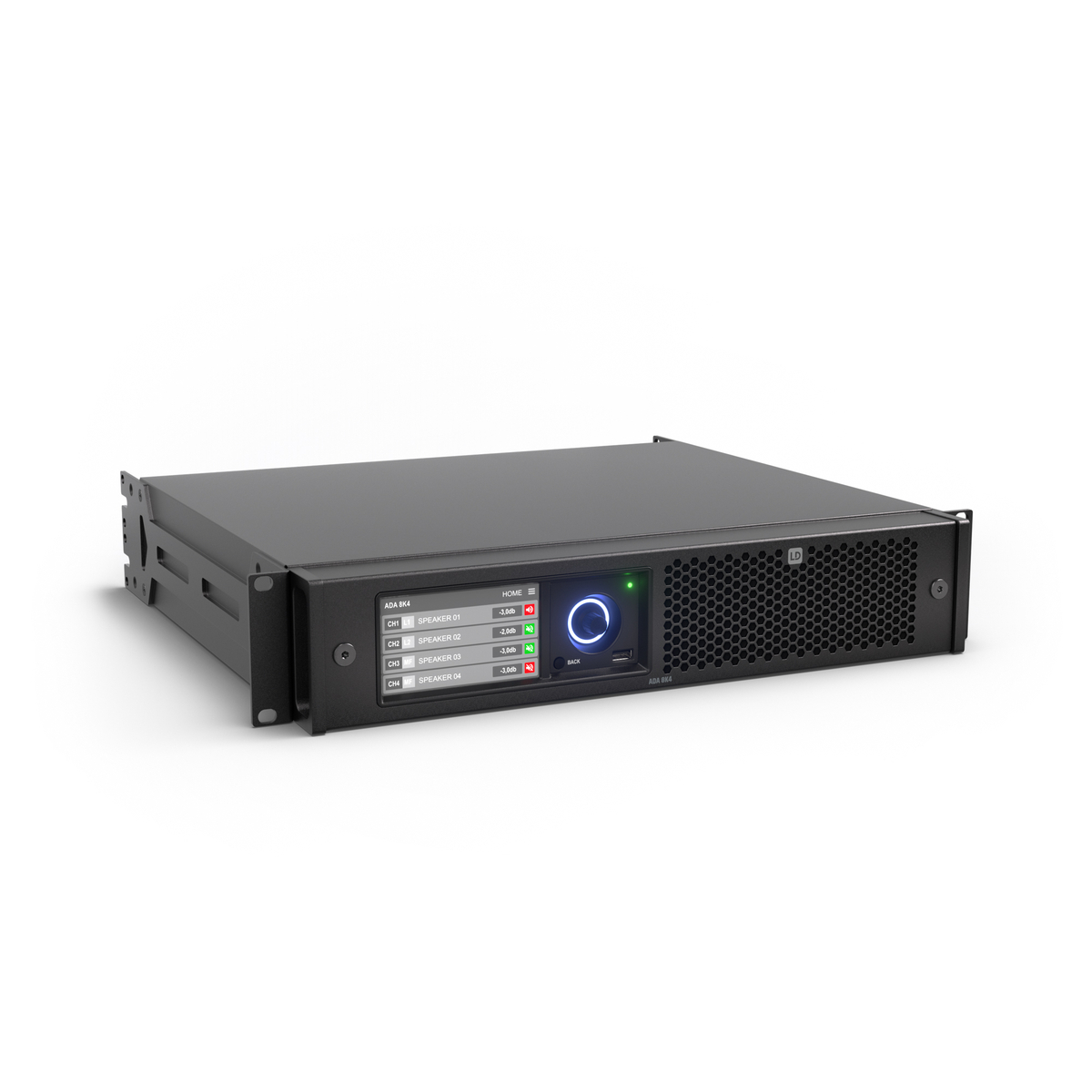

As a 4-channel touring amplifier with DSP & DANTE™, the ADA 8K4 offers maximum power, precise sound and maximum reliability for professional touring and installation applications.

With 4 × 2000 W @ 4 Ω, a 24-bit/96 kHz DSP with 32-bit floating point and FIR, IIR and raised-cosine filters, it delivers outstanding audio quality and enables flexible sound processing. Thanks to two Dante™ ports with integrated switch and Armonía Pro Audio Suite™ integration, the amplifier can be seamlessly integrated into networks.

Armonía Plus allows LD Systems speaker presets to be managed and updated on the DSP amplifier without the need for complex configurations. Alternatively, individual presets can be created and managed to optimise the system for specific requirements.

Versatile connection options with 4 analogue and 4 AES3 inputs as well as 4 analogue, 4 SpeakON and 4 AES3 outputs ensure maximum flexibility. The automatic input backup strategy guarantees uninterrupted operation.

The 4.3-inch touch display with rotary-push encoder and virtual metre bridge for monitoring the available headroom ensures intuitive operation. Flexible routing and mixing options enable customised signal routing for individual applications. Comprehensive limiters (peak, RMS, current, TruePower™) and Active DampingControl™ offer reliable system protection. In addition, together with HealthPlus monitoring in Armonía Plus, the LiveImpedance™ function offers comprehensive and detailed system monitoring.

The protection system against direct current, overvoltage/undervoltage, short circuits and overheating ensure maximum operational safety, bolstered by signal protection mechanisms such as clipping, VHF and long-term RMS protection. Thanks to an energy-efficient mains adapter with Power Factor Correction (PFC) and intelligent rail management, the amplifier is particularly efficient and reliable, making it ideal for professional use.
