CURV 500 S2 W

CURV 500 S2 W

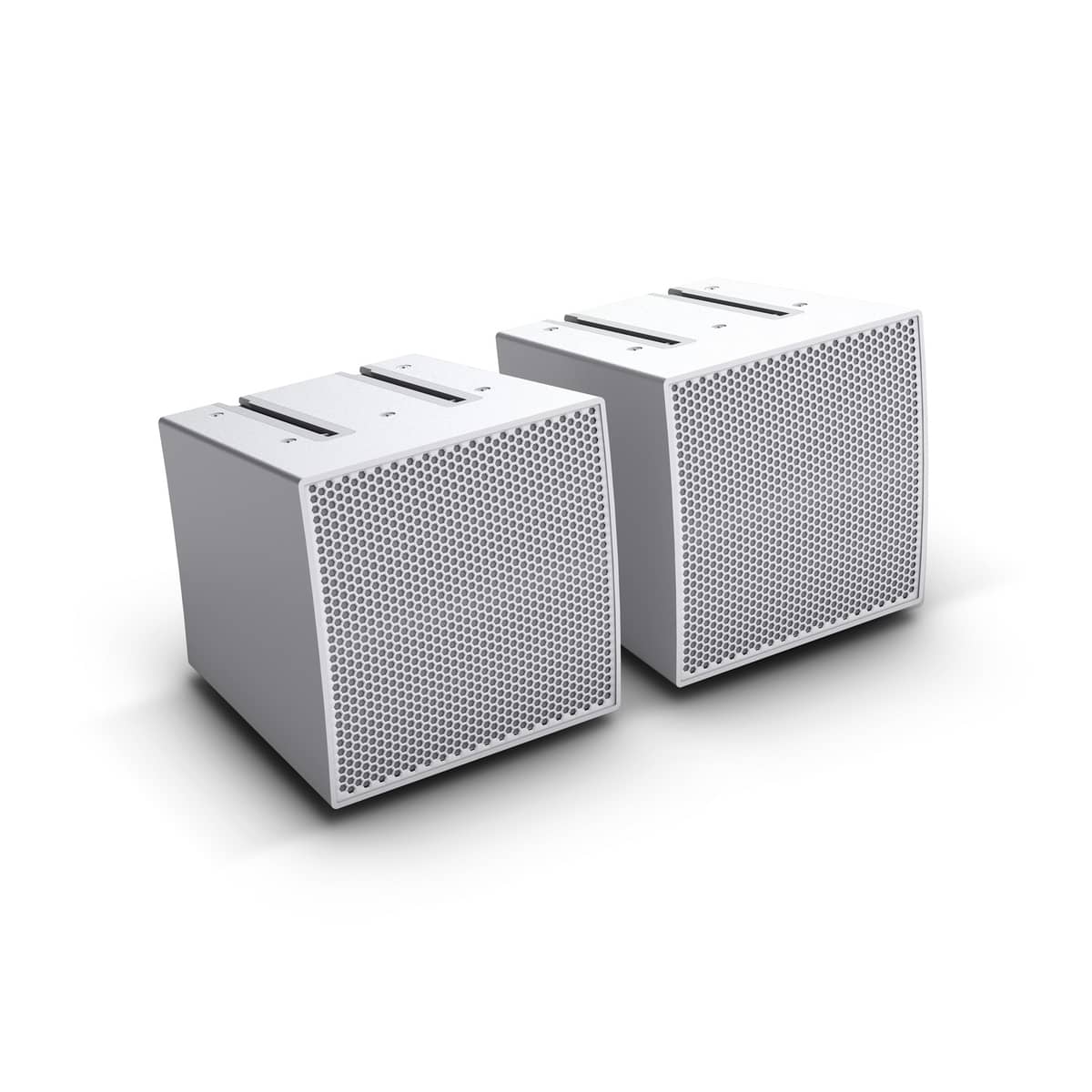

Two Array Satellites for the CURV 500® Portable Array System, White

Item no.: LDCURV500S2W

Guarantee: 24 months

EAN: 4049521192289

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:CURV 500

Versions:

Item highlights:

  • Bundle consisting of two array satellites
  • Compact cabinet made of white die-cast aluminium, rugged and resilient
  • A single 4-inch midrange driver and three 1-inch high-frequency drivers with patented WaveAhead® Technology deliver excellent sound
  • SmartLink® System allows for cable-free assembly of up to four array satellites
  • 16 ohm impedance per satellite

Specifications

Product type
PA Complete Systems Accessories
Type
Array Satellites
Midrange dimensions
1 x 4 "
Tweeter dimensions
3 x 1 "
Load rating (RMS)
40 W
Peak power
80 W
Speakers per amplifier channel (DSP44/45K)
8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion
110° horizontal, vertical (each satellite) 10 °
Impedance
16 Ohm(s)
SPL (1W/1m)
88 dB
Max. SPL
104 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
white
Width
122 mm
Height
122 mm
Depth
122 mm
Weight (pair)
3.44 kg
Features
M3 thread for safety rope for installations, metal grille, WaveAhead® Technology, SmartLink® System, internal crossover

Description

CURV 500 S2 W

This accessory package is suitable for extension or addition to an existing CURV 500®. These 12 x 12 cm satellites made with white die-cast aluminium produce excellent sound. This is due to a 4-inch woofer and three 1-inch tweeters. Thanks to the LD Systems-developed WaveAhead® technology, whereby the tweeters are connected vertically before the high-performance full-range speakers, a perfect sound mix and distribution are achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite - which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. The patented SmartLink® coupling mechanism allows you to wirelessly connect up to four array satellites to a unit in seconds. Robust metal grilles with an acoustic material scrim protect the robust satellites’ drivers, each with 16 ohms impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. An M3 screw connection for the safety cable is available for permanent installations.

Videos for this item

Accessories

Spare parts

LDCURV500SATXOVER
Crossover for LDCURV500 Satellite
