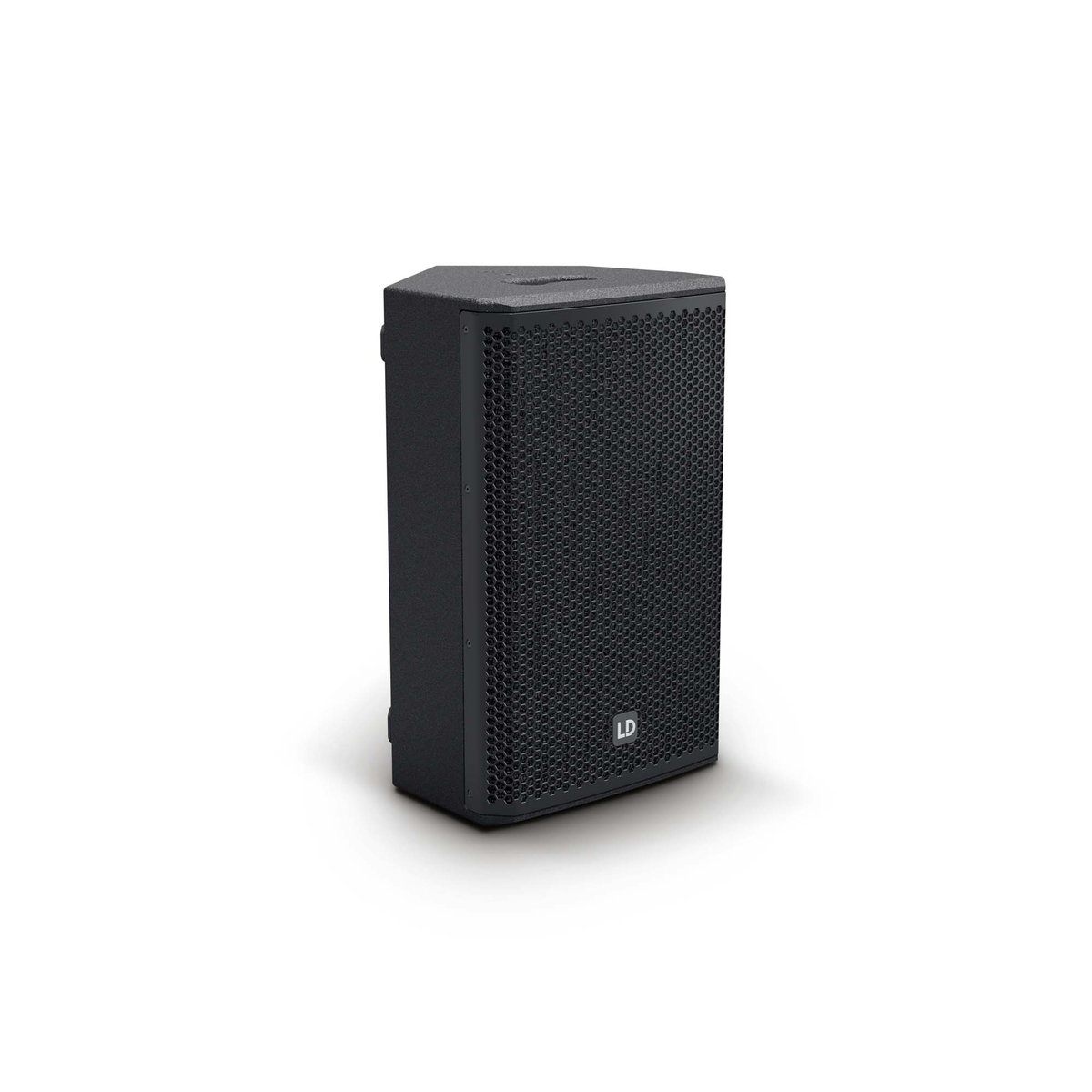

STINGER 10 G3

STINGER 10 G3

2-Way Passive 10” Bass Reflex PA Loudspeaker

Item no.: LDEB102G3

Guarantee: 24 months

EAN: 4049521206658

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • 2-way passive 10” bass reflex PA speaker
  • 300 watts RMS power handling
  • 120 dB maximum SPL
  • 10“ custom woofer and BMS compression driver
  • BEM optimized HF waveguide for uniform coverage
  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
  • Shock-resistant front grill provides maximum speaker protection
  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
  • Large selection of smart installation and transport accessories

Specifications

Product type
PA loudspeaker
Type
Passive
Low/mid Woofer dimensions
10 "
Woofer dimensions (mm)
254 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
2 "
Woofer voice coil (mm)
50.8 mm
Horn
BEM optimized CD Horn
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
HF driver voice coil
1 "
HF driver voice coil (mm)
25.4 mm
Dispersion (H x V)
90 x 50 °
Load rating (RMS)
300 W
Peak power
600 W
Frequency response
65 - 19.000
SPL (1W/1m)
96 dB
Max. SPL
121 dB
Impedance
8 Ohm(s)
Protection circuits
HF Driver
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Speakers per amplifier channel (DSP44/45K)
4
Cabinet material
12 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex
Monitor angle
54 °
Width
325 mm
Height
527 mm
Depth
318 mm
Weight
11,5 kg

Description

STINGER 10 G3

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 10 G3 provides 300 watts of continuous power; the maximum sound pressure level is 120 dB. Its specially developed 10" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 10 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 G3 is an affordable solution for professional PA applications; extensive accessories support the use on stage and in fixed installations.

Accessories

Spare parts

LDEB102G3X
Frequency crossover for LDEB102G3
Loading...
LDEB102G3GR
Grille for LDEB102G3 / LDEB102AG3
Loading...
LDEB102G3LS
10" Speaker for LDEB102G3/ LDEB102AG3
Loading...
SM 7 DT
SM7DT
Dual-tilt flange (0°/5°)
Loading...
LDEBG3HORN
Horn attachment 90° x 50° for Fullrange loudspeaker
Loading...

Downloads

Manuals
Presets, Libraries & Settings
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name
Type
Format
File size
LDEB102G3 User Manual User Manual.pdf5.15 MB
LDEB102G3 User Manual User Manual.pdf1.82 MB
LD Systems REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
LD Systems RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
LDEB102G3 Loudspeaker Presets Loudspeaker Presets.zip485.99 KB
LDEB102G3 Loudspeaker Presets DSP ParameterLoudspeaker Presets.pdf685.42 KB
LDEB102G3 EASE Data EASE Data.zip91.19 MB
LDEB102G3 2D Drawing 2D Drawing.pdf208.07 KB
LDEB102G3 2D Drawing 2D Drawing.PDF240.49 KB
LDEB102G3 2D Drawing 2D Drawing.dxf12.01 MB
LDEB102G3 2D Drawing 2D Drawing.DWG801.88 KB
LD Systems Catalogue / Brochure Highlight Brochure InstallCatalogue / Brochure.pdf6.51 MB
