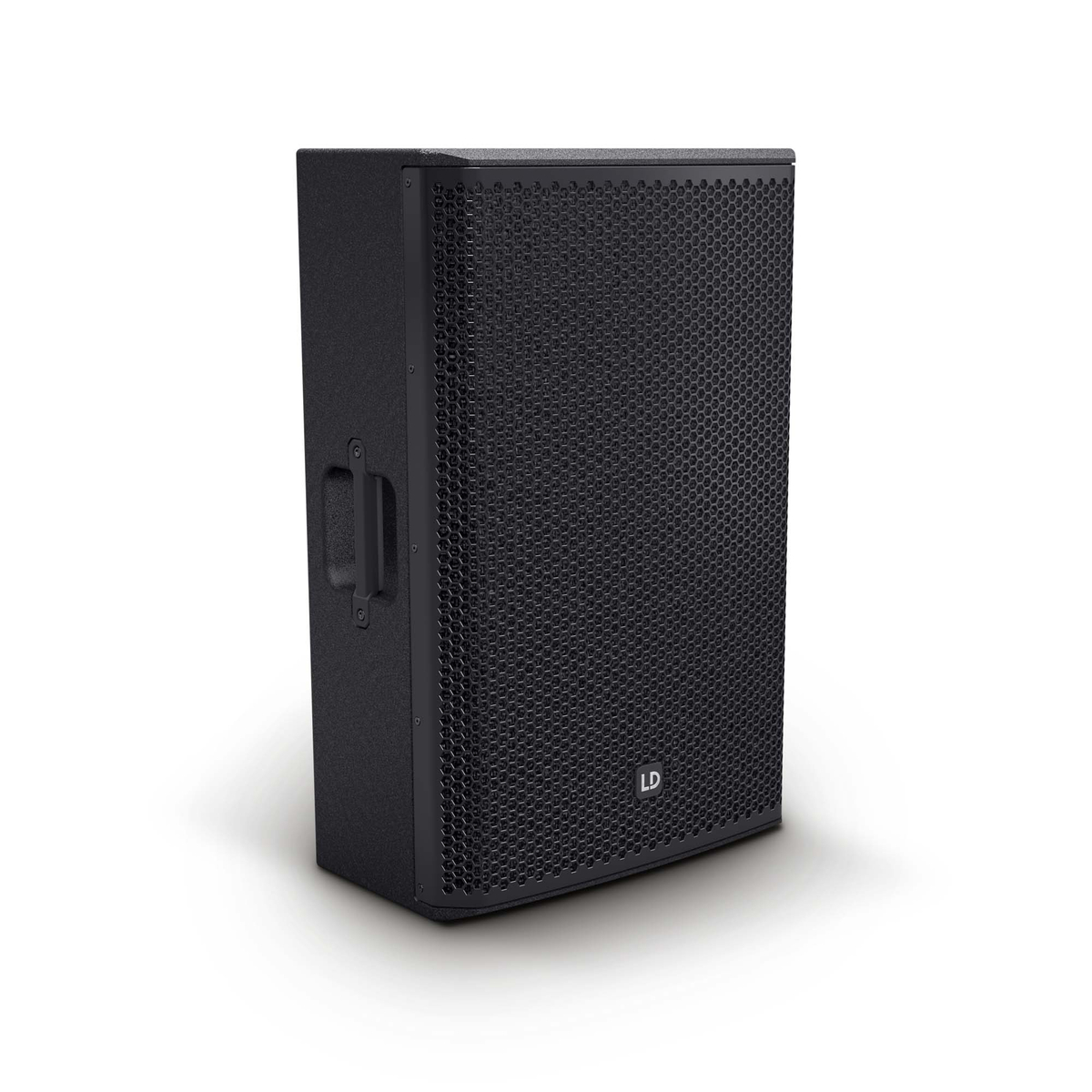

STINGER 15 G3

STINGER 15 G3

15" PA Loudspeaker passive

Item no.: LDEB152G3

Guarantee: 24 months

EAN: 4049521206672

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • Passive 2-way bass-reflex PA speaker
  • 500 watts RMS
  • 127 dB maximum sound pressure level
  • 15" Custom Woofer and BMS driver
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Birch plywood cabinet with extremely durable polyurea coating
  • Shock-resistant front grille to protect the loudspeaker
  • 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport

Specifications

Product type
PA loudspeaker
Type
Passive
Low/mid Woofer dimensions
15 "
Woofer dimensions (mm)
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
3 "
Woofer voice coil (mm)
76.2 mm
Horn
CD Horn
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
HF driver voice coil
1 "
HF driver voice coil (mm)
25.4 mm
Dispersion (H x V)
90 x 50 °
Load rating (RMS)
500 W
Peak power
1000 W
Frequency response
50 - 16000lx @ 1m
SPL (1W/1m)
100 dB
Max. SPL
127 dB
Impedance
8 Ohm(s)
Protection circuits
HF Driver
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Speakers per amplifier channel (DSP44/45K)
3
Cabinet material
15 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex
Monitor angle
54 °
Width
480 mm
Height
737 mm
Depth
455 mm
Weight
25,7 kg

Description

STINGER 15 G3

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

The STINGER® 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

Accessories

Spare parts

LDEBG3HORN
Horn attachment 90° x 50° for Fullrange loudspeaker
Loading...
SM 7 DT
SM7DT
Dual-tilt flange (0°/5°)
Loading...
LDEB152G3X
Frequency crossover for LDEB152G3
Loading...
LDEB152G3GR
Grille for LDEB152G3 / LDEB152AG3
Loading...

Downloads

Manuals
Presets, Libraries & Settings
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name
Type
Format
File size
LDEB152G3 User Manual User Manual.pdf1.82 MB
LD Systems REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
LD Systems RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
LDEB152G3 Loudspeaker Presets DSP ParameterLoudspeaker Presets.pdf685.42 KB
LDEB152G3 Loudspeaker Presets Loudspeaker Presets.zip485.99 KB
LDEB152G3 EASE Data EASE Data.zip91.19 MB
LDEB152G3 2D Drawing 2D Drawing.pdf390.44 KB
LDEB152G3 2D Drawing 2D Drawing.dwg1.24 MB
LD Systems Catalogue / Brochure Highlight Brochure InstallCatalogue / Brochure.pdf6.51 MB
LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
LD Systems Catalogue / Brochure Highlight Brochure DJ & MusicCatalogue / Brochure.pdf4.4 MB
LDEB152G3 Catalogue / Brochure STINGER G3 SeriesCatalogue / Brochure.pdf8.62 MB
