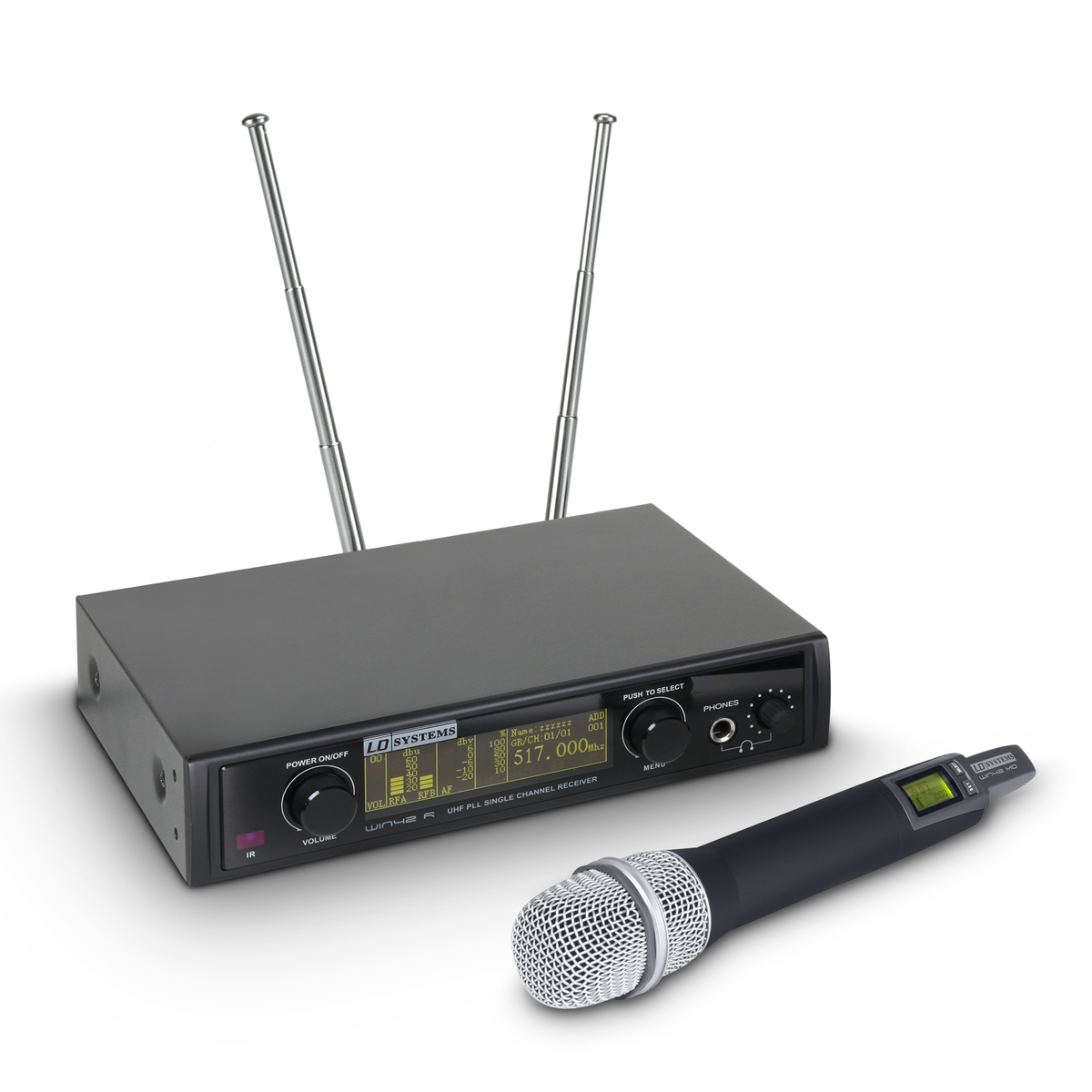

WIN 42 HHC B 5

WIN 42 HHC B 5

Wireless Microphone System with Condenser Handheld Microphone

Item no.: LDWIN42HHCB5

Guarantee: 24 months

EAN: 4049521204241

Sliding scale: 1

Unit: Piece

Packaging unit: 3

Series:WIN 42

Item highlights:

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system.

With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 516 MHz to 558 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules).

The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment.

The half-rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems.

  • UHF frequency range 516 - 558 MHz
  • 1680 frequencies
  • 20 groups with 577 fixed frequencies
  • user bank with 1680 freely selectable frequencies in 25 kHz increments
  • 255 addresses selectable
  • channel scan
  • true diversity receiver
  • interchangeable microphone capsules (dynamic / condenser)

Specifications

Product type
Wireless Microphone Systems
Type
Handhelds
Transmission frequency range
516 - 558 MHz

Items in this set

Product type
Wireless Microphone System Accessories
Type
Microphones
Transmission frequency range
516 - 558 MHz
Channels
1680
Groups
20 groups + 1 user group
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
60 - 16.000
Rated HF output power
Variable (10, 30, 50 mW)
Controls
select, Power, mute, Set
Indicators
multifunction LC display
Power supply
2 x AA battery
Operating time
>13 h (with alkaline batteries)
Length
255 mm
Diameter
52 mm
Weight
0,35 kg
Other features
IR frequency synchronisation, Adjustable audio sensitivity, Transmission power adjustable in 3 stages, Interchangeable microphone head, incl. batteries, Battery status indicator
Product type
Wireless Microphone System Accessories
Type
Receivers
Transmission frequency range
516 - 558 MHz
Channels
1680
Groups
20 groups + 1 user group
Antenna inputs
2
Antenna connector
BNC
Frequency response
60 - 16.000
Noise reduction
Squelch
Transmission optimization
address allocation
Total Harmonic Distortion (THD)
< 1 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Max. output level
+ 10 dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Controls
menu, Power / Volume, headphones volume
Indicators
multifunction LC display
Power supply
13.5 V DC
Operating voltage
13.5 V DC
Width
212 mm
Height
44 mm
Depth
184 mm
Weight
1 kg
Accessories (included)
User's manual, Batteries, 2 x antenna, Power supply
Other features
channel search function, IR frequency synchronisation

Videos for this item

Accessories

Spare parts

WIN 42 CC
LDWIN42CC
Condenser Caspule
Loading...
WIN 42 R B 5
LDWIN42RB5
Receiver for LD WIN 42 wireless microphone system
Loading...
LDWIN42ANT
Replacement Antenna for LDWIN42 Series
Loading...

Downloads

Manuals
Data Sheets & Specifications
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Certificates & Declarations
Display all
Name
Type
Format
File size
LDWIN42HHCB5 User Manual User Manual.pdf10.31 MB
WIN 42 Frequency List CountryFrequency List.pdf72.67 KB
WIN 42 Frequency List DeviceFrequency List.pdf53.34 KB
LD Systems REACh Declaration Adam Hall GmbHREACh Declaration.pdf493.71 KB
LD Systems RoHS Confirmation Adam Hall GmbHRoHS Confirmation.pdf197.63 KB
WIN 42 Declaration of Conformity UKCADeclaration of Conformity.pdf585.36 KB
WIN 42 Declaration of Conformity EGDeclaration of Conformity.pdf586.87 KB
LDWIN42HHCB5 Declaration of Conformity EGDeclaration of Conformity.pdf292.58 KB
LD Systems Catalogue / Brochure Highlight Brochure InstallCatalogue / Brochure.pdf6.51 MB
LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025Catalogue / Brochure.pdf24.23 MB
LD Systems Catalogue / Brochure Highlight Brochure DJ & MusicCatalogue / Brochure.pdf4.4 MB
LD Systems Manufacturer's Declaration LD-SYSTEMSManufacturer's Declaration.pdf66.91 KB
