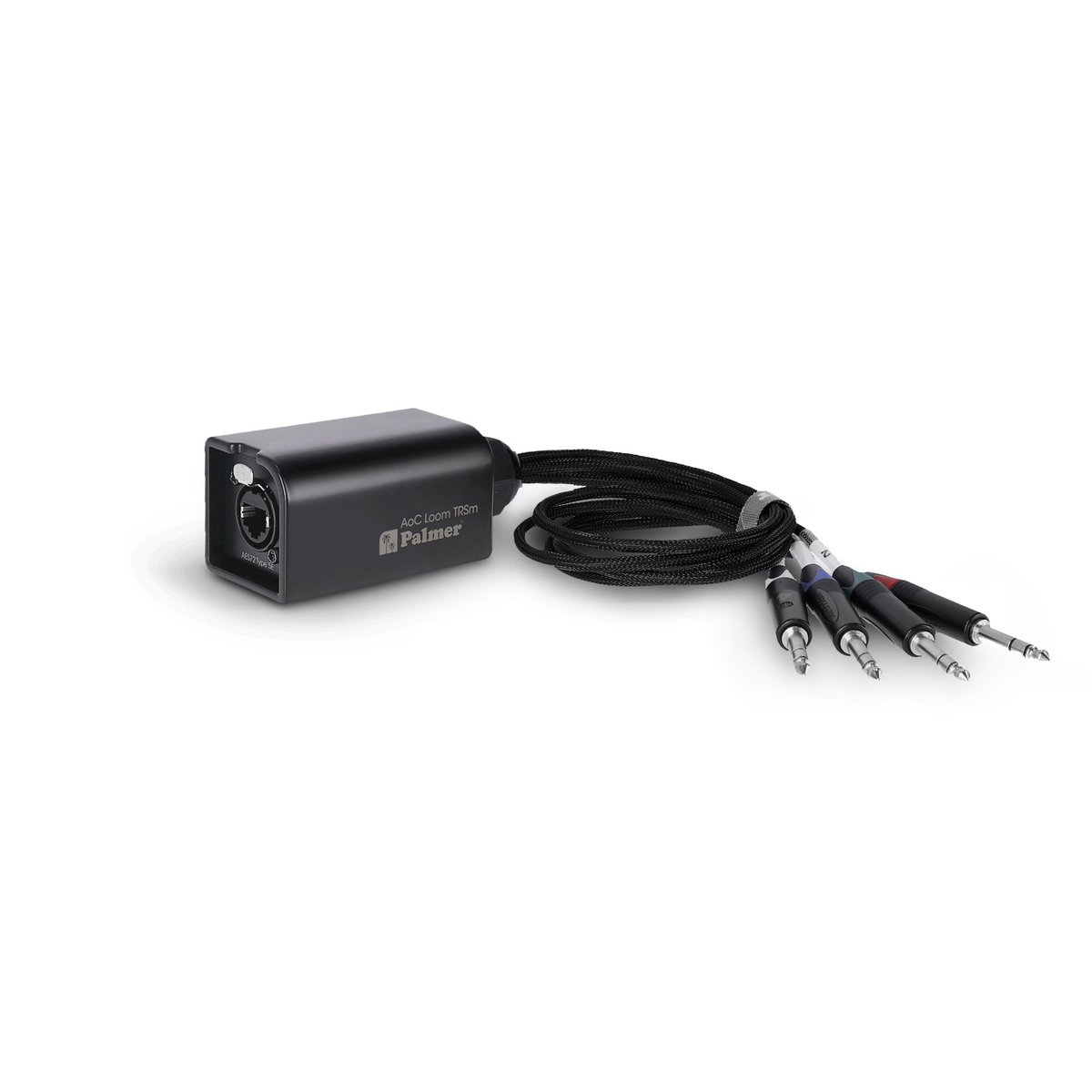

AoC Loom TRSm

AoC Loom TRSm

Audio over Cat Loom from etherCON to 4 x 6.3 mm TRS jack

Item no.: PAOCLTRSM

Guarantee: 60 months

EAN: 4049521908460

Sliding scale: 1

Unit: Piece

Packaging unit: 20

Series:AOC Series

Versions:

Item highlights:

  • 4 balanced analogue audio channels over Cat5e or higher (Ethernet cable not included)
  • etherCON to 4 x 6.3 mm TRS jack
  • AES72 Type 5E
  • Premium Neutrik components
  • Robust mesh cable, 0.5 m
  • Solid casing made of aluminium and steel
  • Engineered in Germany

Specifications

Product type
Audio over Cat adapter
Number of inputs
4
Input type
Balanced
Input Connector
RJ45
Number of outputs
4
Output type
Balanced
Output connector
6.35 mm TRS stereo jack
Material
Aluminium, Steel
Cable Length
0.5 m
Width
80 mm
Depth
45 mm
Height
45 mm
Weight
0,35 kg
Operating Temperature
- 20 - 70 °C
Air humidity
> 80 % (non-condensing)
Max. input level (< 1% THD, 1 kHz)
+ 32 dBu dBu
Frequency range
0 Hz - 20 kHz
THD (1 kHz, +4 dBu, unity, unweighted)
< 0,0005 %
Pin 1
Channel 3 -
Pin 2
Channel 3 +
Pin 3
Channel 4 -
Pin 4
Channel 1 +
Pin 5
Channel 1 -
Pin 6
Channel 4 +
Pin 7
Channel 2 -
Pin 8
Channel 2 +
Channel 1
Red
Channel 2
Green
Channel 3
Blue
Channel 4
White

Description

AoC Loom TRSm

The P AOC L TRS M is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals through a network cable (not included). The 6.3 mm TRS jacks are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

Audio is transmitted via a single, standard Ethernet cable, allowing the P AOC L TRS M to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L TRS M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.

All these factors make the P AOC L TRS M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.
