Item no.: NC3MDL1SB
Guarantee: 12 months
EAN: 7613187011283
Sliding scale: 1
Unit: Piece
Packaging unit: 500
Versions:
Item highlights:
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
- Durable D-shape metal shell
- Standard D-panel cut-out (24 mm)
- Soldered connections
- Protection class: IP40
- Gender: female
Specifications
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
male
Contacts
silver plated
Rated current per contact
16 A
Rated Voltage
< 50 V
Connection type
solder contacts
Temperature range
80 - -30 °C
Housing
die-cast zinc
Chassis shape
D
Width
26 mm
Height
31 mm
Depth
21 mm
Fire protection class
UL 94 HB
Protection class IP
IP40
Standards compliance
IEC 61076-2-103
Weight
0,021 kg
Additional information
in D-type housing
Description

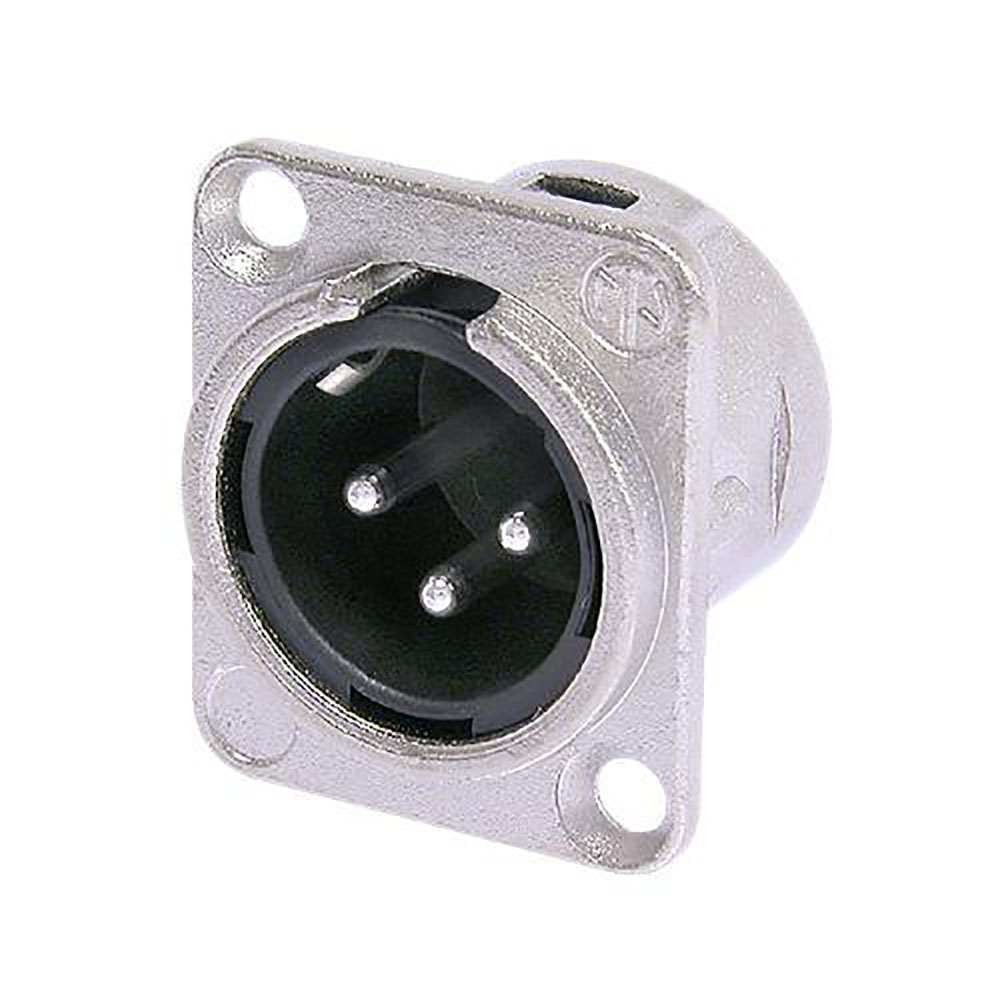

NC3MD-L-1
3 pole male receptacle, solder contacts, Nickel housing, silver contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
