Item no.: NCJ6FIS
Guarantee: 12 months
EAN: 4049521362972
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Item highlights:

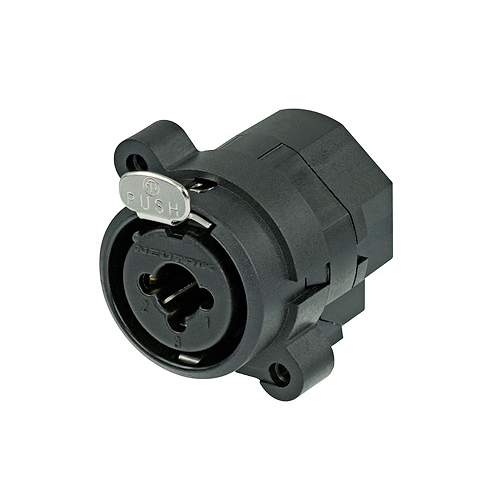

3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features & Benefits- Combined XLR receptacle and 1/4" phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
Specifications
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
female
Contacts
Bronze
Connection type
solder contacts
Housing
polyamide
Width
27 mm
Height
30 mm
Depth
36 mm
Weight
0,0145 kg
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NCJ6FIS 2D Drawing | 2D Drawing | 73.38 KB | |||
| Product Images | Images & Artwork | .zip | - |
