Adam Hall Cables
AH PDU 5 IP

Power Strip 5-way IP44 | 1.4m

slide 1 of 8
slide 1 to 3 of 8

RRP 15.21 £ / piece

Item No.:
8747IP5
EAN:
4049521203732
Guarantee:
24 Months
Unit:
piece
Series:
Power Distribution Units
Versions:
Questions about the product?
Dealer search

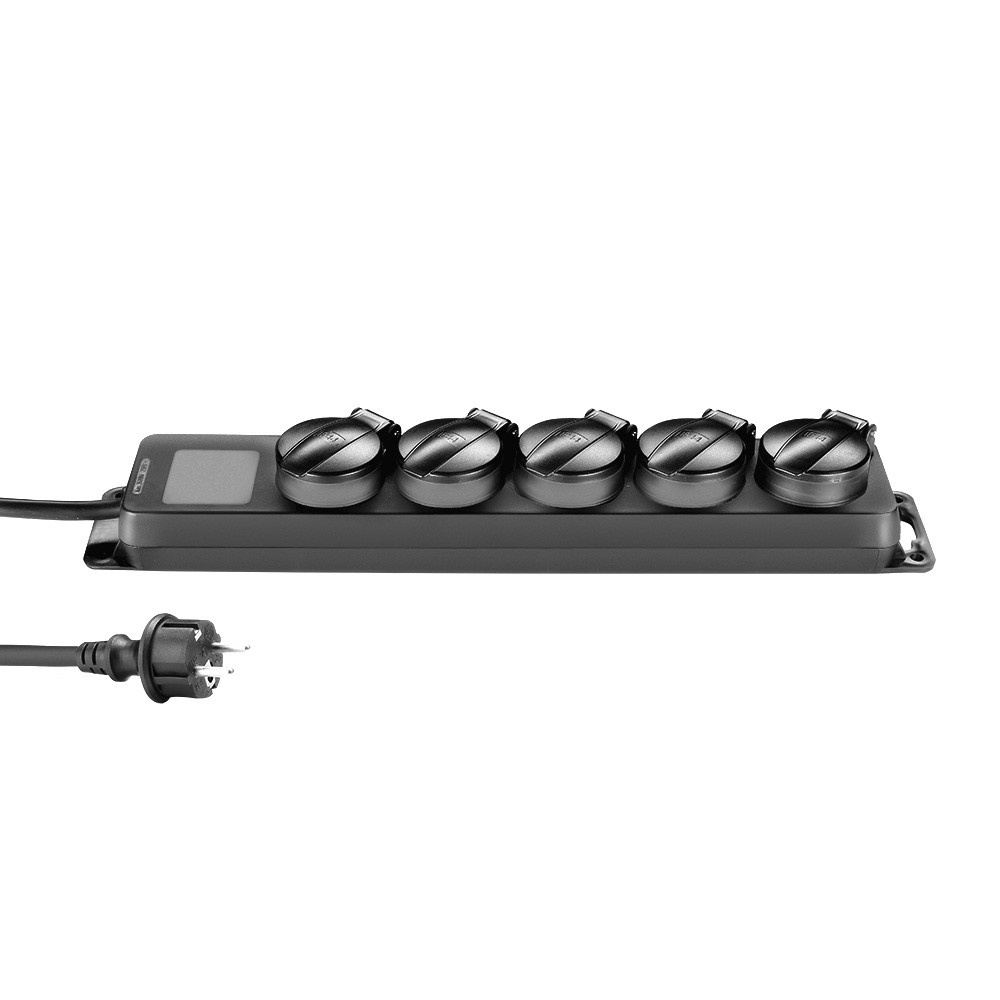

  • Portable Power Strip from our outdoor range

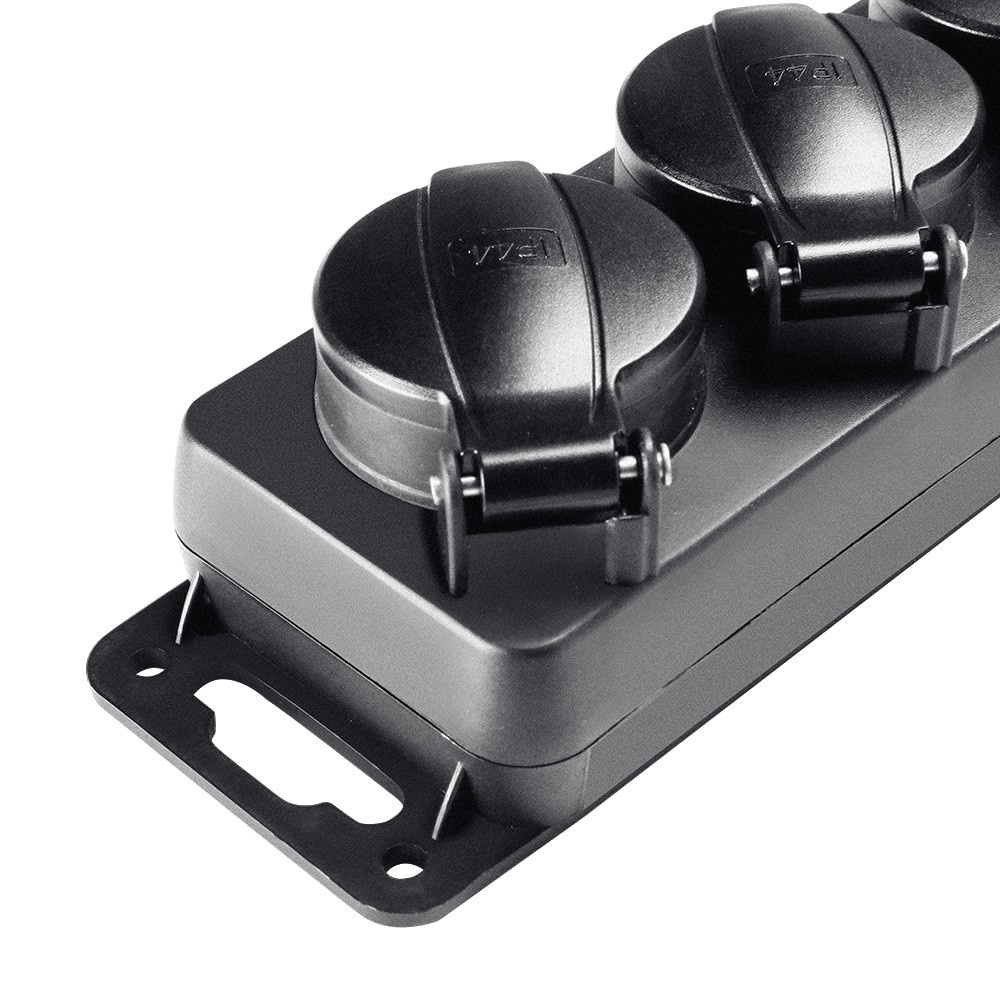

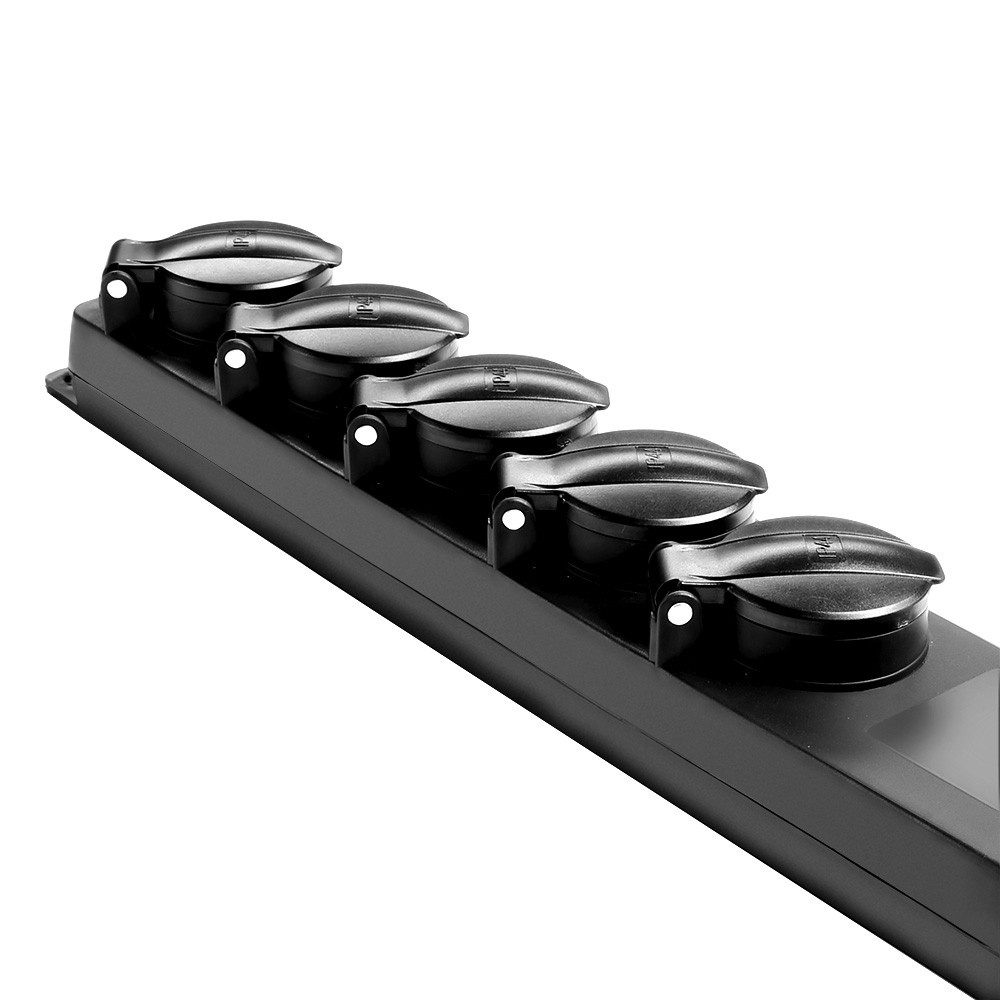

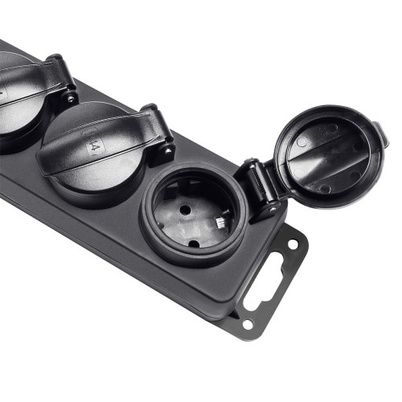

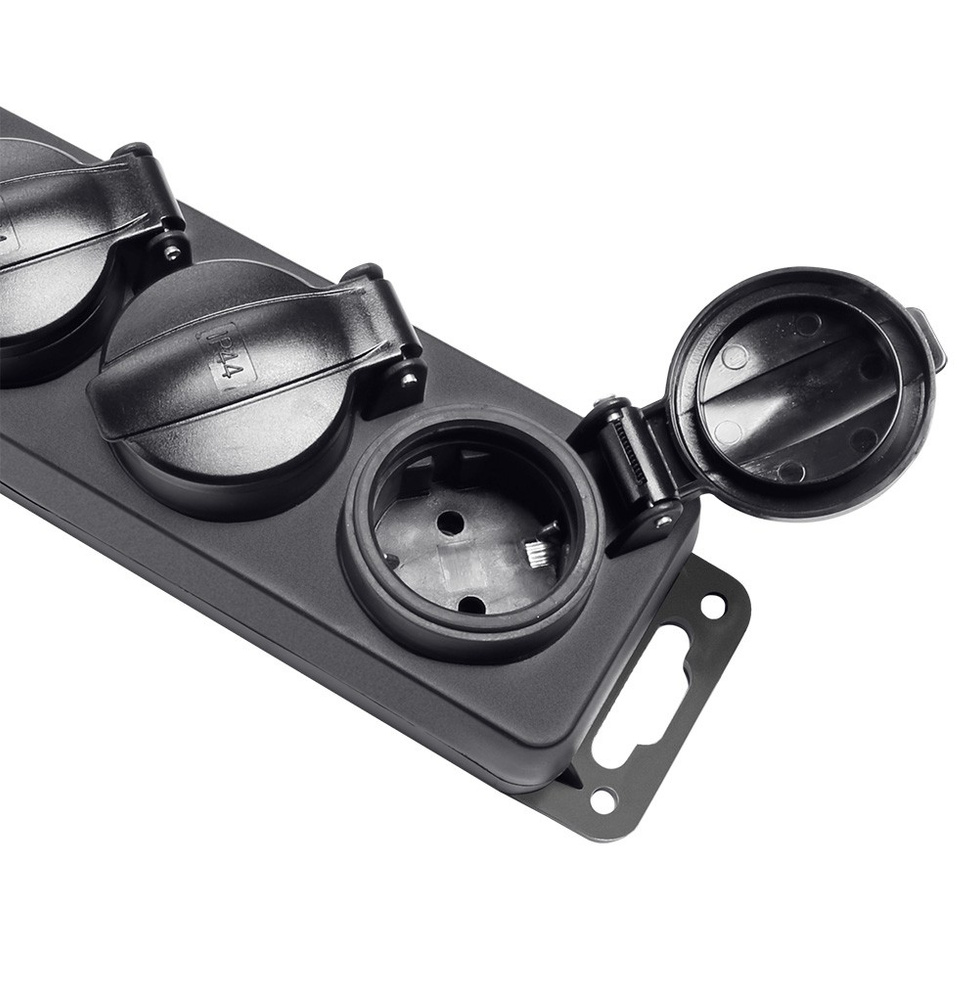

  • 5 Schuko sockets with cover rotated 45°
  • The sockets are IP44 rated

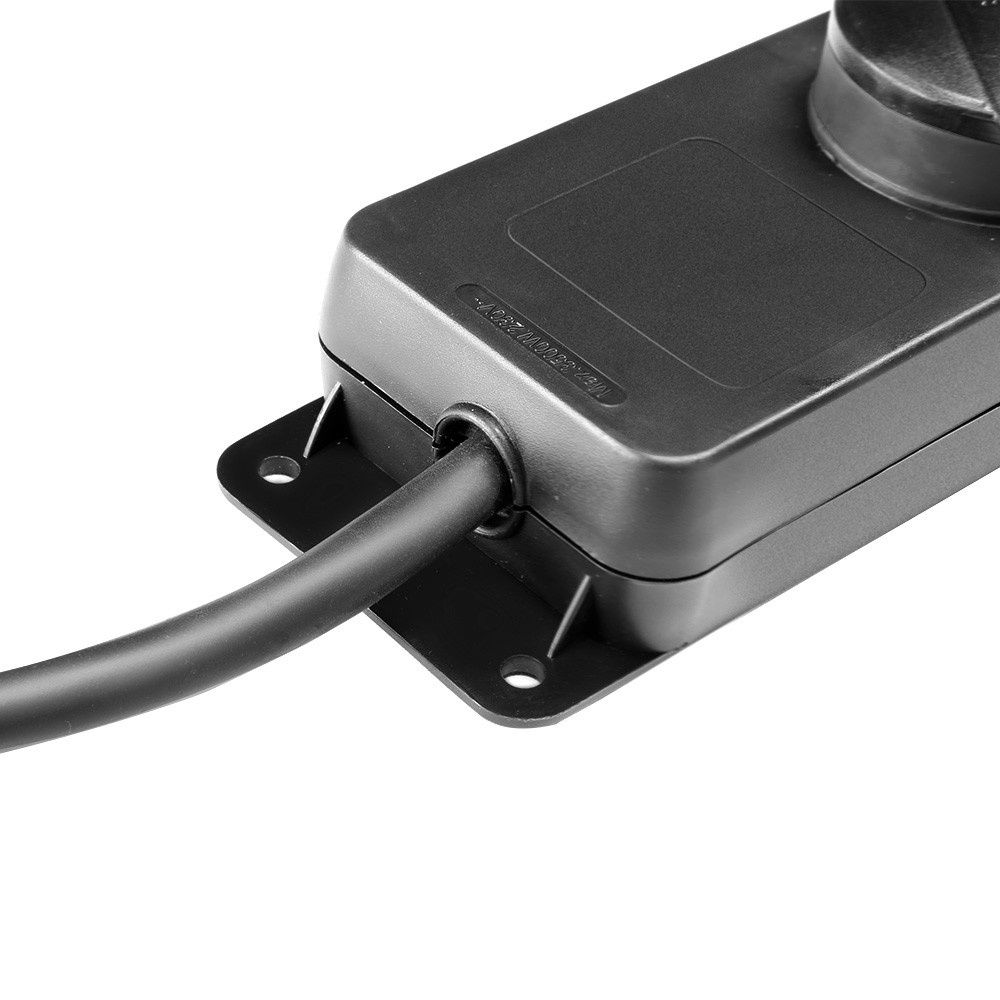

  • Permanently installed suspension

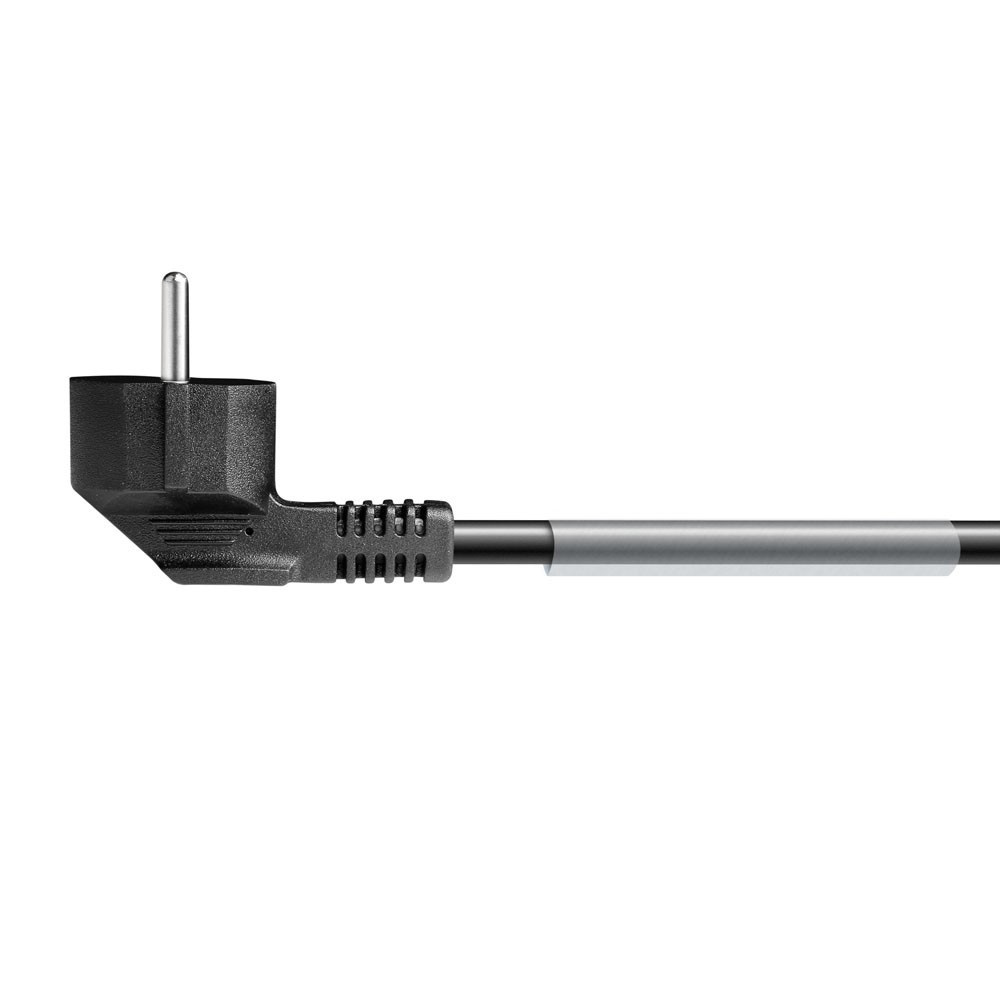

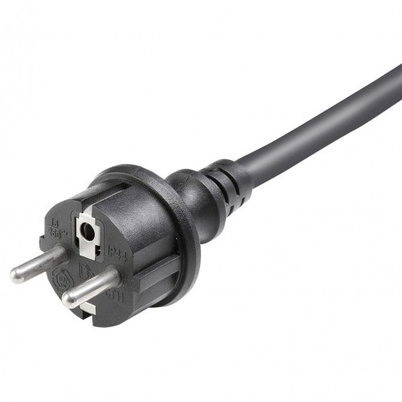

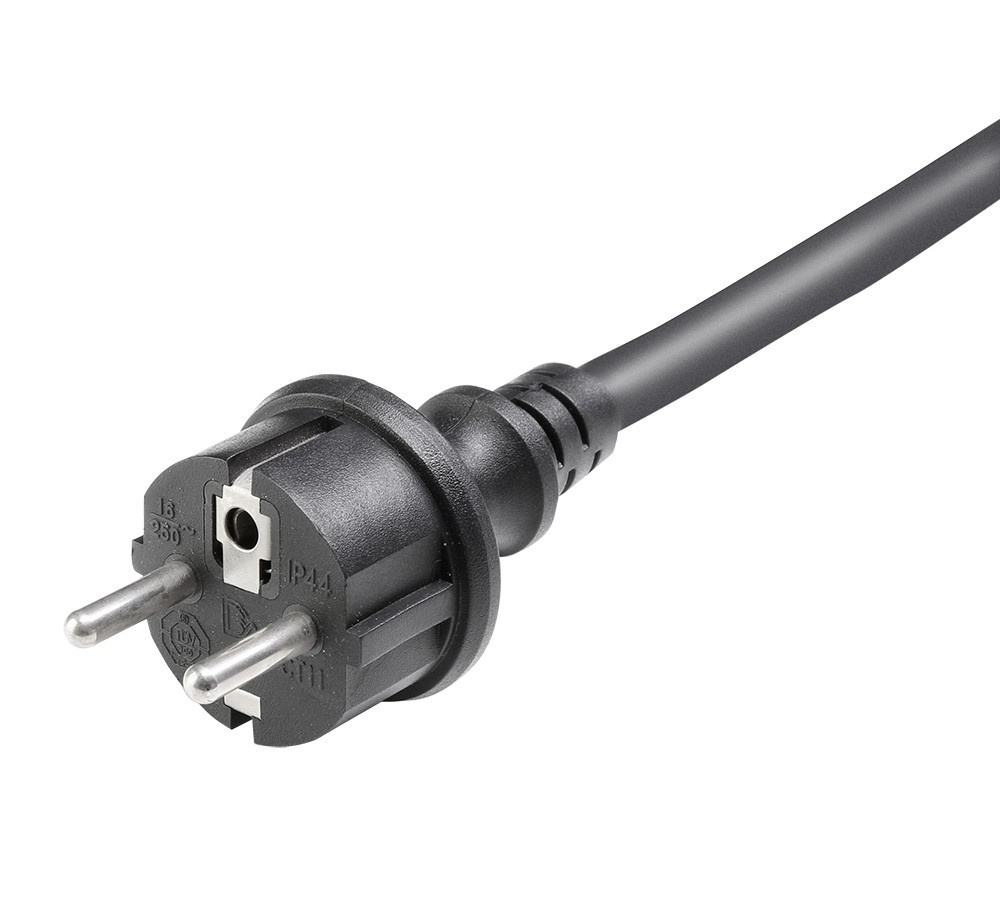

  • With 1.4 m PVC cable and angled Schuko plug
AH PDU 5 IP
AH PDU 5 IP
Power Strip 5-way IP44 | 1.4m

RRP 15.21 £ / piece

Specifications
Specifications
Description
Downloads/links
Buy from

Specifications

General
Input connector type
Schuko plug male
Output connector type
Schuko socket female
Output protection class
IP44
Material
Plastic
Cable length
1.4 m
Cable detachable
No
On/Off switch
No
Number of outputs
5
Colour
Black
Operation voltage
100 V AC - 250 V AC / 50 - 60 Hz
Max. Amperage
16 A
Line
Conductor material
OFC (Oxygen-free copper)
Conductor diameter
1,5 mm²
Cable jacket
Rubber (H07RN-F)
Cable diameter
7 mm
Environmental
Protection class
IP44
Dimensions & weight
Width
395 mm
Height
60 mm
Depth
70 mm
Weight
639 g

Description

The IP44 rated 8747 IP 5 features five type F grounded outlets and 1.4 m power cord with standard earthing contact CEE 7/7 power plug for additional reach and flexibility. It is suitable for general outdoor use and protected against solid objects over 1mm in size and sprays of water.

Series

Downloads/links

Info sheet

Category: Data Sheet

Type: pdf

File size: 475 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 73 KB

Item images

Category: Product images

Type: zip

File size: -

 Name
Category
Type
File size
Info sheet Data Sheet pdf 475 KB
Tender documents Tender Specifications zip 73 KB
Item images Product images zip -
