Cameo

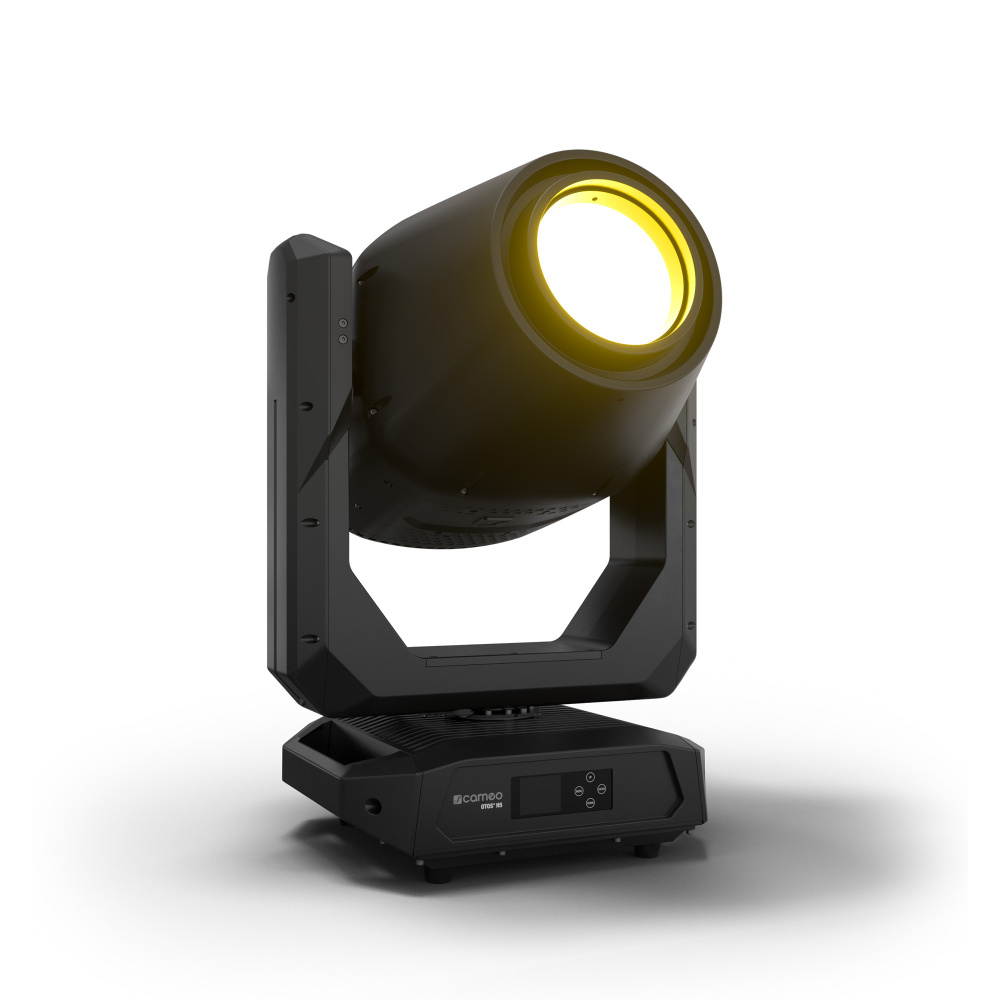

OTOS® H5

IP65 Beam Spot Wash Hybrid Moving Head

slide 1 of 22
slide 1 to 3 of 22

Price on request

Item No.:
CLOTOSH5
EAN:
4049521655425
Guarantee:
24 Months
Unit:
piece
Versions:
  • IP65 rated beam spot wash hybrid moving head with 19,000 lm luminous flux
  • Continuously adjustable CMY colour mixing in addition to 15 dichroic filters for saturated colours and white tones
  • High-quality optics with 135 mm front lens and especially wide zoom range of 2° to 42°
  • Rotating gobo wheel with 8 indexable and rotatable replaceable glass gobos + open
  • Static gobo wheel with 19 gobos + open
  • 2 rotatable and indexable prisms for...
Read on
OTOS® H5
OTOS® H5
IP65 Beam Spot Wash Hybrid Moving Head

Price on request

Specifications
Specifications
Description
Videos
Stories
Downloads/links

Specifications

Cold white
DMX512
Protection class IP65
Master & slave
Standalone mode
RDM
Animation wheel
Circular prism
CMY
Colour wheel
Discharge lamp
Focus
(Gobo wheel)
Linear prism
Linear CTO
General
Product type
Discharge Moving Lights
Type
IP65, Moving Head
Number of lamps
1
Type Lamp
Signify MSD Silver 480 W
Operating time of illuminant at rated power
1500 Hours
Maximum lifetime of illuminant
3000 Hours
Color temperature
6800 K
Colour spectrum
Cold white
Colour mixing function
CMY
Colour rendering index (CRI)
High CRI Filter > 80
Color wheel Number of colors
15 + open and continuous positioning
Number of gobos
27 + open (19 fixed + 8 rotating)
Effects
2 x Prism layers (6 x linear + 8 x circular), Animation Wheel, Frost filter 5°
Dispersion
2 - 42 °
DMX input
XLR 5-pin male
DMX output
XLR 5-pin female
DMX mode
26-channel, 32-channel
DMX Functions
Animation Wheel, Colour wheel 1, Colour wheel 2, Colour wheel 3, Cyan, Cyan Fine, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Gobo 1 Rotation, Gobo 1 Rotation Fine, Gobo 1 Shake, Gobo 2 Shake, Gobo wheel 1+ 2, High CRI Filter, Magenta, Magenta Fine, Pan/Tilt, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, Prism 1/2, Prism Rotation, Strobe, System settings, Yellow, Yellow Fine, Zoom, Zoom Fine
Standalone Functions
Master / Slave mode, Quicklight, Static
System settings
Blackout functions, Colour/ Gobo wheel, Display Illumination, Display Reverse, Feedback, Movement Blackout, Pan Angle, Pan Reverse, reset, Scroll / Snap, Signal Fail, Test, Tilt Reverse, User default values
Control
DMX512, RDM enabled, W-DMX™ (Transceiver)
Controls
Down, Enter, menu, Up
Indicators
Illuminated 2" TFT display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Electrical protection class
1
Power consumption
700 W
Luminous flux
19000 lm
Power supply connector
PowerCON TRUE1 compatible
Protection class IP
IP65
Ambient temperature (in operation)
-15 - 40 °C
Housing material
Magnesium
Cabinet colour
Black
Housing Cooling
Temperature controlled fan
Width
456.4 mm
Height
748.8 mm
Depth
334.7 mm
Weight
33 kg
Accessories (included)
1 m Power cable with Neutrik powerCON TRUE1 plug, 2 x omega mounting

Description

Extremely flexible Beam Spot Wash Hybrid Moving Head for outdoor use

As a professional designer of light shows, light operator or event technician, having one device that can do many things gives you the freedom to create an even more exciting stage experience for your audience. The OTOS® H5 not only lets you master this challenge with flying colours as a true hybrid device, but it can also be used for outdoor purposes in accordance with the IP65 rating. Its moving head is capable of many jobs, from a beam to a spotlight or wash light. You can tap into your power of lighting design creativity with the discharge-lamp Moving Light, which is extremely flexible, highly functional and very powerful.

High output and brilliant colour reproduction

The 480 W discharge-lamp moving light impresses with a powerful output of 19,000 lm, while the OTOS® H5's flat field filter enhances the uniform distribution of brightness at the same time. A beam angle of 2° to 42° is possible with the OTOS® H5 due to the high-quality optics and motorised zoom. From tightly focused effects to wide-area illumination, anything is possible. 16-bit resolution and four selectable curves also enable smooth, uniform dimming. There is a full range of colours for you to work with thanks to CMY colour mixing and additional colour wheel with 15 dichroic filters. Due to the brilliant colour reproduction with a high CRI filter (>80), the device is also ideally suited for use in TV and film footage.

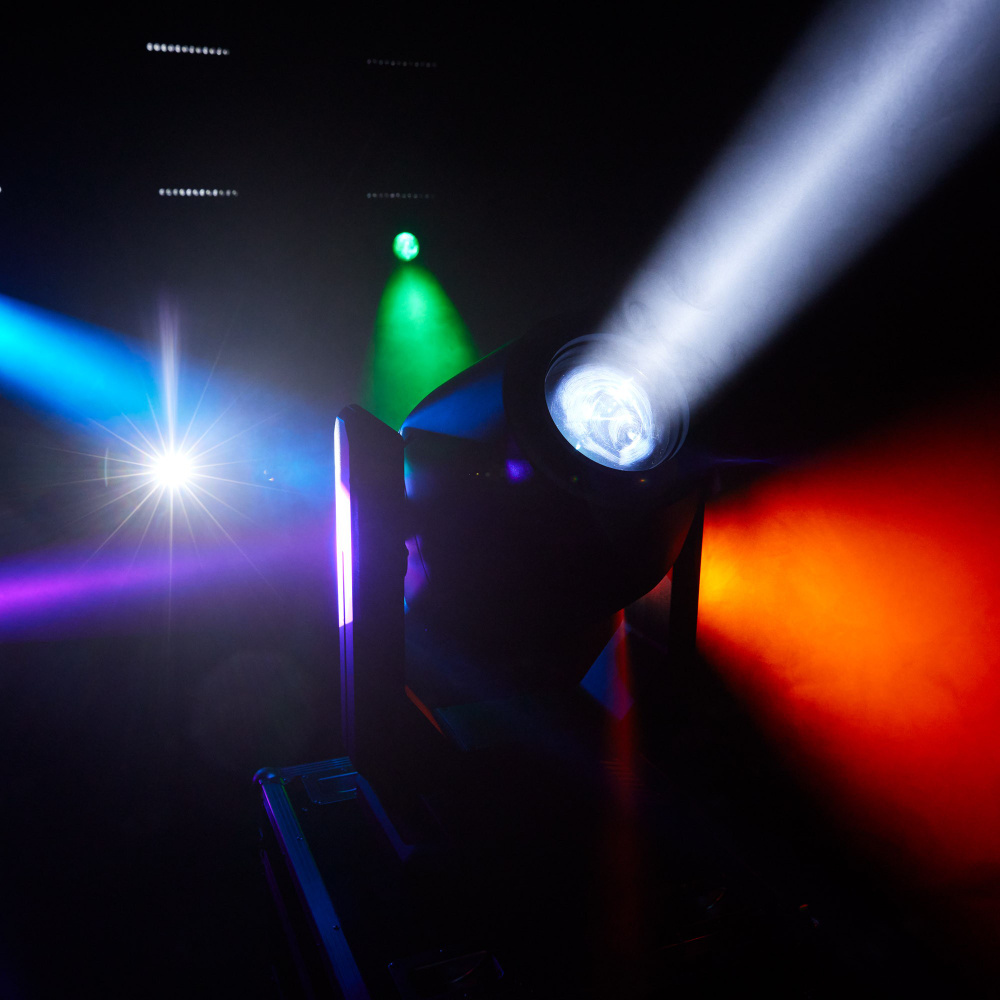

Variable and emotionally charged light show with a fascinating variety of effects

A fascinating array of lighting effects is achievable when you use prisms on two prism levels, the animation wheel and the variable frost filter for wash light applications. The prisms open up unheard- of possibilities in terms of creating diverse mid-air effects. Multifaceted lighting is further enriched by two gobo wheels with 27 gobo templates in total, eight of which are exchangeable and rotatable glass gobos and 19 of which are static gobos.

Adjustable control options and easy-to-use operating elements

As a lighting technician, you've got a lot to do in little time: mains-free set-up is just as easy as it is fast with the battery-operated and easily readable OLED display with four operator touch-buttons. The control options also make it possible to flexibly connect and control the OTOS® H5 via the built-in W-DMX™ transceiver, DMX or RDM.

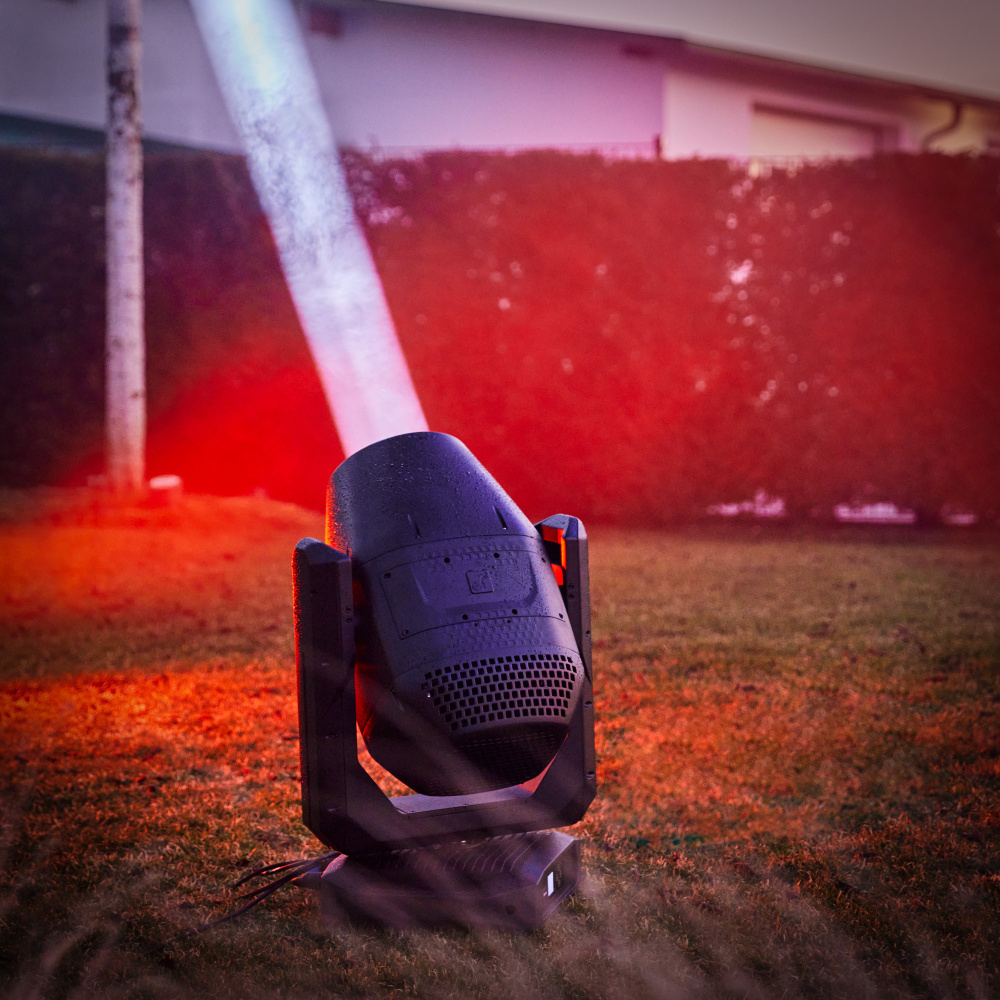

Fit for outdoor use in accordance with IP65 rating

You are by no means limited to indoor events with the Cameo OTOS® H5 as it is also suitable for outdoor use in accordance with the IP65 rating. Whether inside or outside, optimal cooling is guaranteed by a highly efficient heat pipe cooling system combined with temperature-dependent controlled fans. Two Omega brackets and a mains cable for safe installation and quick start-up are included with the Cameo OTOS® H5.
