Cameo

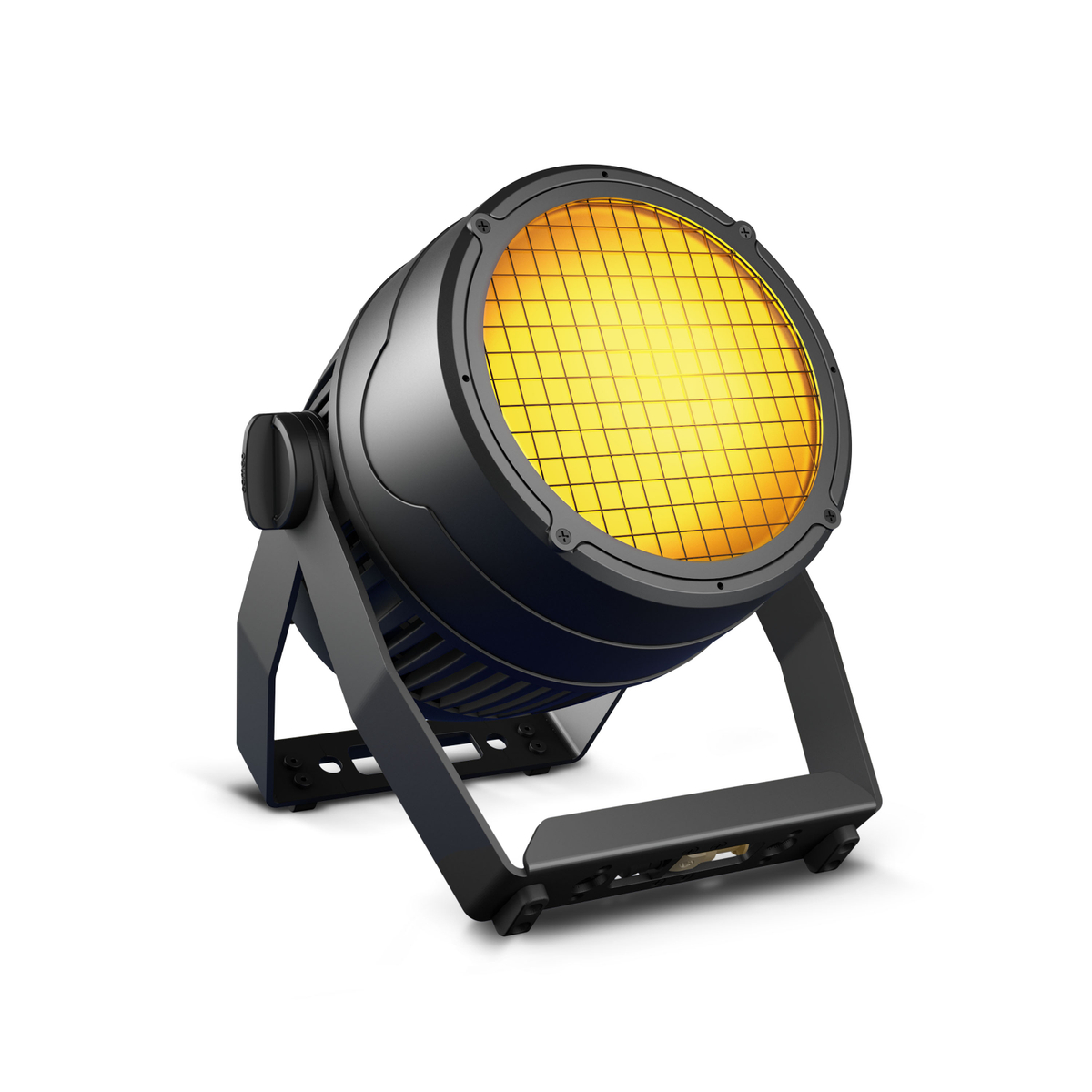

ZENIT® P200 DTW

Professional Outdoor LED PAR Spotlight with 240 W Dim-to-Warm Technology (DTW)

Archived item
slide 1 of 15
slide 1 to 3 of 15
Item No.:
CLZP200DTW
EAN:
4049521408205
Guarantee:
24 Months
Unit:
piece
Archived item: This item is no longer in our product range.
  • Powerful outdoor LED PAR spotlight with 46,800 lx @ 1 m
  • Versatile application as blinder, strobe, wash light etc.
  • Energy-saving replacement for conventional halogen blinders
  • Simulates the dimming characteristics of halogen lamps via Dim-to-Warm technology (DTW)
  • 4 selectable dimmer curves with adjustable dimmer response
  • 16-bit technology for consistent, high-resolution white tones and dimming characteristics
  • Interchangeable...
Read on
ZENIT® P200 DTW
ZENIT® P200 DTW
Professional Outdoor LED PAR Spotlight with 240 W Dim-to-Warm...

Price on request

Specifications
Specifications
Description
Videos
Stories
Downloads/links

Specifications

COB LED technology
DMX512
Protection class IP65
LED technology
Master & slave
Standalone mode
Strobe
Warm white
RDM
General
Product type
LED Outdoor Wash Light
Type
Outdoor
Colour spectrum
Amber, Warm White
Number of LEDs
1
LED type
240 W COB
LED PWM Frequency
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion
Lens 1: 34 °, Lens 2: 16 °
DMX input
IP65, XLR 5-pin male
DMX output
IP65, XLR 5-pin female
DMX mode
1-channel, 2-channel 1, 2-channel 2, 2-channel 3, 4-channel
DMX Functions
Amber, Dimmer, Dimmer Fine, Dimmer response, Strobe, Various system settings, Warm White
System settings
Calibration, Dim to Warm, Dimmer Curves, Dimmer response, Display Illumination, Display Lock, DMX Fail, Factory reset, Key illumination, LED PWM Frequency, Operating mode, Rotate display by 180°, Various system settings
Standalone modes
Auto programs, Master / Slave mode, Static, Strobe
Control
DMX512, RDM enabled
Controls
Down, Enter, Mode, Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
290 W
Power supply connector
Input and output, Power Twist sockets IP65 (output max. 10 A)
Housing material
Metal
Cabinet colour
Black
Protection class IP
IP65
Cooling
Temperature controlled fan (IP65)
Illuminance
Lens 1: 16200 lx, Lens 2: 46800 lx
Luminous flux
6100 lm
Color temperature
A: 1650 K, WW: 3100 K
Ambient temperature (operating)
-15 - 45 °C
Width
239 mm
Height
239 mm
Depth
271 mm
Weight
8,3 kg

Description

Looking for a combined blinder, strobe and wash light? Then look no further than our ZENIT® P200 DTW. Featuring high-quality warm white and amber-coloured LEDs, our Dim-To-Warm (DTW) technology and special software-based programming, the all-rounder ZENIT® P200 DTW can create optimal effects and rich warm colours. The PAR spotlight was developed as a replacement for traditional halogen headlights, which is why we equipped it with a front grille to give it the classic blinder look. And if you need rapid boost effects for your performance, the ZENIT® P200 DTW is the perfect choice: The blinder mode enables an impressive short-term brightness boost of 15%. Used as a wash light, the spotlight delivers tunable shades of white from 1600 to 3100 Kelvin and a CRI of over 97 - ensuring optimal colour reproduction for stage design and actors. The powerful 240-watt all-rounder is IP65-rated and thanks to its patented SPIN16® technology, is easily mounted indoors our outdoors.
