Cameo

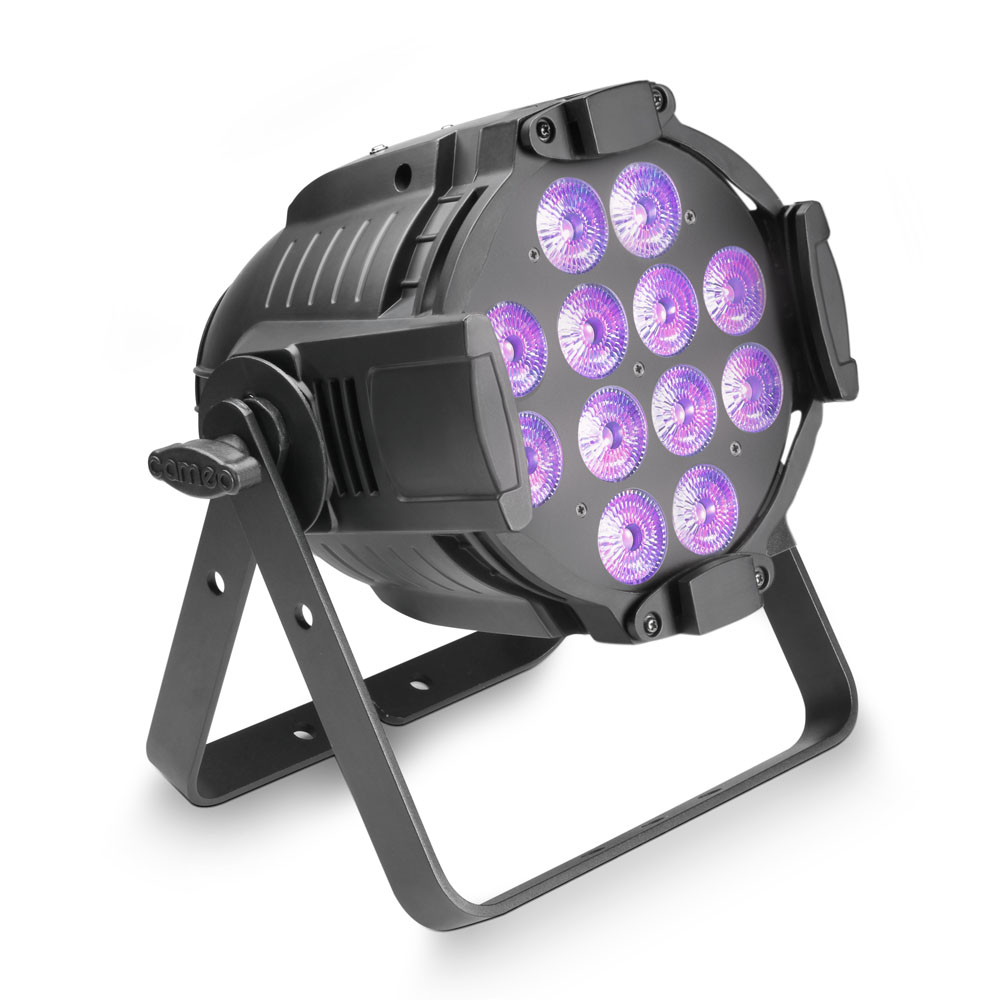

STUDIO PAR 64 RGBW AU 12W

12 x 12 W LED RGBWA + UV PAR Light in Black Housing

Archived item
slide 1 of 20
slide 1 to 3 of 20
Item No.:
CLPST64RGBWAU12W
EAN:
4049521170584
Guarantee:
24 Months
Unit:
piece
Series:
Archived item: This item is no longer in our product range.
  • 12 x 12 W Ultra High Power RGBWA+UV LEDs
  • Highest flexibility for perfect mixing of solid and pastel colours to warm rich colours and ultra violet
  • Flicker Free with a refresh rate of 3000Hz
  • Operation via DMX, in Master/Slave mode or as a single projector
  • 5 DMX modes for flexible operation
  • Built-in microphone for sound-control mode
  • Simple to operate using the four buttons and LC-display
  • Original Neutrik Powercon In-...
Read on
STUDIO PAR 64 RGBW AU 12W
STUDIO PAR 64 RGBW AU 12W
12 x 12 W LED RGBWA + UV PAR Light in Black Housing

RRP 336.60 £ / piece

Specifications
Specifications
Description
Videos
Stories
Downloads/links

Specifications

DMX512
Environment-friendly
LED technology
Master & slave
Music control
Standalone mode
Strobe
6-in-1 LED
RGBWA
UV
General
Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
RGBWA+UV
Number of LEDs
12
LED type
12 W 6in1 colour
Refresh rate
3000 Hz
Dispersion
25 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
2-channel, 3-channel 1, 3-channel 2, 6-channel, 9-channel
DMX Functions
colour fade, colour jump, RGBWA+UV, sound control, Strobe
Standalone modes
colour fade, colour jump, colour macro, slave mode, sound control, static colour, Strobe
Controls
Down, Enter, Mode, Up
Indicators
backlit LCD
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
110 W
Power supply connector
Neutrik PowerCon
Housing material
Metal
Cabinet colour
Black
Cooling
temperature-controlled fan
Fuse
F2AL / 250 V
Accessories (included)
1.2 m Powercon & Schuko, double bracket included
Dimensions without mounting bracket
Width
230 mm
Height
220 mm
Length
255 mm
Weight
0,338 kg

Description

The Cameo CLPST64RGBWAU12W is a professional PAR 64 projector with a 25° dispersion angle in a sturdy black housing made of cast metal with 12 bright 12 Watt 6-in-1 LEDs . The RGBWA+UV system allows for a creative lighting design with subtle pastel colours as well as brilliant, saturated colours. The refresh rate of 3000 Hz provides for flicker-free operation.

The CLPST64RGBWAU12W can be controlled flexibly via 5 DMX modes and can be used as a master, slave or stand alone with a wide range of functions, such as colour change, fade, macros, or strobe. For manual operation, the projector has a bright display with buttons for Mode, Enter, Up and Down; a microphone is integrated for music control.

XLR connectors are used for input and output of the DMX signal, the power supply is done via Neutrik PowerCon connectors. The power cord is included; a double bracket with non-slip locking screws offers numerous mounting options . With only 110 watts of power consumption, the CLPST64RGBWAU12W is particularly energy efficient.

Videos on this product

Stories

slide 1 of 1

Downloads/links

User's Manual

Category: Manual

Type: pdf

File size: 4 MB

DMX Control Table

Category: Data Sheet

Type: pdf

File size: 40 KB

Eco label

Category: Data Sheet

Type: pdf

File size: 2 MB

Photometric measurements

Category: Data Sheet

Type: pdf

File size: 1 MB

Technical drawing

Category: Data Sheet

Type: pdf

File size: 2 MB

Technical drawing

Category: Data Sheet

Type: dwg

File size: 3 MB

Compatbility Chart

Category: Data Sheet

Type: pdf

File size: 54 KB

Daslight V3 fixtures

Category: Software

Type: zip

File size: 25 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

Cameo Product Catalogue 2024

Category: Catalog

Type: pdf

File size: 12 MB

Item images

Category: Product images

Type: zip

File size: -

Name
Category
Type
File size
User's Manual Manual pdf 4 MB
DMX Control Table Data Sheet pdf 40 KB
Eco label Data Sheet pdf 2 MB
Photometric measurements Data Sheet pdf 1 MB
Technical drawing Data Sheet pdf 2 MB
Technical drawing Data Sheet dwg 3 MB
Compatbility Chart Data Sheet pdf 54 KB
Daslight V3 fixtures Software zip 25 KB
Tender documents Tender Specifications zip 131 KB
Cameo Product Catalogue 2024 Catalog pdf 12 MB
Item images Product images zip -
