Cameo
STUDIO PAR DTW

12 x 10 W Tri-LED STUDIO PAR with variable White Light and Dim-to-Warm Control

Archived item
slide 1 of 10
slide 1 to 3 of 10
Item No.:
CLPSTDTW
EAN:
4049521302978
Guarantee:
24 Months
Unit:
piece
Series:
Archived item: This item is no longer in our product range.
  • 12 x 10 watt Tri-LEDs 3-in-1 Cool White, Warm White and Amber
  • Full white temperature control from Tungsten to CW (1,600 - 6,800 K)
  • CRI 97 @ 2,800 K for natural colour rendering
  • Dim-to-Warm (DTW) technology to emulate halogen-style dimming
  • 4 Selectable 16-bit dimming curves
  • Unique Sound-to-Light and stand-alone functions for retro lights looks
  • RDM enabled
  • 7 DMX modes plus sound activation
  • Flicker free for...
Read on
STUDIO PAR DTW
STUDIO PAR DTW
12 x 10 W Tri-LED STUDIO PAR with variable White Light and...

RRP 321.23 £ / piece

Specifications
Specifications
Description
Videos
Stories
Downloads/links

Specifications

Environment-friendly
LED technology
Music control
Strobe
RDM
General
Product type
LED PAR Lighting
Type
Indoor, Studio PAR 64
Colour spectrum
Amber, Cold white, Warm white
Number of LEDs
12
LED type
10 W (ca. 50000 operating hours)
Refresh rate
3000 Hz
Dispersion
18° Beam, 34° Beam Field (without Diffusor) °
Lens
PE
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
1-channel, 13-channel, 2-channel, 3-channel CCT, 3-channel DIR, 3-channel Sound To Light, 9-channel
DMX Functions
Color Temperature, colour macro, Device Settings, Dimmer, Sound to Light, Strobe (incl. Random)
Standalone modes
Master / Slave mode, Static
Controls
Enter, Mode, Value Down, Value Up
Indicators
LC display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
130 W
Power supply connector
Neutrik powerCON IN / OUT
Housing material
Metal
Cabinet colour
Black
Protection class IP
20
Cooling
temperature-controlled fan
Luminous flux
3680 lm
Efficiency
28 lm/W
Color temperature
1600 - 6800 K
Operating Temperature
-15 - 45 °C
Dimensions including Mounting Bracket
Width
220 mm
Height
230 mm
Length
255 mm
Weight
4,9 kg
Accessories (included)
Neutrik Power Cable

Description

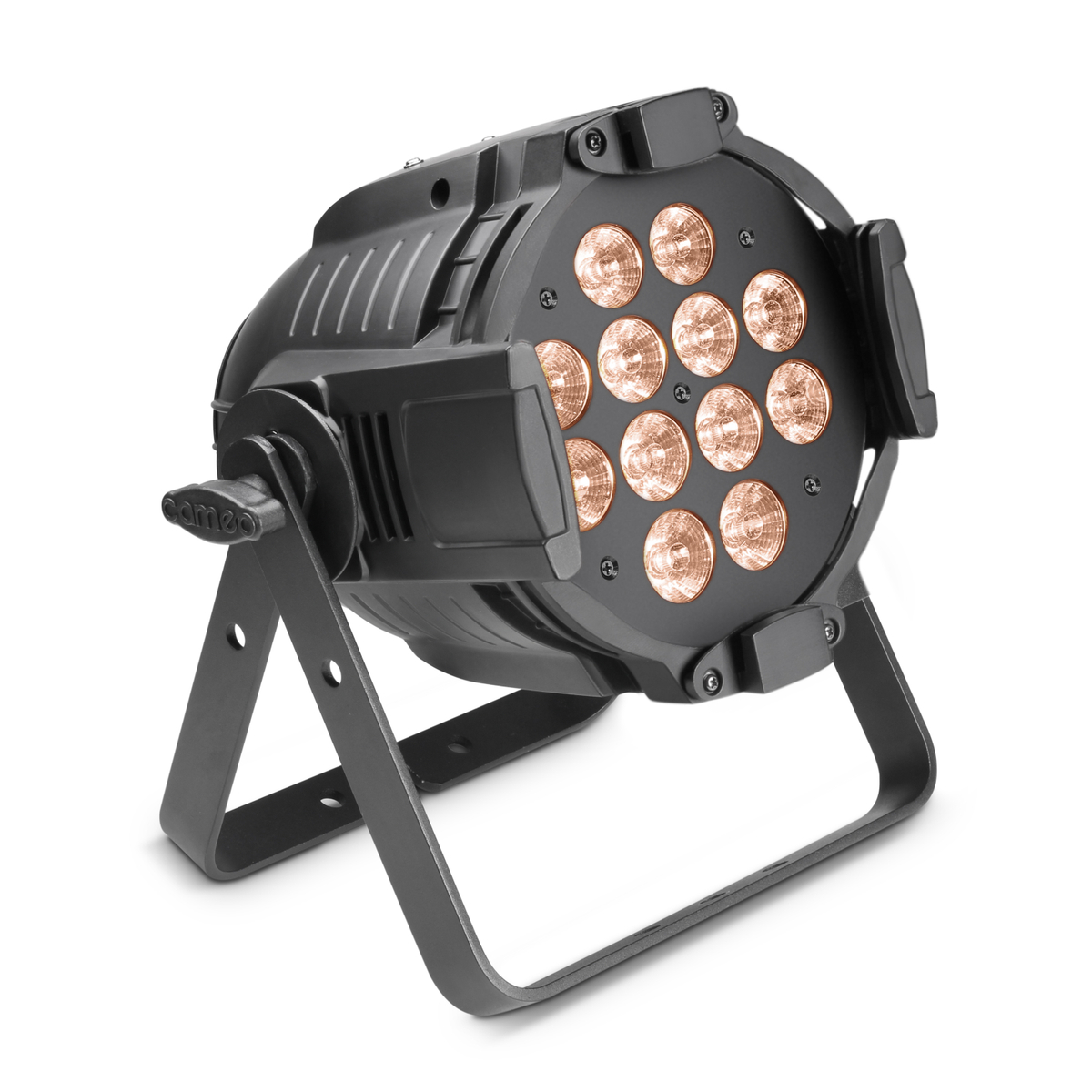

Featuring twelve 10 watt 3-in-1 cool white, warm white and amber Tri-LEDs, the Cameo STUDIO PAR DTW permits full white temperature control from warm Tungsten white to ultra bright cool white. The professional PAR light features an 18° beam angle and Dim-to-Warm technology to emulate the smooth dimming of halogen lamps. A temperature controlled fan and the 3,000 Hz refresh rate ensure cool and flicker-free operation.

The STUDIO PAR DTW is RDM enabled and provides 7 modes of DMX control plus sound activation. It includes a selection of 16-bit dimming curves with adjustable response, a high-speed strobe and macro functions. A 4-button display enables easy configuration. The rugged metal housing features 3-pin DMX and Neutrik powerCON inputs and outputs that enable convenient daisy chaining. The PAR light comes with a universal mounting bracket and Neutrik power cord.
