LD Systems
CURV 500 TS

Compact Touring Array System

CURV 500 TS
Watch the video

RRP 2.205,00 € / piece

Item No.:
LDCURV500TS
EAN:
4049521228353
Guarantee:
24 Months
Unit:
piece
Series:
CURV 500
Versions:
Questions about the product?
Dealer search
  • Portable touring array system for live events, DJs and bands
  • 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
  • 1,000 watts RMS system power and 131 dB max. SPL
  • Fully scalable for far and near field applications
  • SmartLink® plug & play adapter for versatile application
  • Durable aluminum unibody satellite construction
  • 18 mm birch ply subwoofer cabinet with Polyurea...
Read on
CURV 500 TS
CURV 500 TS
Compact Touring Array System

RRP 2.205,00 € / piece

Specifications

Specifications

General
Product type
PA Complete Systems
System output (RMS)
1000 W
Number of array satellites
4
Number of Smartlink adapters
1
Number of subwoofers
1
Max. SPL (continuous)
125 dB
Max. SPL (Peak)
131 dB
Color
Black
Frequency response
40 - 20000 Hz
Dispersion (H x V)
110° horizontal, vertical 34 °
RMS
Subwoofer: 700 W , Array Satellites: 300 W
Peak power
Subwoofer: 1400 W , Array Satellites: 600 W
Weight
48,2 kg
Amplifier
Class D
Protection circuits
DSP-based multiband limiter, overload, Short circuit, thermal overload
Accessories (included)
Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m)
Subwoofer
Low/mid driver dimensions
15 "
Low/mid driver dimensions (mm)
381 mm
Cabinet construction
Bass Reflex
Housing material
plywood
Cabinet surface
Polyurea
Dimensions Subwoofer (W x H x D)
600 x 437 x587 mm
Subwoofer weight
35.5 kg
Subwoofer features
4 ergonomic handels, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20
Items in this set

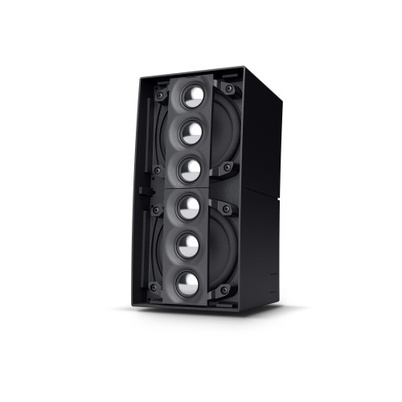

LD Systems CURV 500 D SAT Duplex Satellite Black
View items
Product type
Installation Loudspeakers
Type
Array Satellites, Wall-mounted Loudspeaker
Midrange dimensions
2 x 4 "
Tweeter dimensions
6 x 1 "
Load rating (RMS)
80 W
Peak power
160 W
Dispersion
110° horizontal, vertical 7 °
Impedance
8 Ohm(s)
SPL (1W/1m)
91 dB
Max. SPL
110 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Width
122 mm
Height
240 mm
Depth
126 mm
Weight
3,3 kg
LD Systems CURV 500 SLA SmartLink Adapter for up to six LD CURV 500® Satellites, Black
View items
Product type
PA Complete Systems Accessories
Type
Smartlink® Adapter
Material
Die-cast aluminium
Surface
Powder coated
Connectors
1x Phoenix, 1x Speakon compatible
Color
Black
Width
122 mm
Height
57 mm
Depth
57 mm
Weight
0,35 kg
Features
2 x 16 mm flanges, 2x M6 thread for optional wall mount
LD Systems CURV 500 S2 Two Array satellites for the CURV 500® Portable Array System, black
View items
Product type
PA Complete Systems Accessories
Type
Array Satellites
Midrange dimensions
1 x 4 "
Tweeter dimensions
3 x 1 "
Load rating (RMS)
40 W
Peak power
80 W
Speakers per amplifier channel (DSP44/45K)
8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion
110° horizontal, vertical (each satellite) 10 °
Impedance
16 Ohm(s)
SPL (1W/1m)
88 dB
Max. SPL
104 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Width
122 mm
Height
122 mm
Depth
122 mm
Weight (pair)
3.44 kg
Features
internal crossover, M3 thread for safety rope for installations, metal grille, SmartLink® System, WaveAhead® Technology

Description

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
