Nit zrywalny multigrip, 4,8 x 24,5 mm

Cod. articolo: 55914825

EAN: 8423552008942

Scala indicizzata: 200

Unità: Pz

Unità di imballaggio: 1200

Versioni:

Articolo in evidenza:

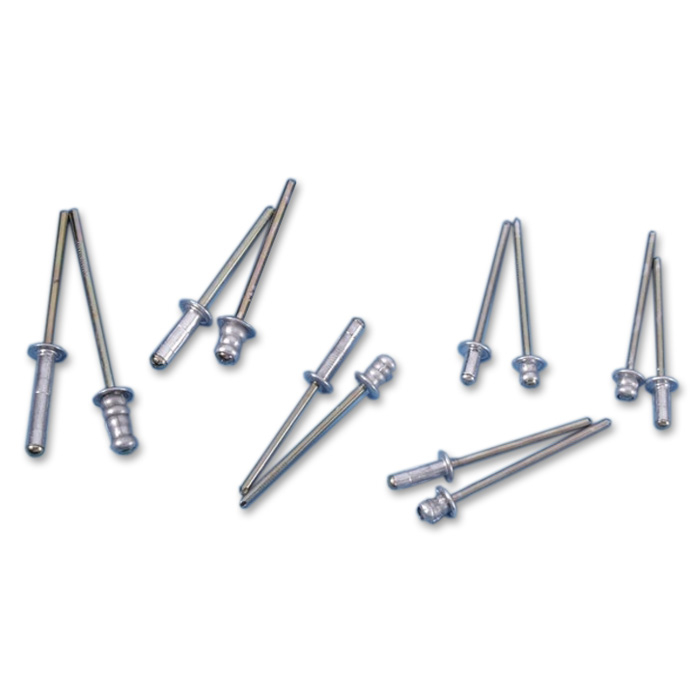

The Bralo Multigrip blind rivet is synonymous with for adaptability and reliability.

This blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO© blind rivets provide a robust and secure solution for a wide range of fixing system requirements. They have been designed to fulfill the highest quality standards and also to withstand the most demanding ambient conditions.

This is a fixing element made of an aluminium alloy, capable of covering a large clamping area. This means that you can use only one type of rivet to replace several standard rivets and reduce storage costs at the same time.

Due to the special wide fastening properties on the blind side, the load and torque forces are evenly distributed.

The Bralo Multigrip blind rivet provides a uniform riveting process, a robust and high-quality fixing which is resistant to dynamic influences.

Can be used to connect different materials such as metal to metal, aluminium, steel, stainless steel, metal to plastic or plastic to plastic Other rivet versions for special applications and requirements available in the shop.

Specifiche

Typ nitu
Nity Multigrip
Materiał nitów
Aluminium
Powłoka nitu
Stop aluminiowo-magnezowy (AlMg 3.5)
Profil głowicy
Łeb zaokrąglony
Materiał trzpienia
Stal
Powłoka na trzpieniu
Ocynkowany
Kolor
Srebrny
Ścinanie
1 470 N
Napięcie
2 400 N
Długość nitu
24,5 mm
Średnica nitu
4,8 mm
Zakres mocowania
12,5 - 20 mm
Średnica głowicy
9,9 mm
Wysokość główki
1,8 mm
Średnica trzpienia
2,75 mm
Waga
3 g
