Adam Hall Cables

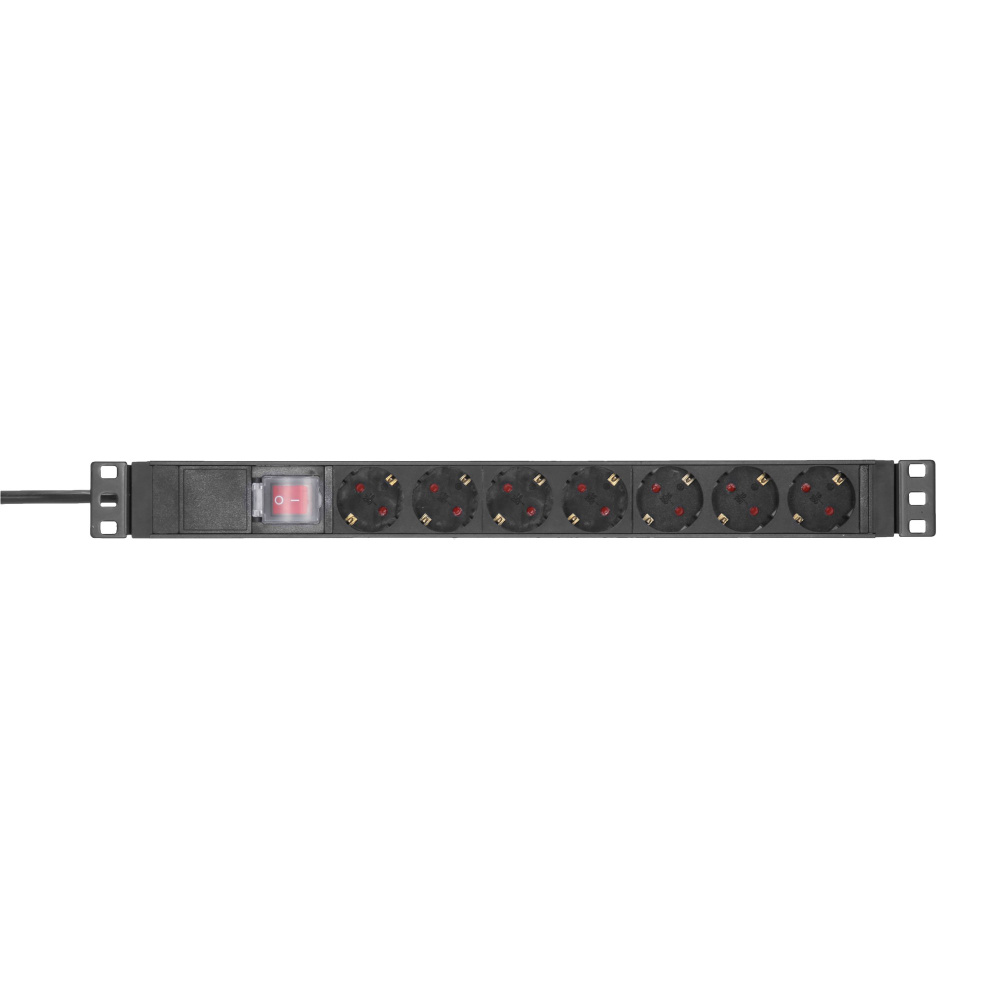

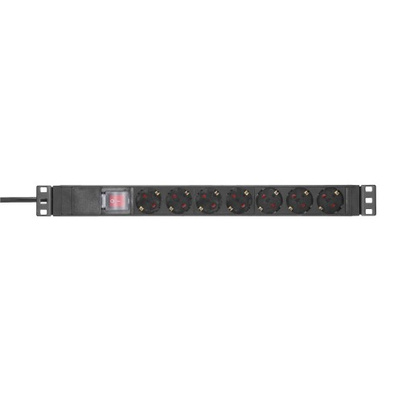

AH RACK PDU 7S

19" Power Strip 1U 7-way with switch & protection cap

slide 1 of 10
slide 1 to 3 of 10

RRP 44.49 $ / piece

Item No.:
87471X7
EAN:
4049521683039
Guarantee:
24 Months
Unit:
piece
Series:
Power Distribution Units
Versions:
Questions about the product?
  • Mountable Power Strip from our 19" PDU range

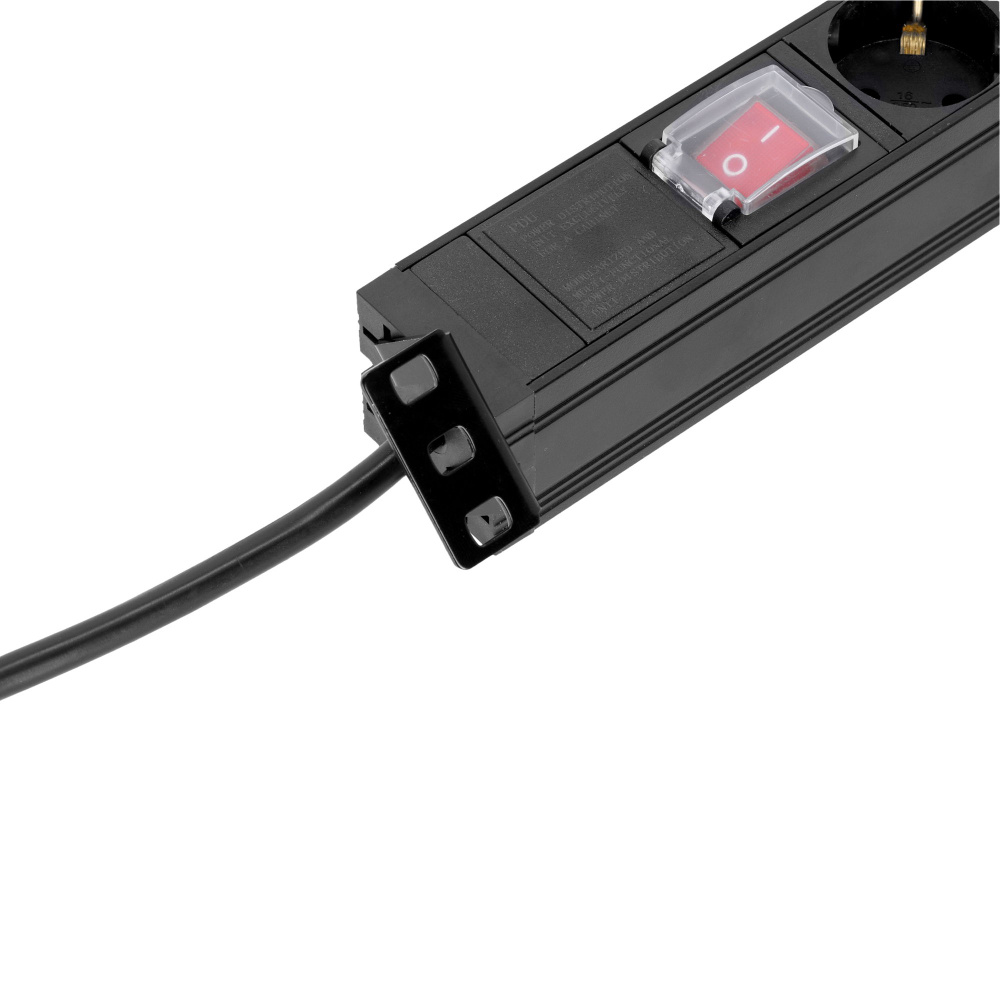

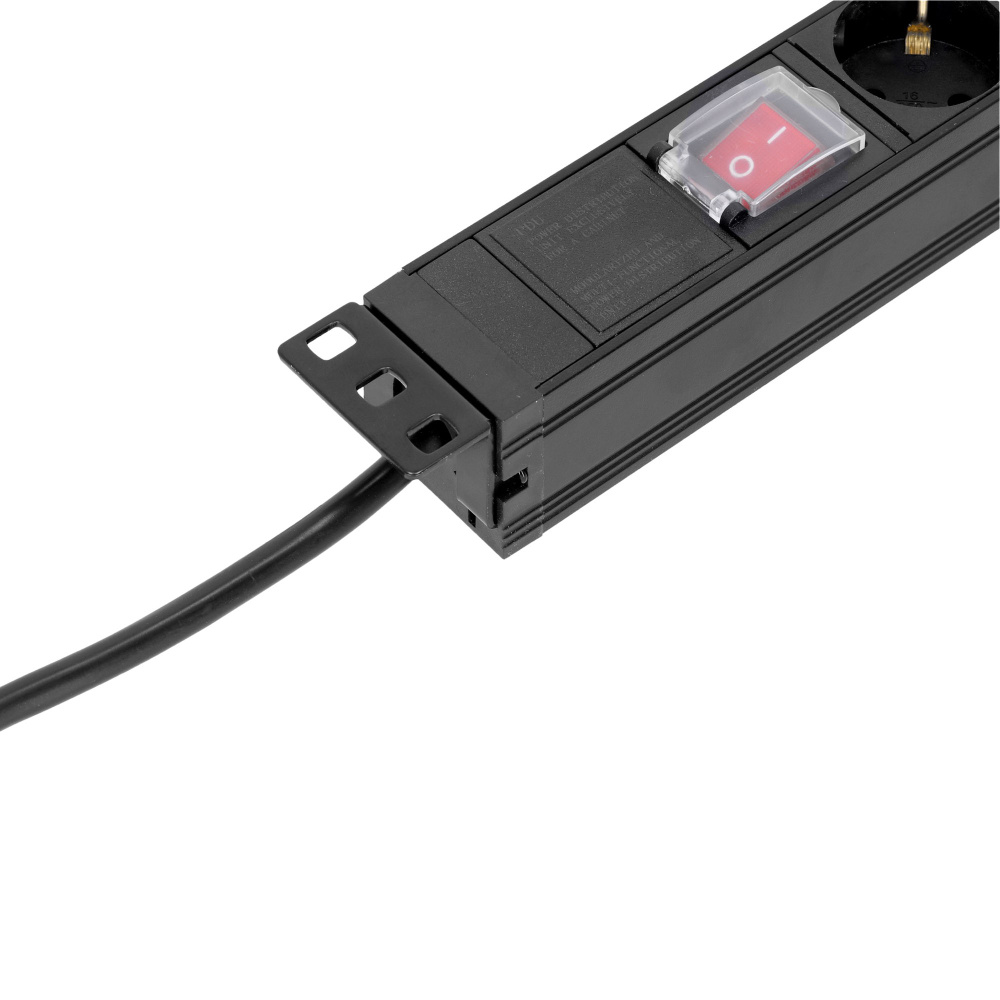

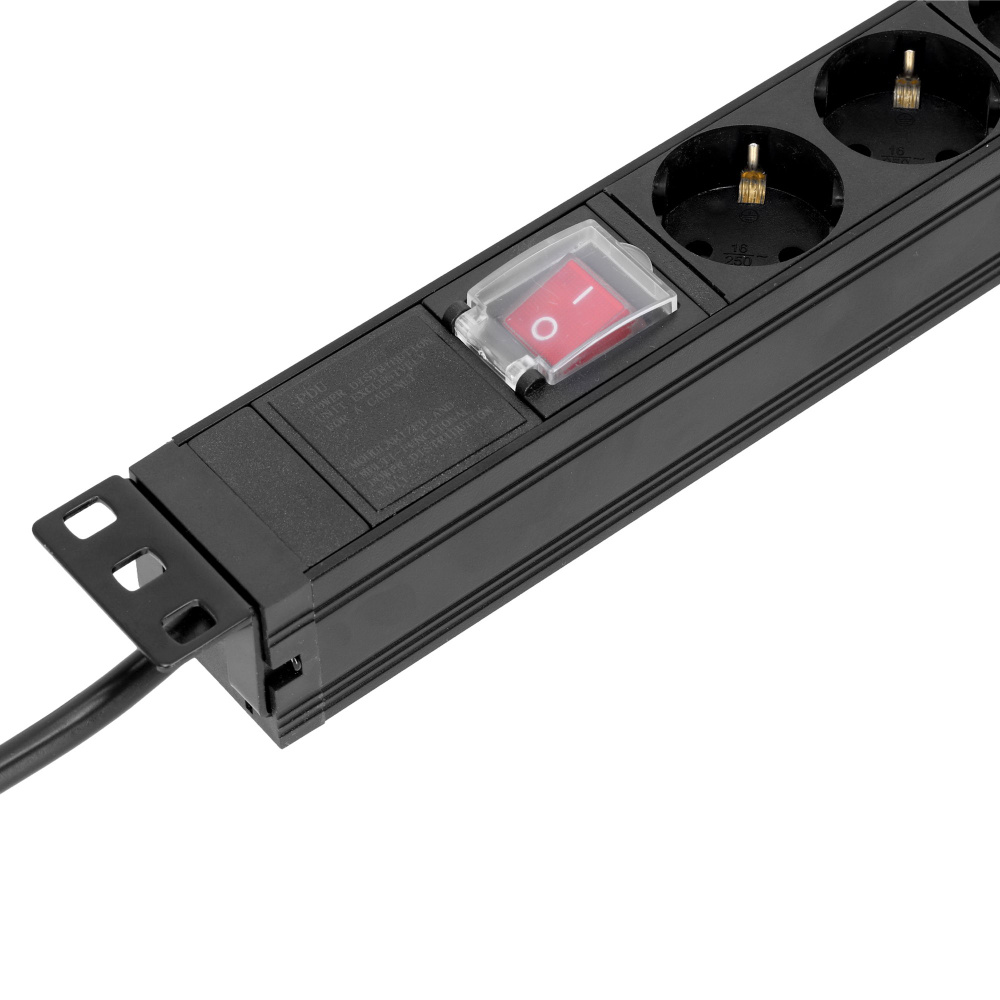

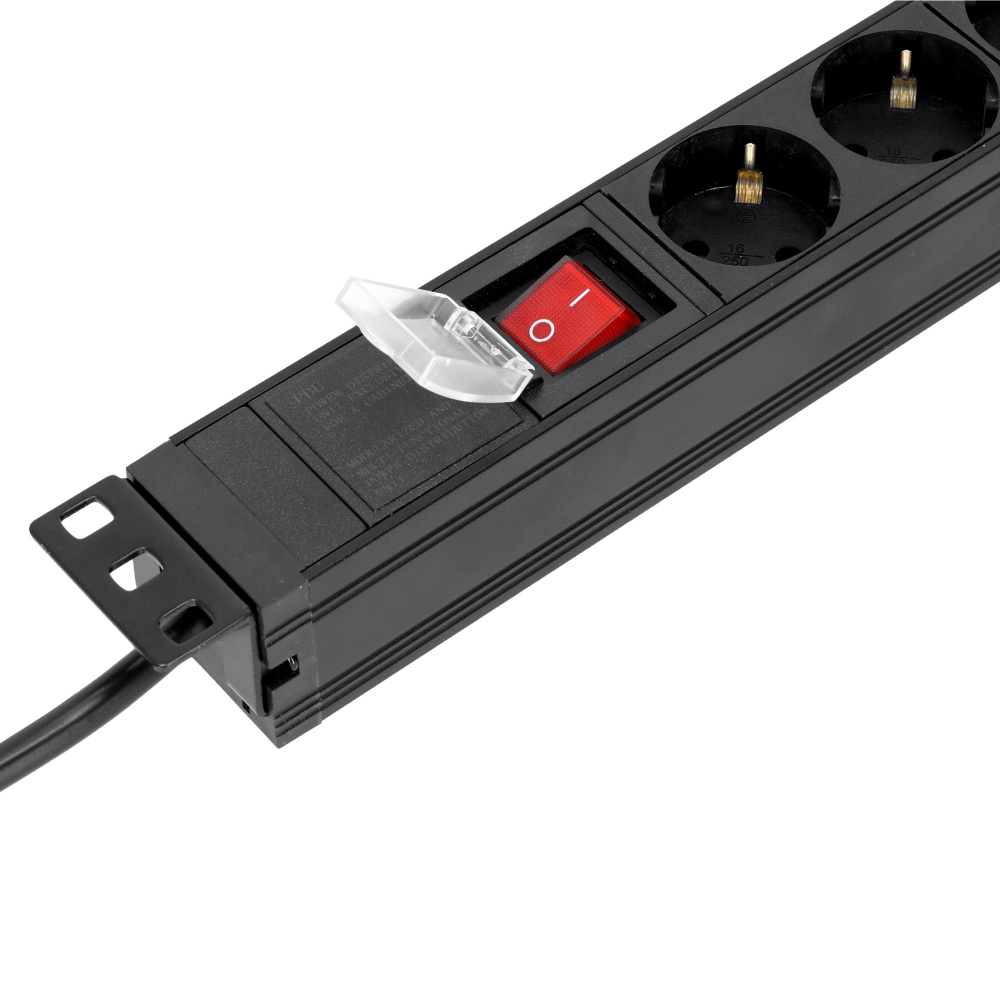

  • With recessed, illuminated switch and protective cap
  • 7 Schuko sockets rotated 45°

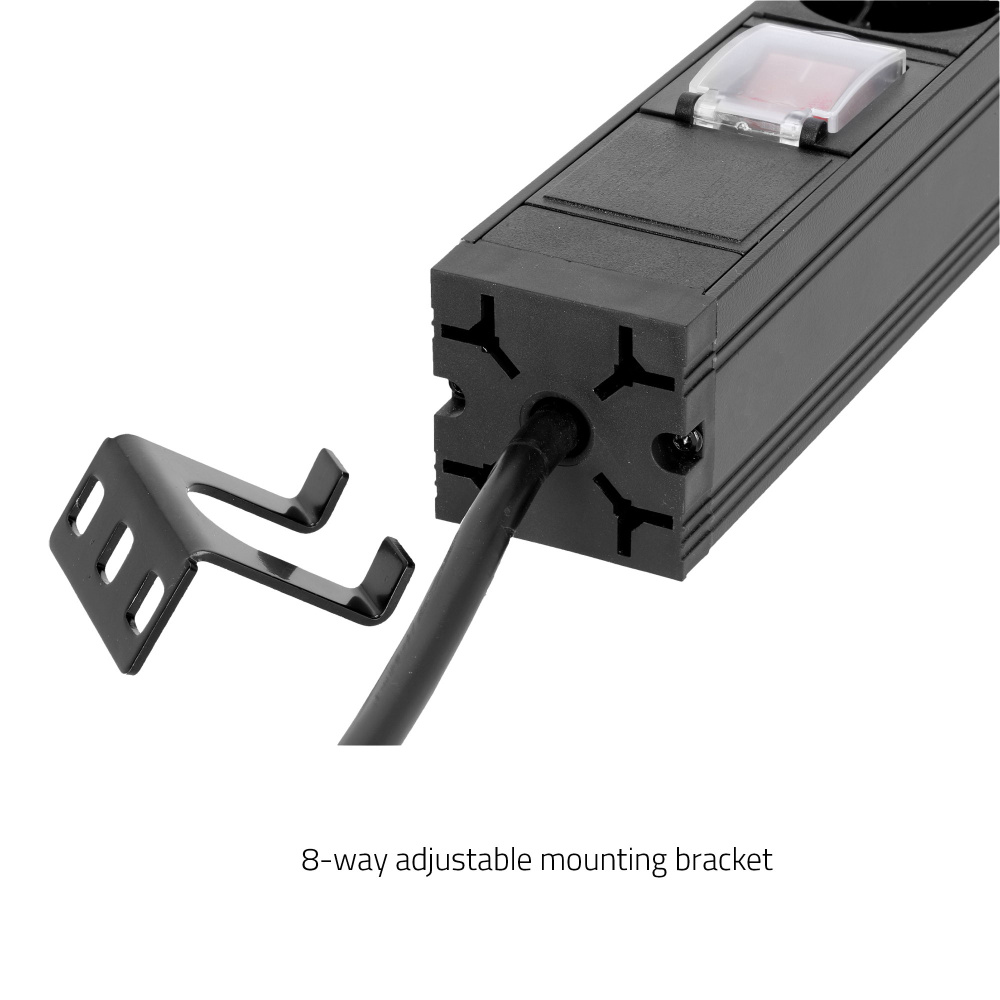

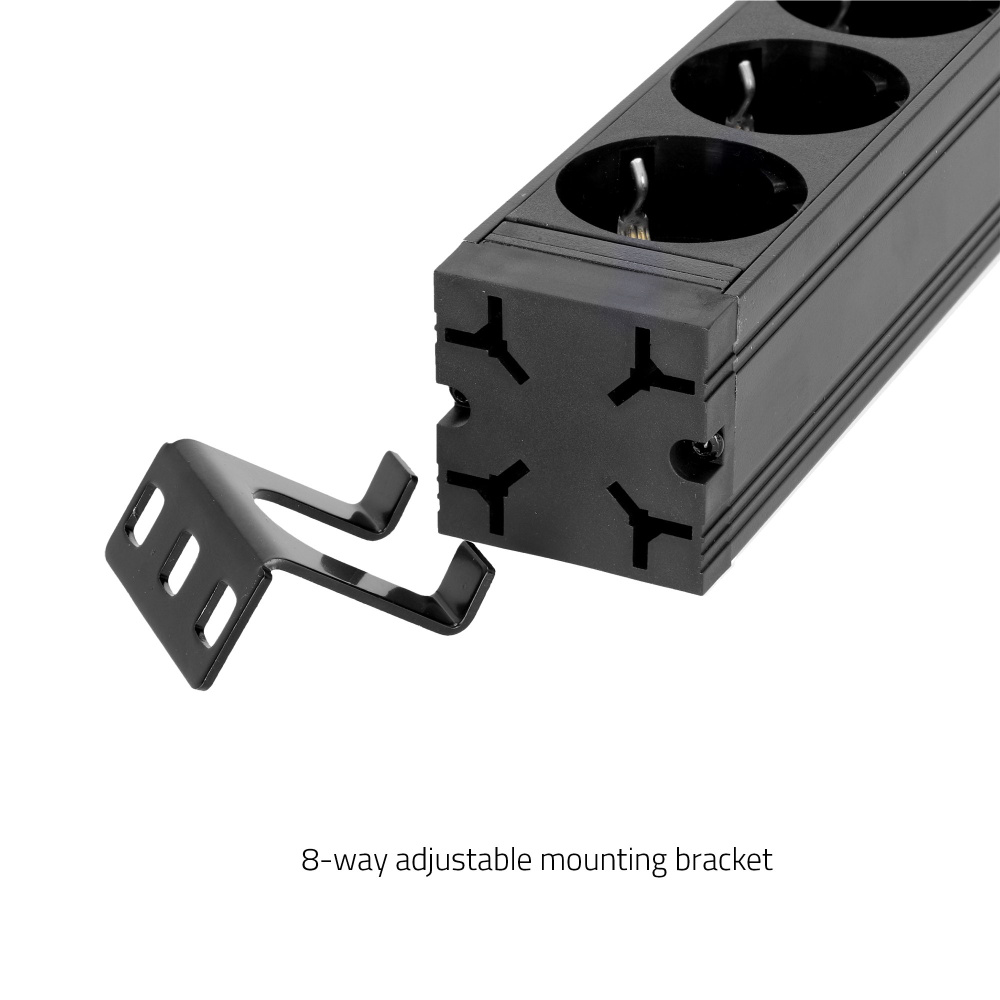

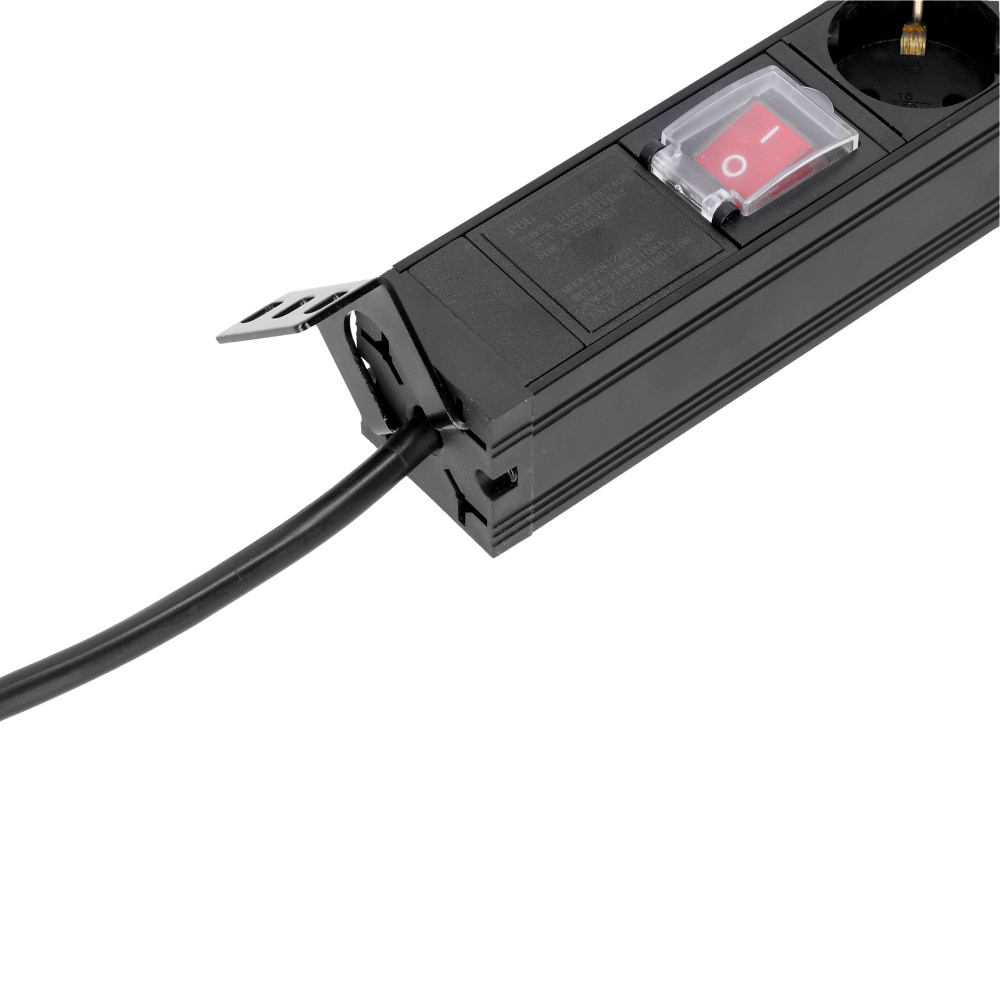

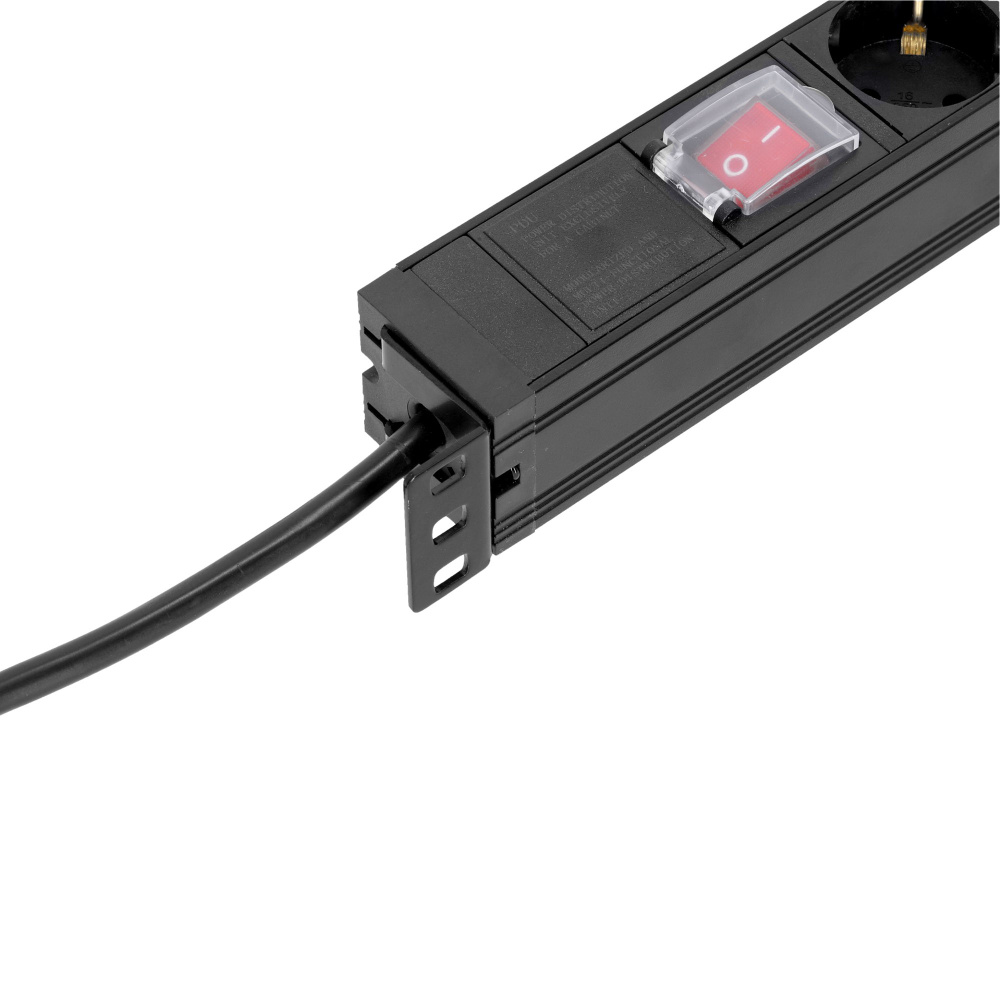

  • With 8-way adjustable mounting brackets

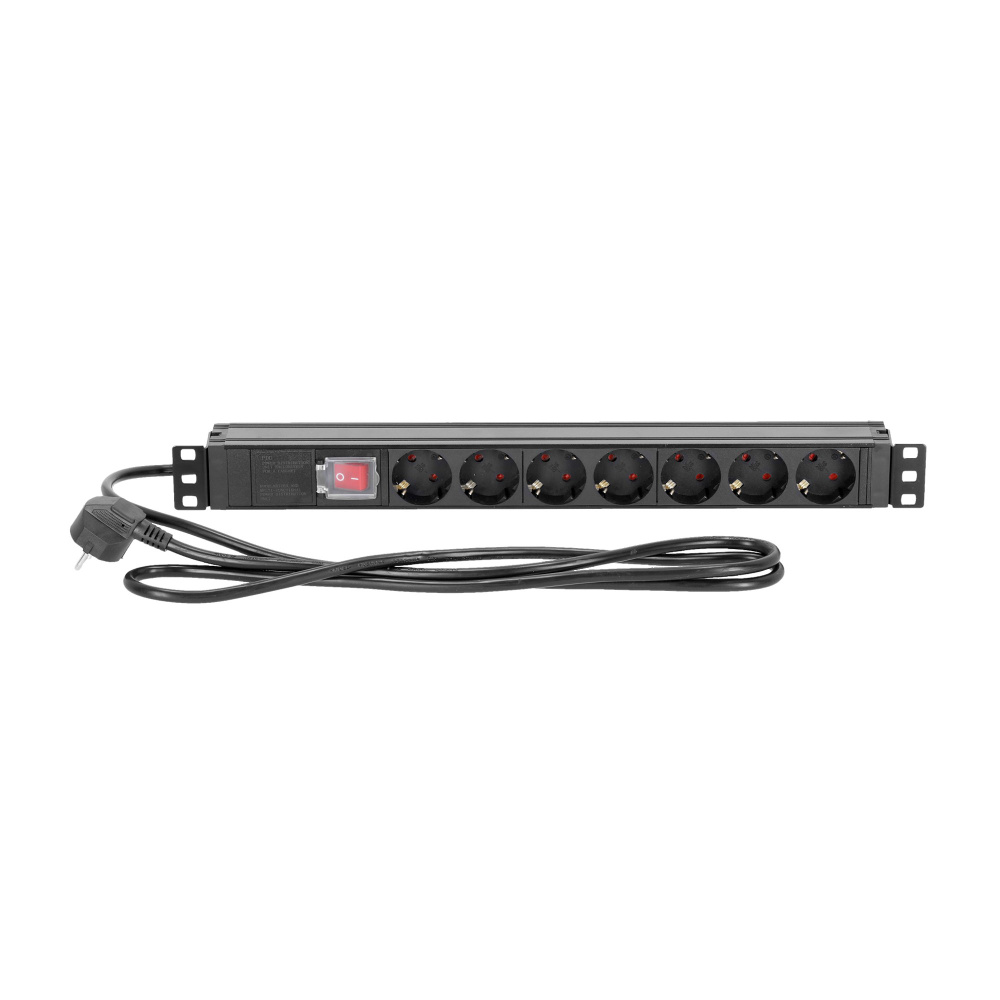

  • 1.4 m PVC cable with angled Schuko plug
AH RACK PDU 7S
AH RACK PDU 7S
19" Power Strip 1U 7-way with switch & protection cap

RRP 44.49 $ / piece

Specifications
Specifications
Description
Downloads/links

Specifications

General
Input connector type
Schuko plug male angled
Output connector type
Schuko socket female
Material
Aluminium, Plastic
Cable length
1.4 m
Cable detachable
No
On/Off switch
Yes
Number of outputs
7
Colour
Black
Operation voltage
100 V AC - 250 V AC / 50 - 60 Hz
Max. Amperage
16 A
Line
Conductor material
OFC (Oxygen-free copper)
Conductor diameter
1,5 mm²
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
6 mm
Dimensions & weight
Width
485 mm
Height
45 mm
Depth
44 mm
Rack width
19"
Rack height
1 U
Installation depth
44 mm
Weight
900 g

Description

The practical solution for your 19" rack. Our 87471 X7 with 8-way adjustable stable mounting ears and 7 Schuko sockets comes with a protective cap for the switch. This prevents the power distributor from being switched off accidentally. The cable routing on the side is supplied with a PVC cable (H05VV-F) with 3 x 1.5 mm² inner conductor and an angled Schuko plug.
